Eagle CRS6560O3D2000 - Chevrolet LS 4340 H-Beam Connecting Rod 6.560in Length (Set of 8)

Eagle CRS6560O3D2000 - Chevrolet LS 4340 H-Beam Connecting Rod 6.560in Length (Set of 8)

Eagle | CRS6560O3D2000
SKU: CFQW-CRS6560O3D2000
$694.99 USD
$770.99 USD $694.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle CRS6560O3D2000 - Chevrolet LS 4340 H-Beam Connecting Rod 6.560in Length (Set of 8)

4340 Rod SB CHEVY H-BEAM Rod

Forged 4340 Steel H-Beam Rods - CHEVROLET LS, 6.460" LENGTH, ARP 2000 BOLTS.

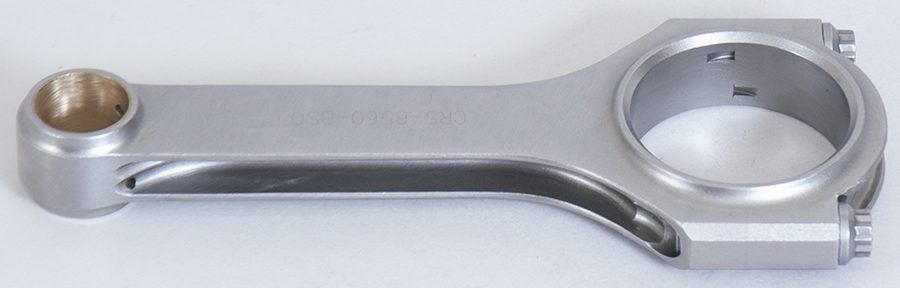

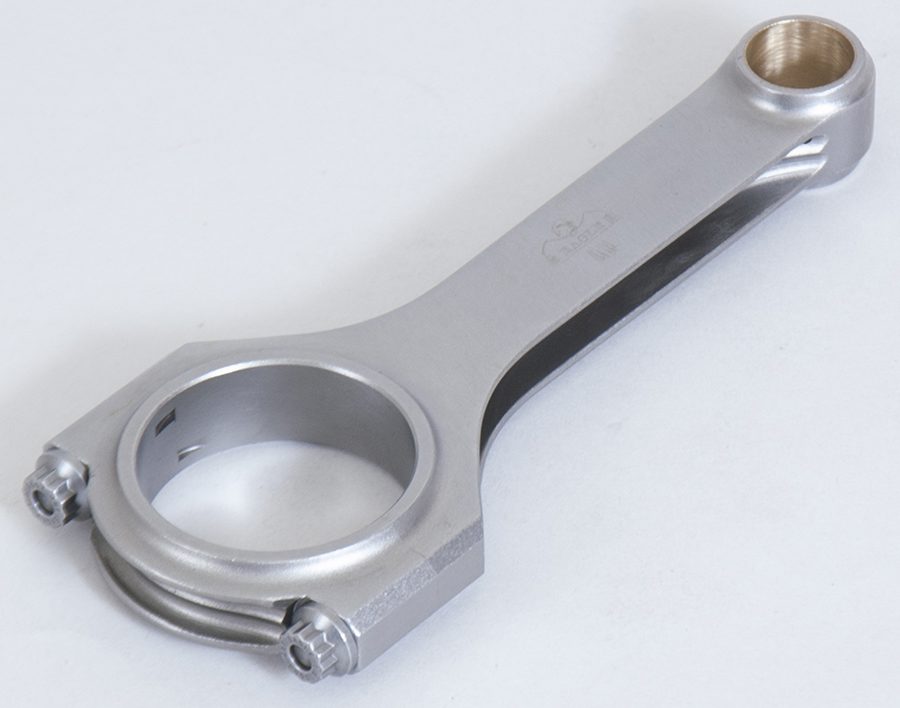

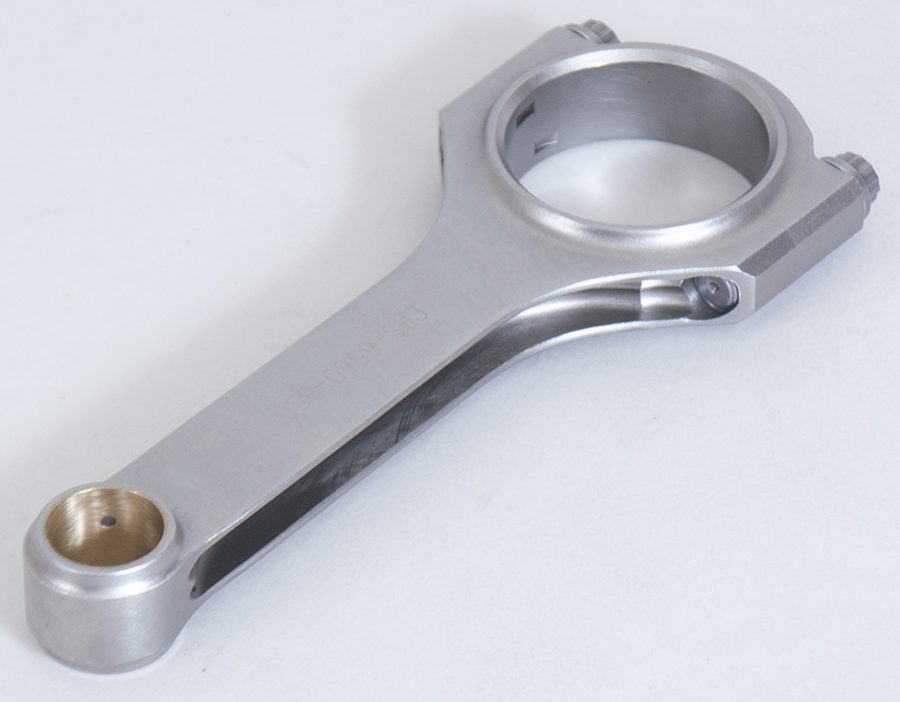

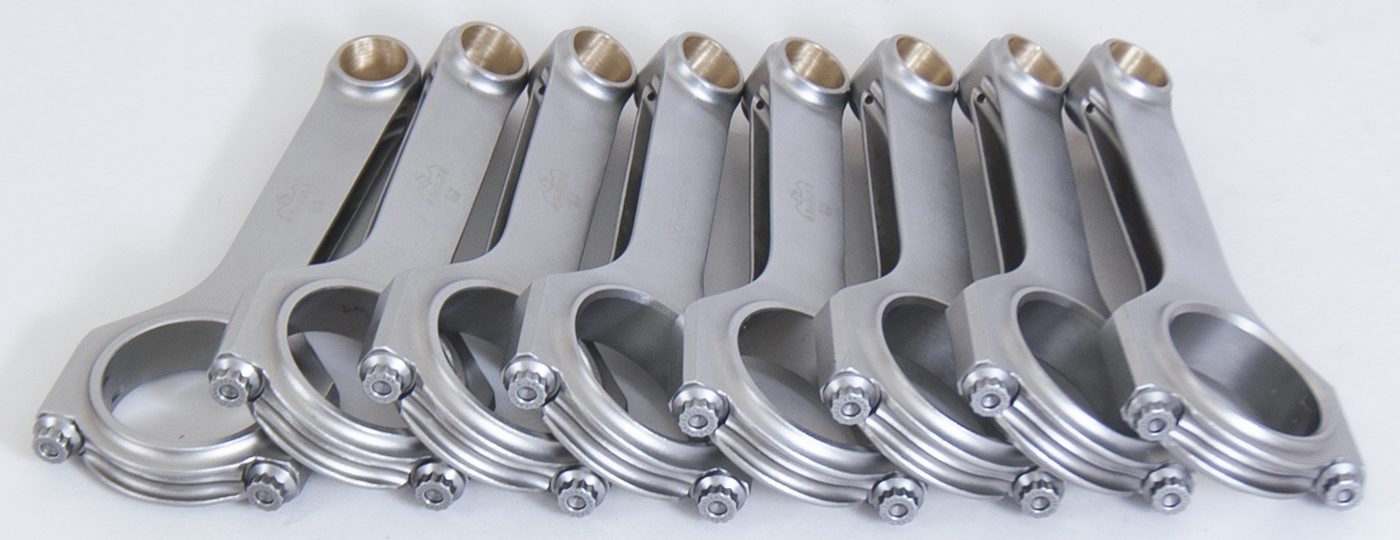

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

Big End Width: 0.94 in
Bolts: 7/16 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.56 in
Housing Bore: 2.225 in
Length Center Bore To Center Bore: 6.56
Material: Forged 4340 Steel
Pin End Width: 0 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
