Eagle - CRS6496N3D

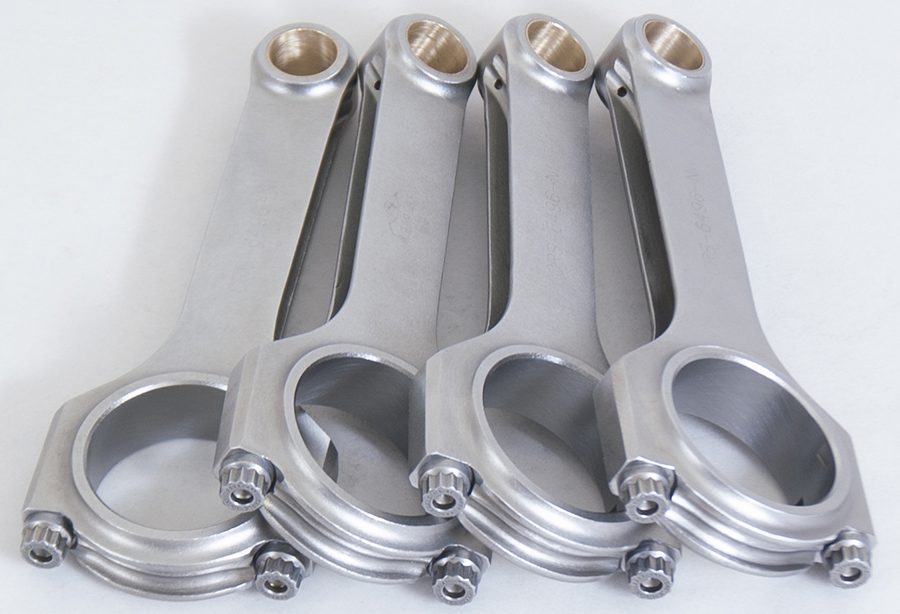

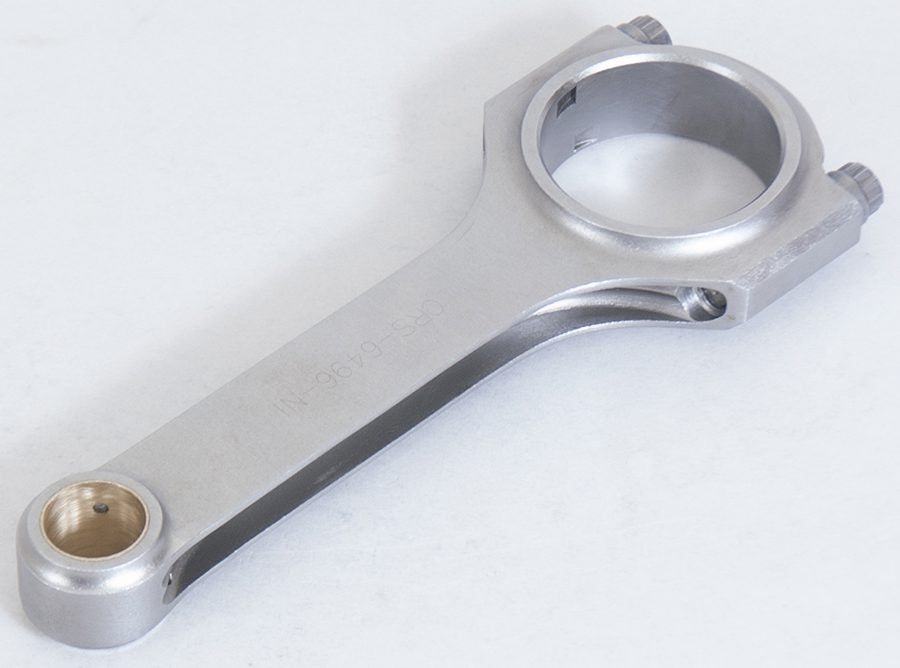

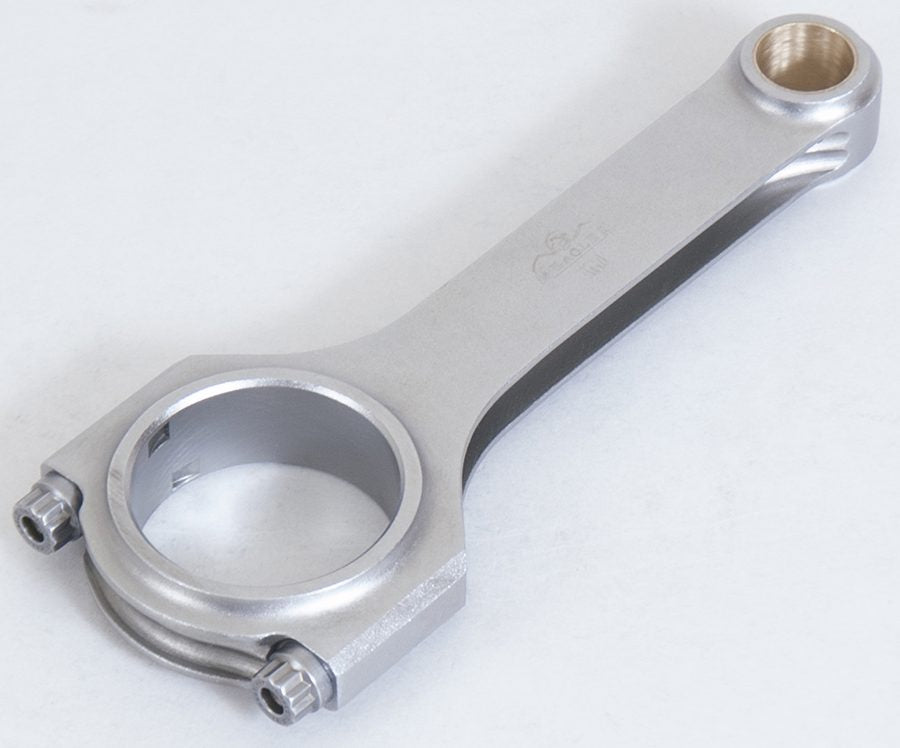

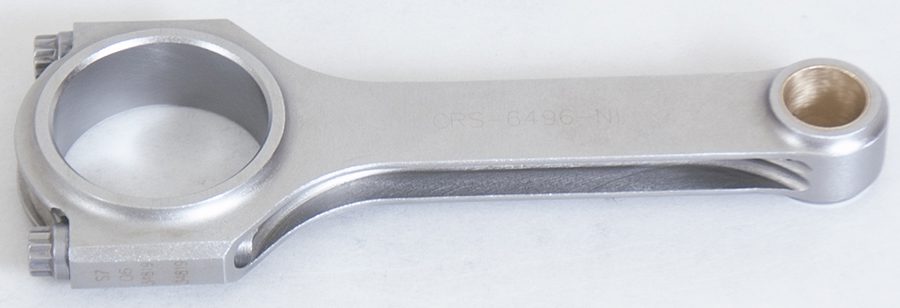

Connecting Rod - H Beam - 6.496 in Long - Bushed - 3/8 in Cap Screws - ARP2000 Bolt - Forged - Steel - Nissan 4-Cylinder - Set of 4
Forged 4340 Steel H-Beam Rods - NISSAN KA24.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.976 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.496 in
Housing Bore: 2.087 in
Length Center Bore To Center Bore: 165
Material: Forged 4340 Steel
Pin End Width: 0.976 in
Pin Size: 0.827 in
Rod Journal: 1.967 in
Year
Make
Model
Submodel
Engine
1991 - 1993, 1995 - 1998
Nissan
240SX
Base
2.4L
1991 - 1992, 1997 - 1998
Nissan
240SX
LE
2.4L
1989 - 1998
Nissan
240SX
SE
2.4L
1989 - 1990
Nissan
240SX
XE
2.4L
1993 - 2001
Nissan
Altima
GLE
2.4L
1993 - 2001
Nissan
Altima
GXE
2.4L
1993 - 2001
Nissan
Altima
SE
2.4L
1993 - 2001
Nissan
Altima
XE
2.4L
1990
Nissan
Axxess
SE
2.4L
1990
Nissan
Axxess
XE
2.4L
1990 - 1994
Nissan
D21
Base
2.4L
1990 - 1994
Nissan
D21
Base
3.0L
1994
Nissan
D21
XE
2.4L
1994
Nissan
D21
XE
3.0L
1998, 2002 - 2003
Nissan
Frontier
Base
2.4L
1995 - 1997
Nissan
Pickup
Base
2.4L
1996 - 1997
Nissan
Pickup
SE
2.4L
1995 - 1997
Nissan
Pickup
XE
2.4L
1995
Nissan
Pickup
XE
3.0L
1990 - 1992
Nissan
Stanza
GXE
2.4L
