Eagle - CRS6490F3D
Connecting Rod - H Beam - 6.490 in Long - Bushed - 7/16 in Cap Screws - 8740 Bolt - Forged - Steel - Ford FE-Series - Set of 8

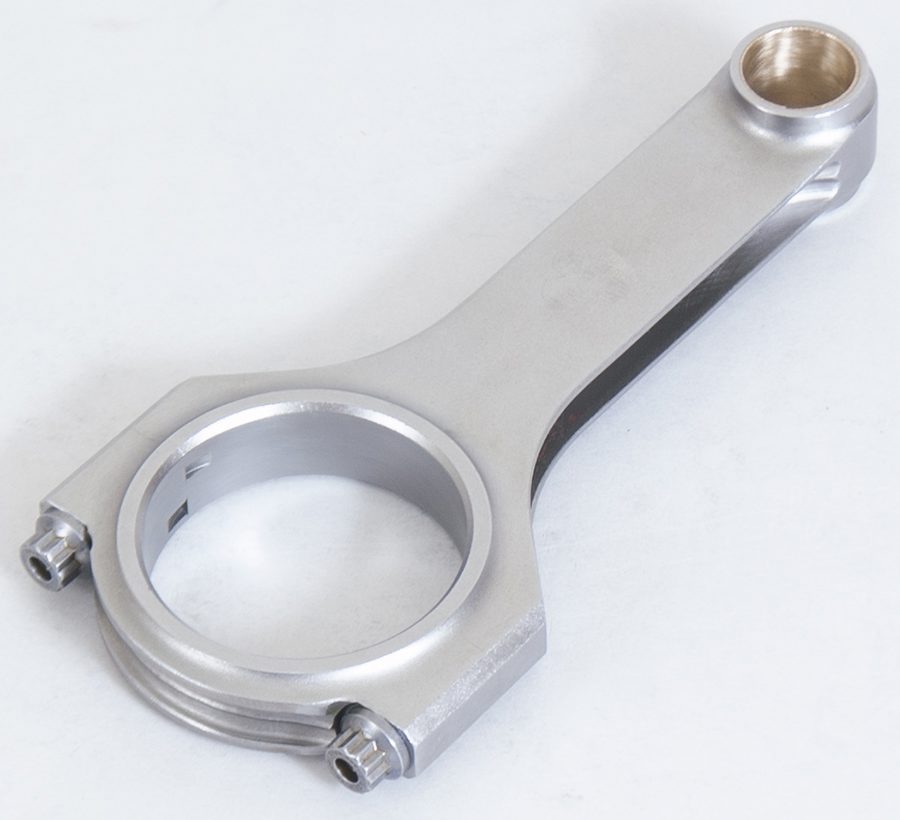

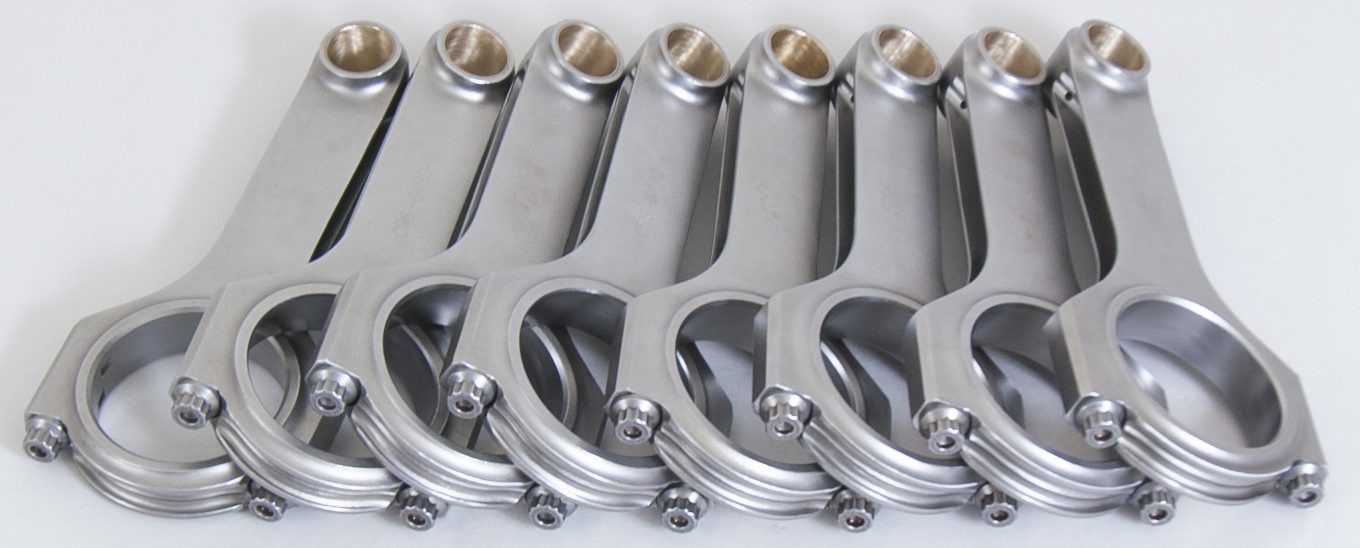

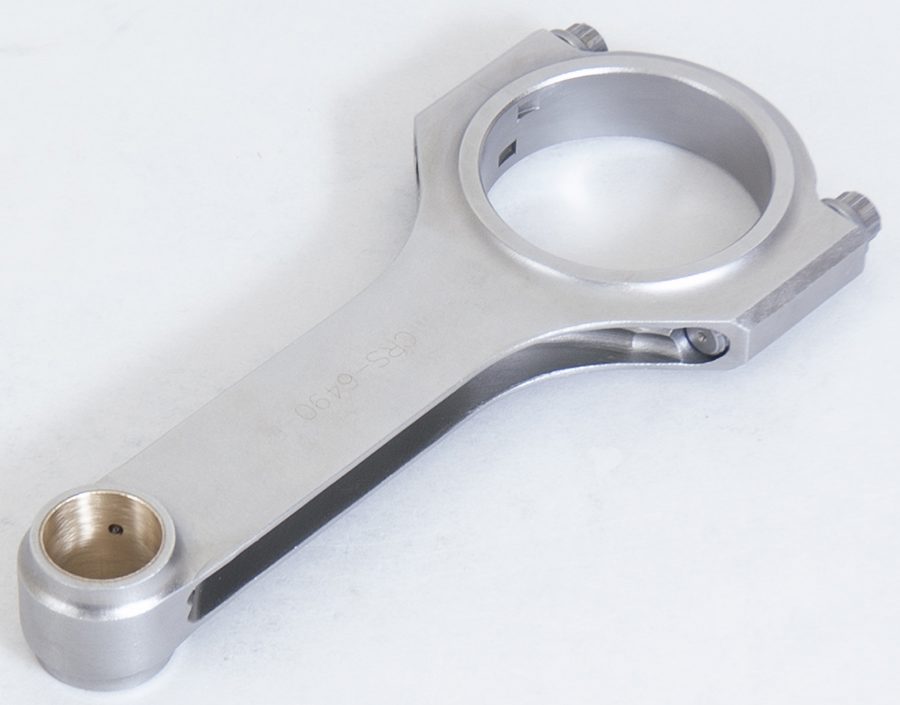

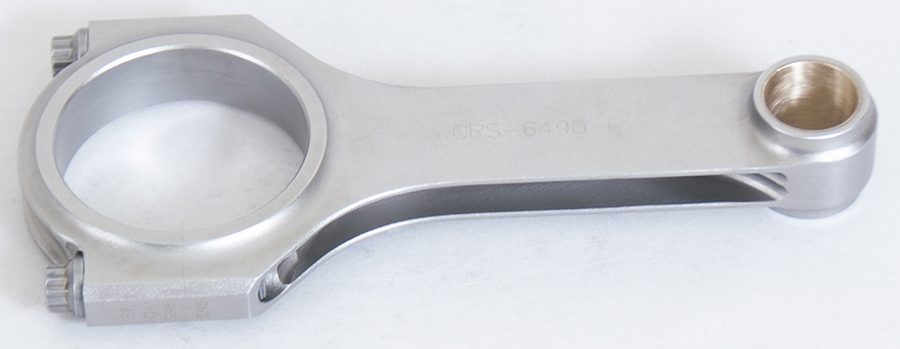

Forged 4340 Steel H-Beam Rods - Ford FE.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Rod Journal: 2.438 in
Big End Width: 0.872 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.49 in
Housing Bore: 2.59 in
Length Center Bore To Center Bore: 6.49
Material: Forged 4340 Steel
Pin End Width: 1.25 in
Pin Size: 0.975 in
