Eagle - CRS6243R3D
4340 H-BEAM Rod CHRY L.M. HEMI .984" PIN

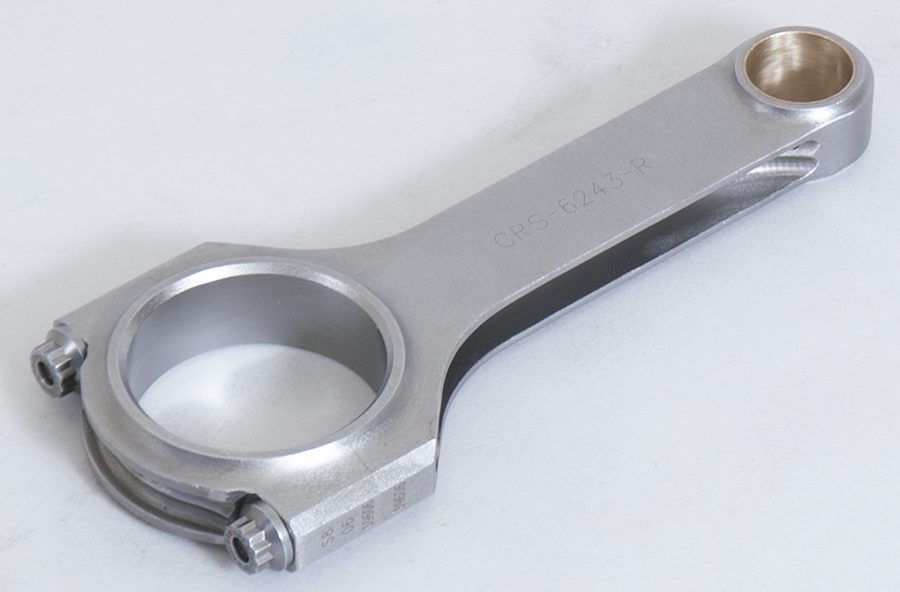

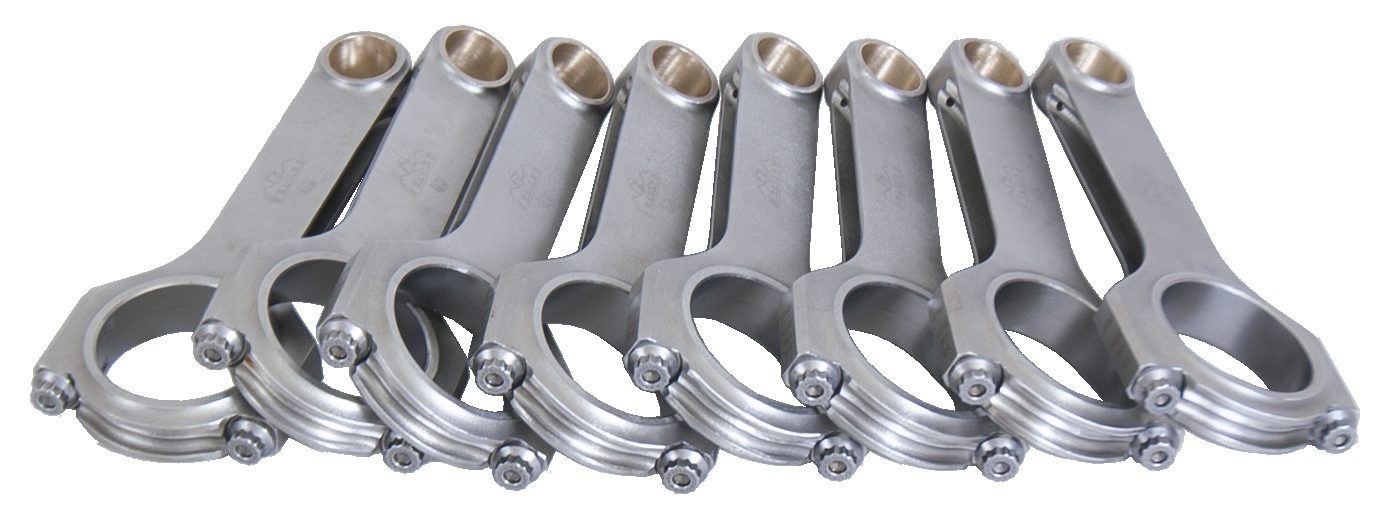

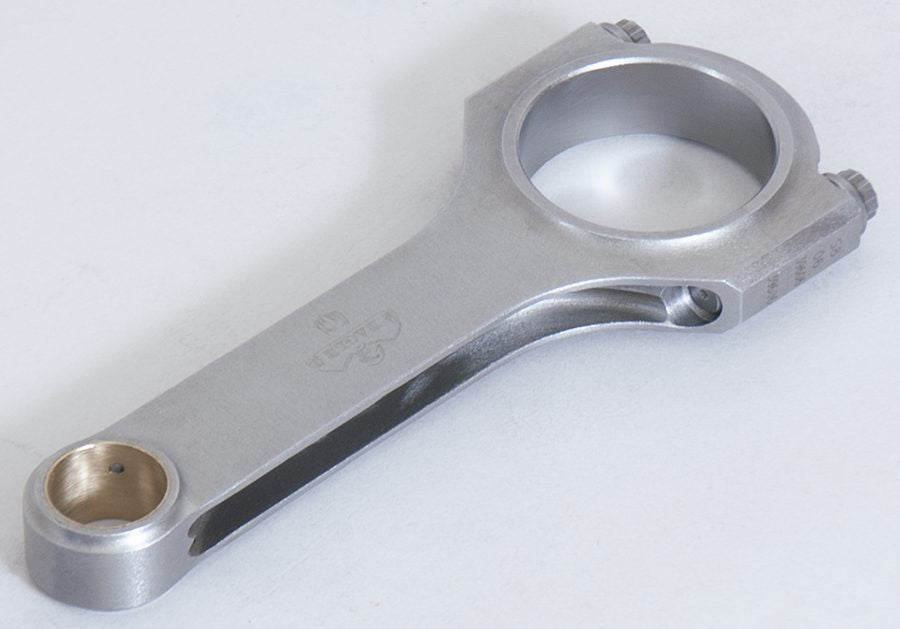

Forged 4340 Steel H-Beam Rods - CHRYSLER 6.1L HEMI, .984" PIN.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Big End Width: 0.932 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.243 in
Housing Bore: 2.242 in
Length Center Bore To Center Bore: 6.243
Material: Forged 4340 Steel
Pin End Width: 0.932 in
Pin Size: 0.984.000 in
Rod Journal: 2.126 in
