Eagle CRS6100M3D-1 - Chevrolet LS1 Gen 3 4340 6.100in .945 Pin H-Beam Connection Rod
Eagle CRS6100M3D-1 - Chevrolet LS1 Gen 3 4340 6.100in .945 Pin H-Beam Connection Rod
SKU: CFQW-CRS6100M3D-1
Regular price
$124.99 USD
Regular price
$137.49 USD
Sale price
$124.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Eagle CRS6100M3D-1 - Chevrolet LS1 Gen 3 4340 6.100in .945 Pin H-Beam Connection Rod
4340 Rod 6.100 LS1 Rod .945 PIN

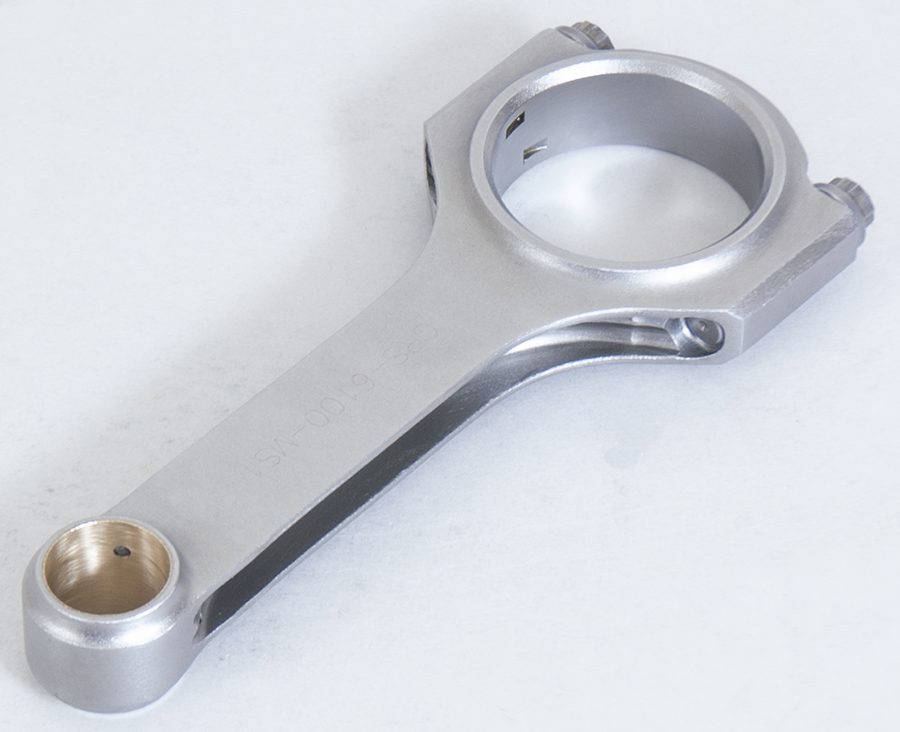

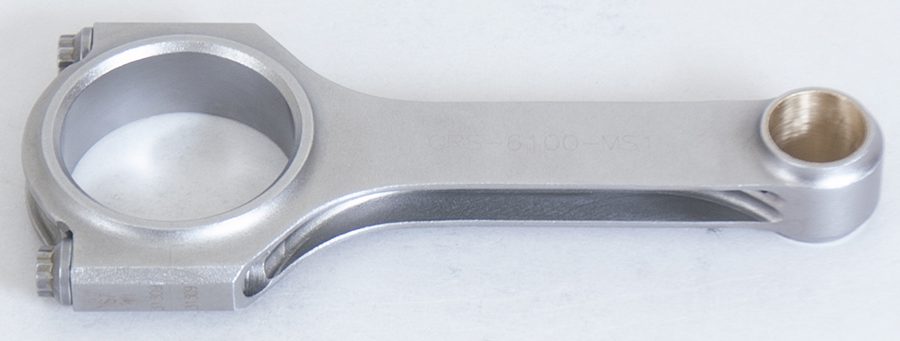

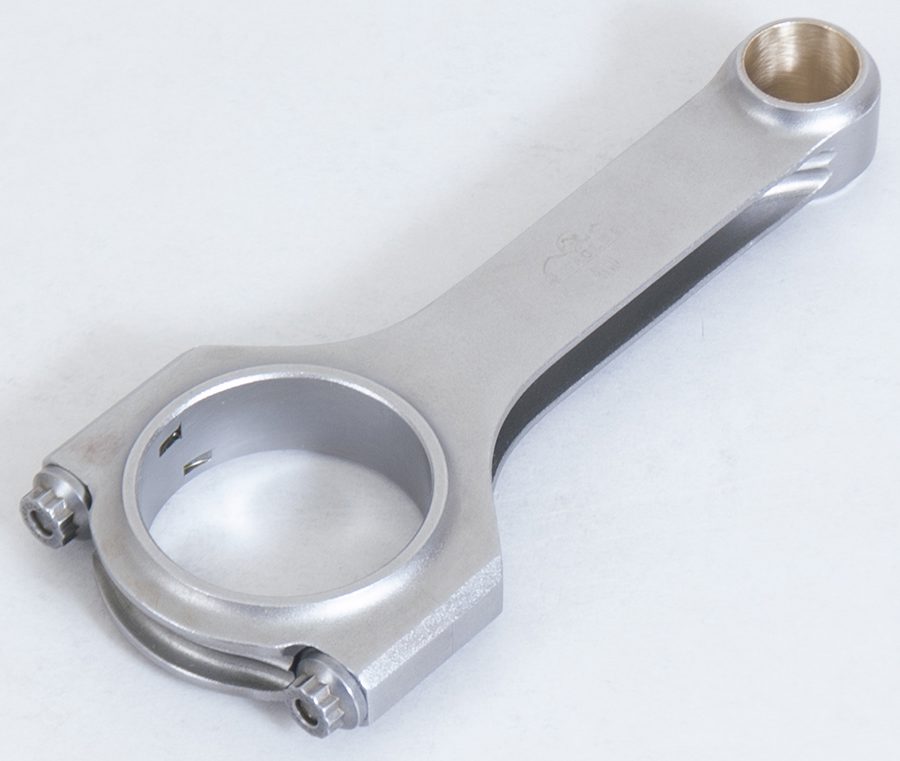

Forged 4340 Steel H-Beam Rod - CHEVROLET LS, .945" PIN.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.94 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.1 in.
Housing Bore: 2.225 in
Length Center Bore To Center Bore: 6.1
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.945 in
Rod Journal: 2.1 in.
