Eagle - CRS6071N3D
4340 Rod NISSAN VG 30 6

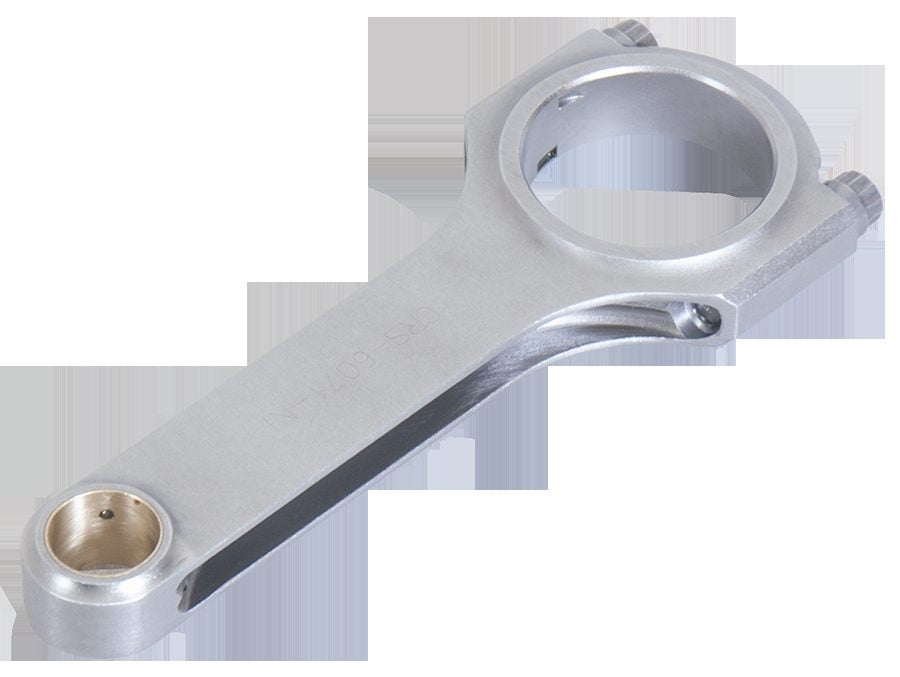

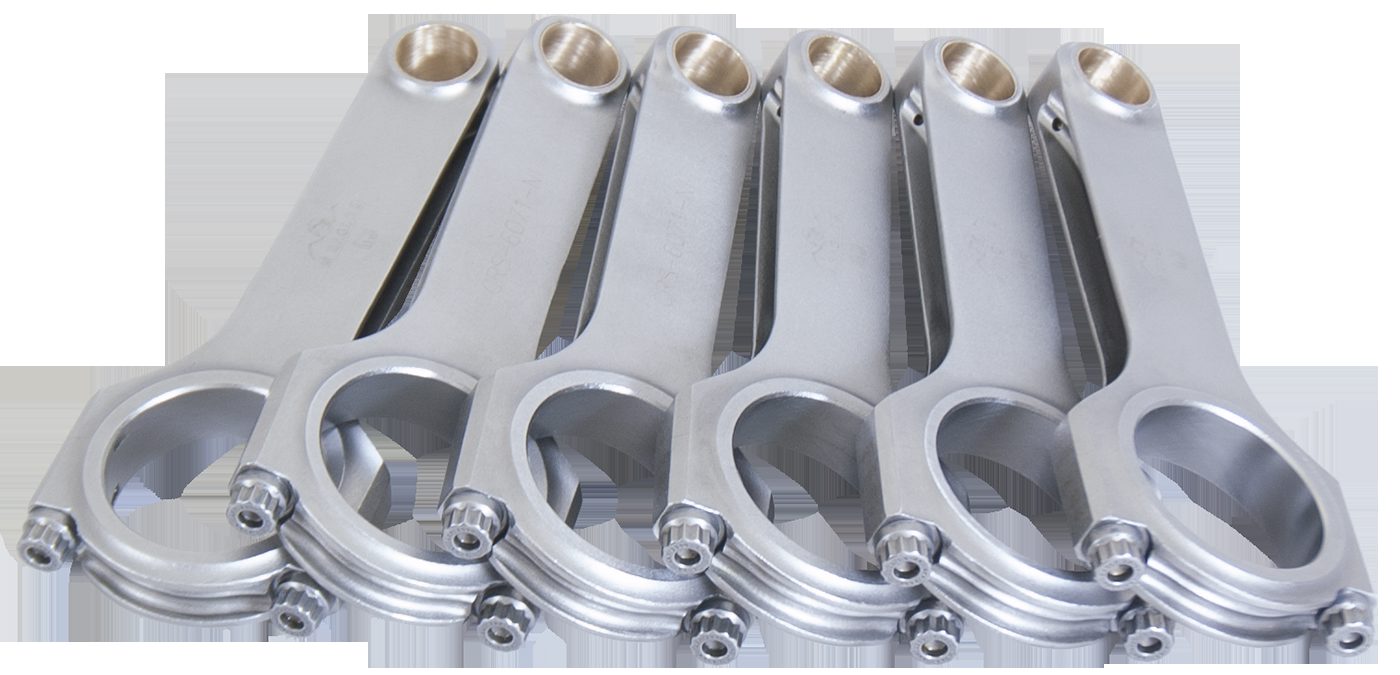

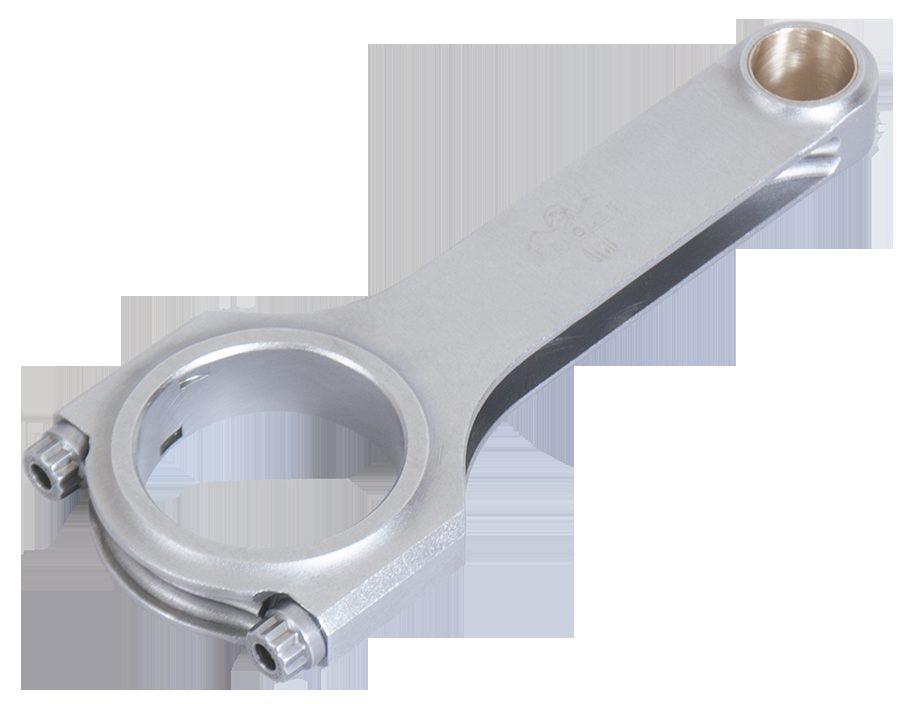

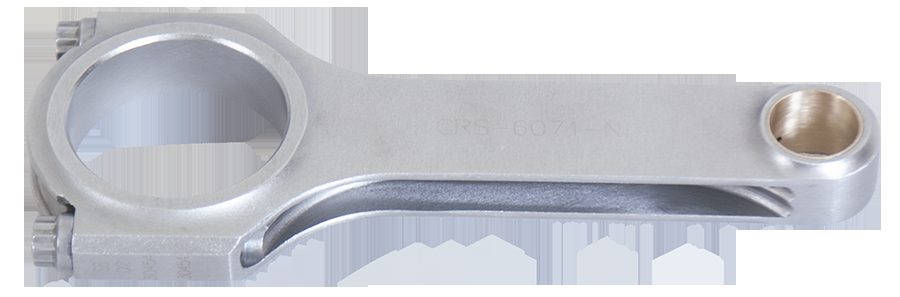

Forged 4340 Steel H-Beam Rods - NISSAN VG30DETT.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.817 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.071 in
Housing Bore: 2.087 in
Length Center Bore To Center Bore: 154.2
Material: Forged 4340 Steel
Pin End Width: 0.86 in
Pin Size: 0.866 in
Rod Journal: 1.967 in
