Eagle - CRS6023A3D
HONDA F20C H-BEAM

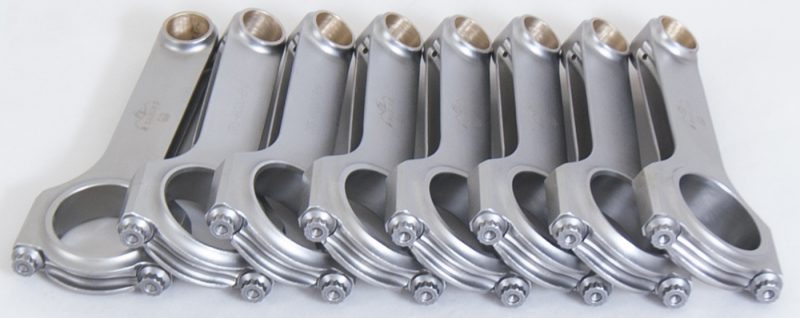

Forged 4340 Steel H-Beam Rods - HONDA F20C.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.941 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.023 in
Housing Bore: 2.008 in
Length Center Bore To Center Bore: 153
Material: Forged 4340 Steel
Pin End Width: 0.941 in
Pin Size: 0.906 in
Rod Journal: 1.889 in
