Eagle - CRS6000B3D2000
Connecting Rod - H Beam - 6.000 in Long - Bushed - 7/16 in Cap Screws - ARP2000 Bolt - Forged - Steel - Small Block Chevy - Set of 8

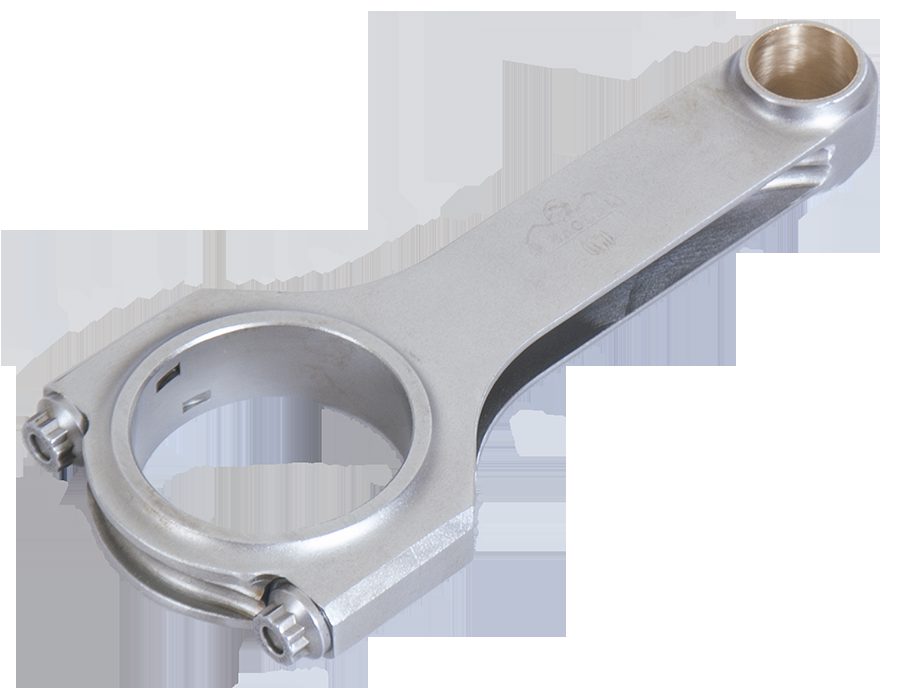

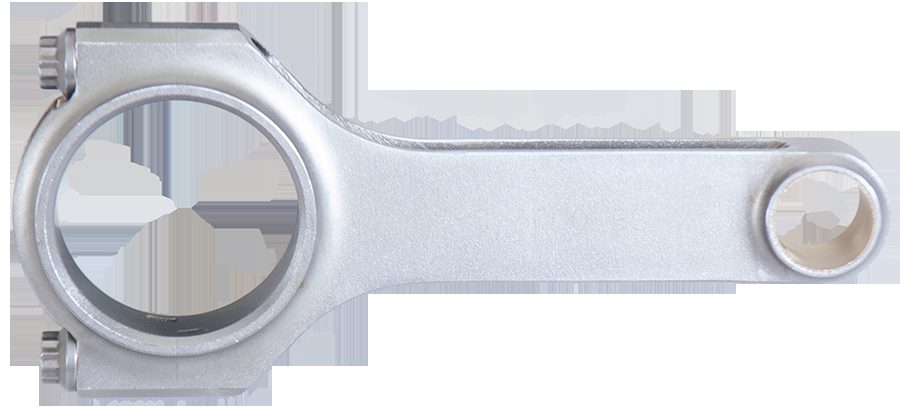

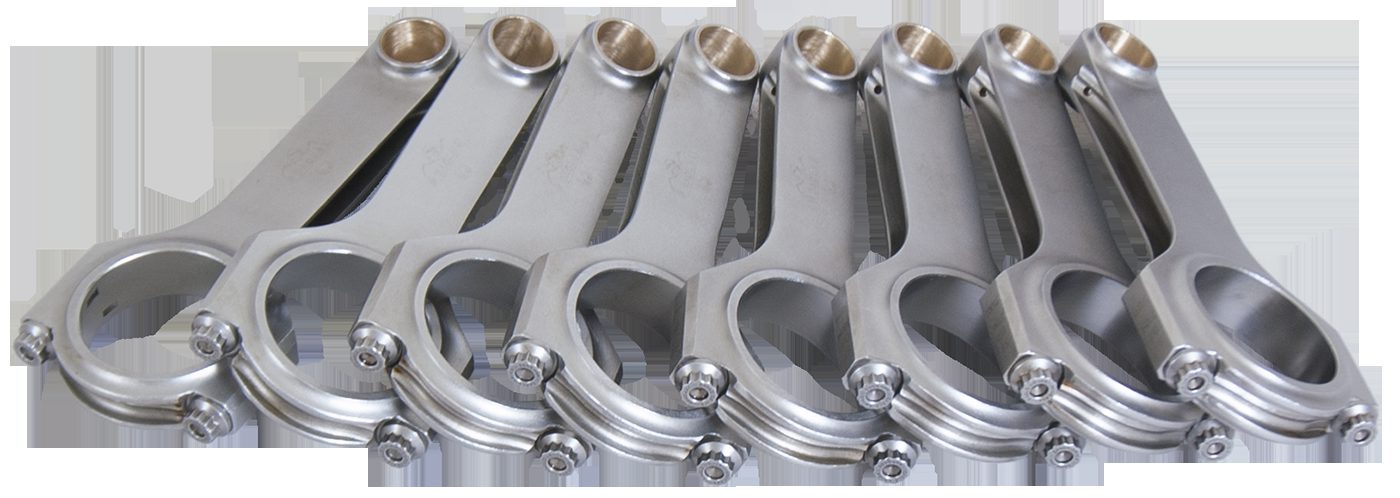

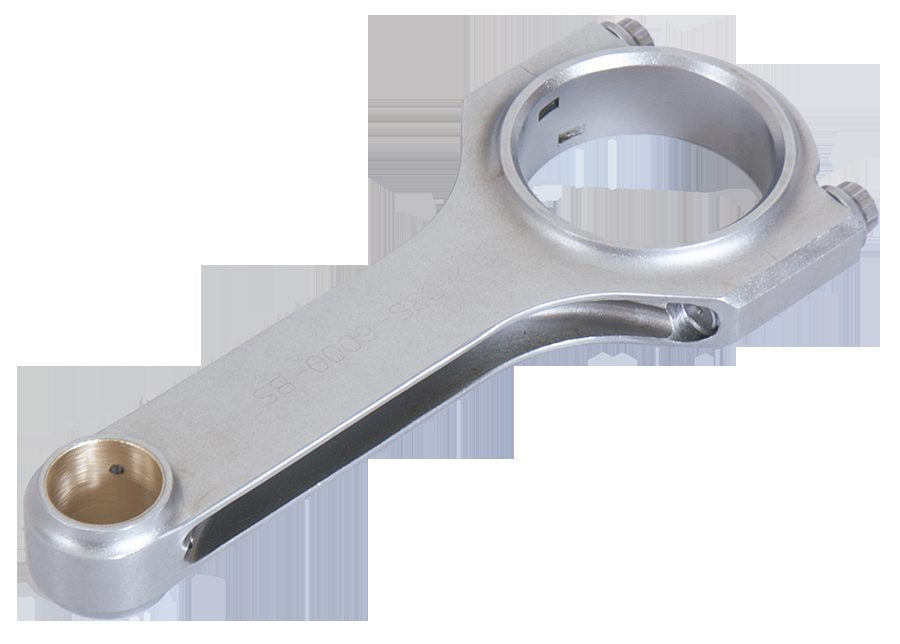

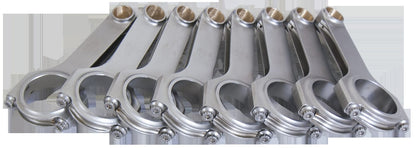

Forged 4340 Steel H-Beam Rods - CHEVROLET SMALL BLOCK, 6.000" LENGTH, ARP 2000 BOLTS.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.94 in
Bolts: 7/16 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 6 in
Housing Bore: 2.225 in
Length Center Bore To Center Bore: 6
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
