Eagle - CRS5945D3D
Connecting Rod - H Beam - 5.945 in Long - Bushed - 3/8 in Cap Screws - ARP2000 Bolt - Forged - Steel - Mopar 4-Cylinder - Set of 4

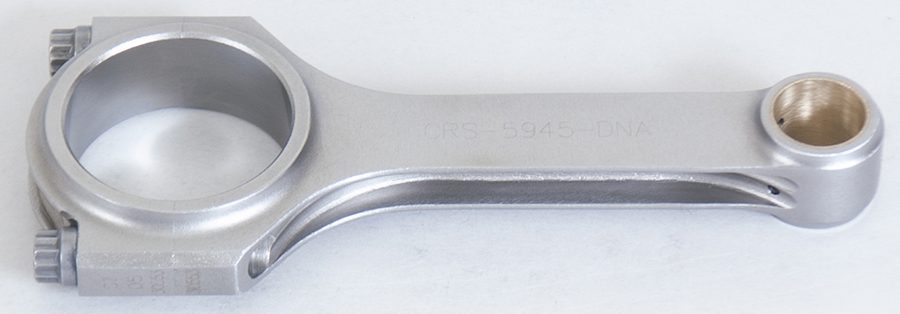

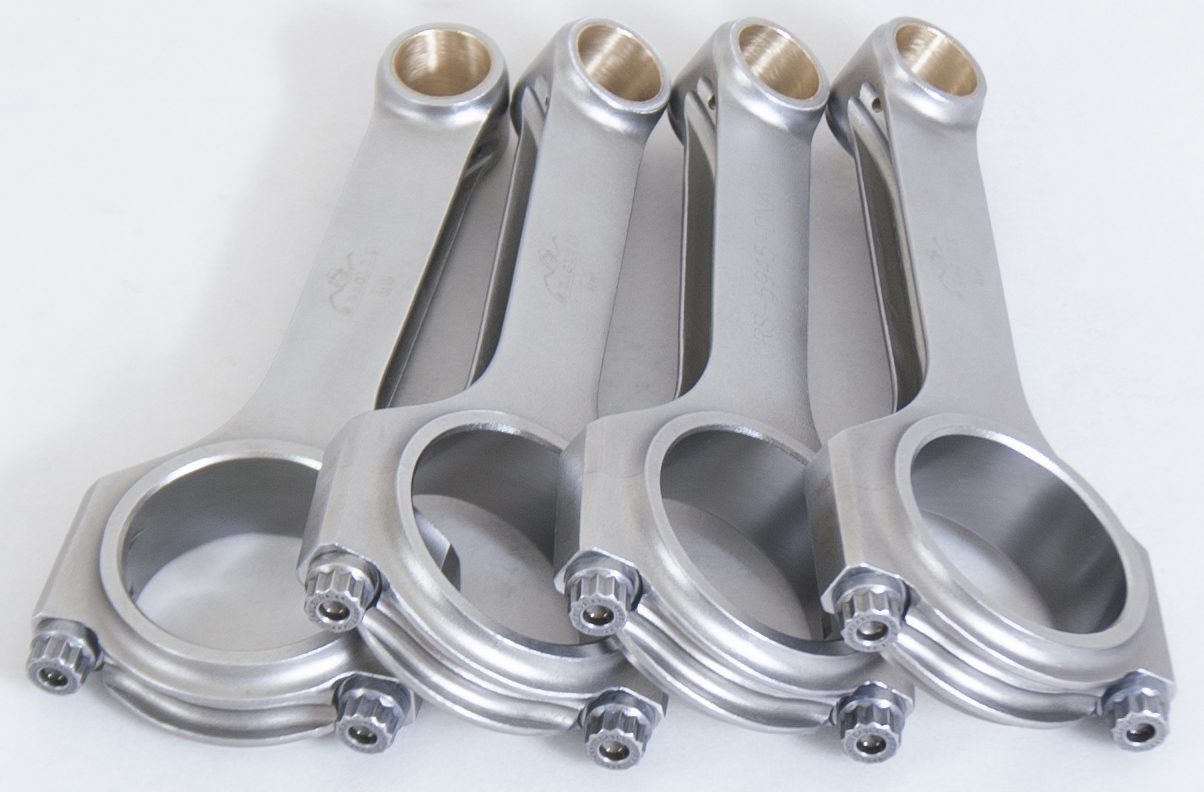

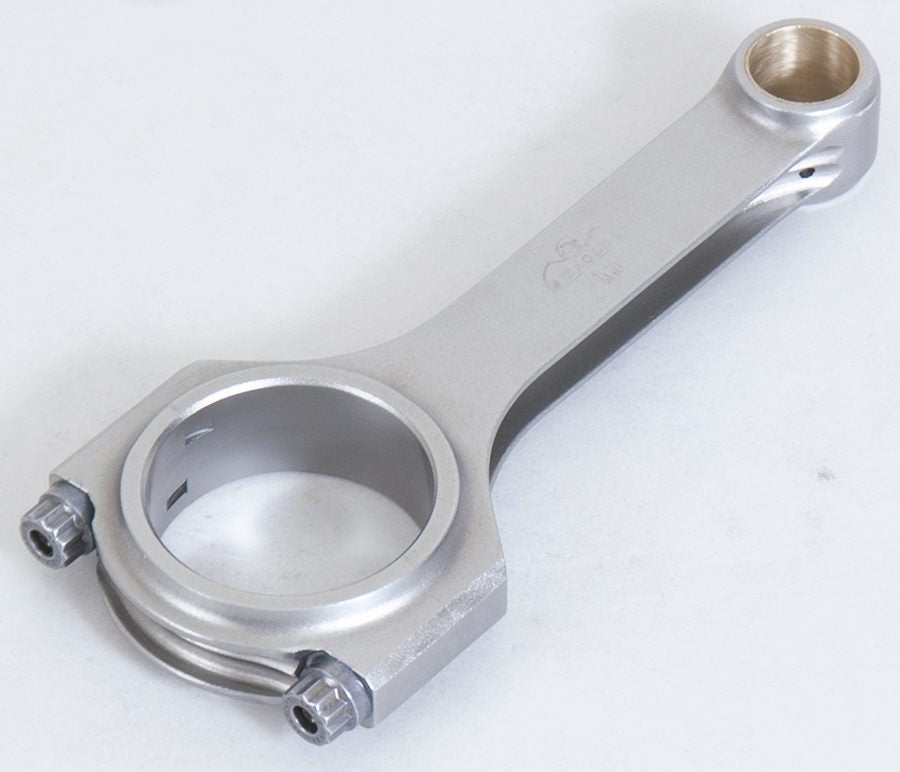

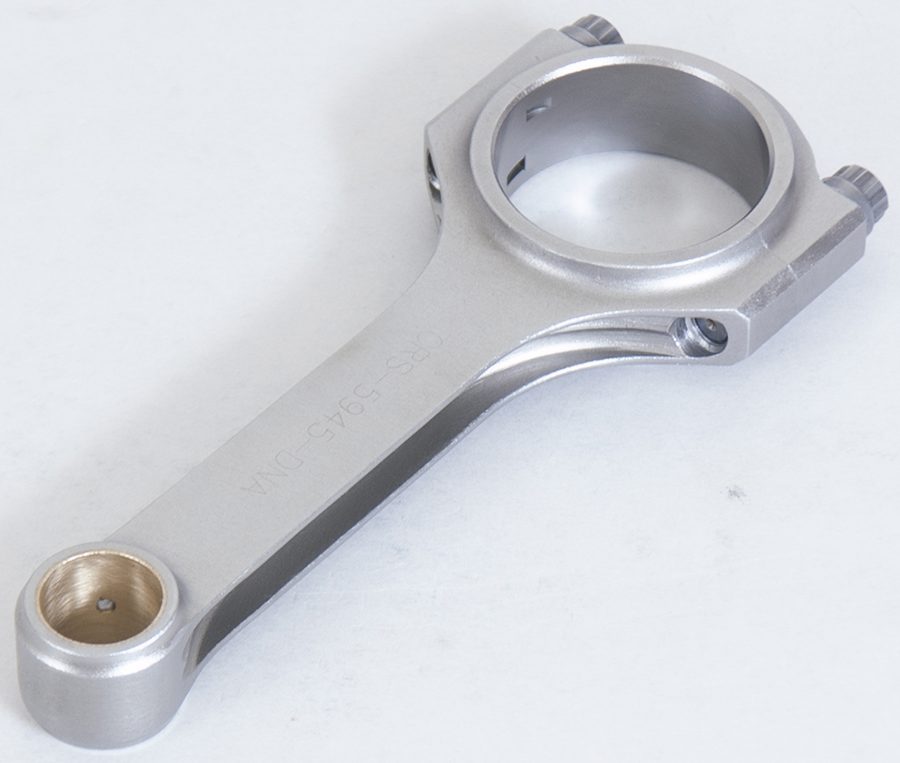

Forged 4340 Steel H-Beam Rods - DODGE 2.4L TURBO.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 1.016 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.945 in
Housing Bore: 2.0865 in
Length Center Bore To Center Bore: 5.945
Material: Forged 4340 Steel
Pin End Width: 1.016 in
Pin Size: 0.866 in
Rod Journal: 1.968 in
