Eagle CRS5927M23D-1 - 06-09 Mazdaspeed 3/6 MZR 22.5mm Pin H-Beam Connecting Rod - Single
Eagle CRS5927M23D-1 - 06-09 Mazdaspeed 3/6 MZR 22.5mm Pin H-Beam Connecting Rod - Single
SKU: CFQW-CRS5927M23D-1
Regular price
$139.99 USD
Regular price
$153.99 USD
Sale price
$139.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Eagle CRS5927M23D-1 - 06-09 Mazdaspeed 3/6 MZR 22.5mm Pin H-Beam Connecting Rod - Single
4340 Rod MAZDA MZR 2.3 FACTORY PSTN PIN

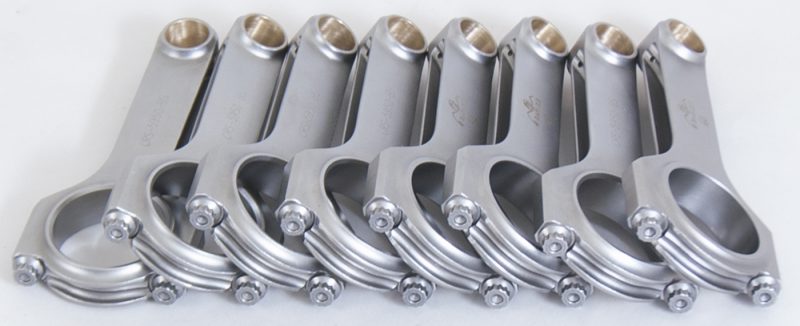

Forged 4340 Steel H-Beam Rod - MAZDA MZR 2.3L DI TURBO.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.86 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.927 in
Housing Bore: 2.165 in
Length Center Bore To Center Bore: 150.5
Material: Forged 4340 Steel
Pin End Width: 0.86 in
Pin Size: 0.886 in
Rod Journal: 0 in
