Eagle CRS5819T3D-1 - Toyota 22R H-Beam Connecting Rod (Single Rod)
Eagle CRS5819T3D-1 - Toyota 22R H-Beam Connecting Rod (Single Rod)
SKU: CFQW-CRS5819T3D-1
Regular price
$133.99 USD
Regular price
$147.39 USD
Sale price
$133.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Eagle CRS5819T3D-1 - Toyota 22R H-Beam Connecting Rod (Single Rod)
4340 Rod 5.819" Toyota

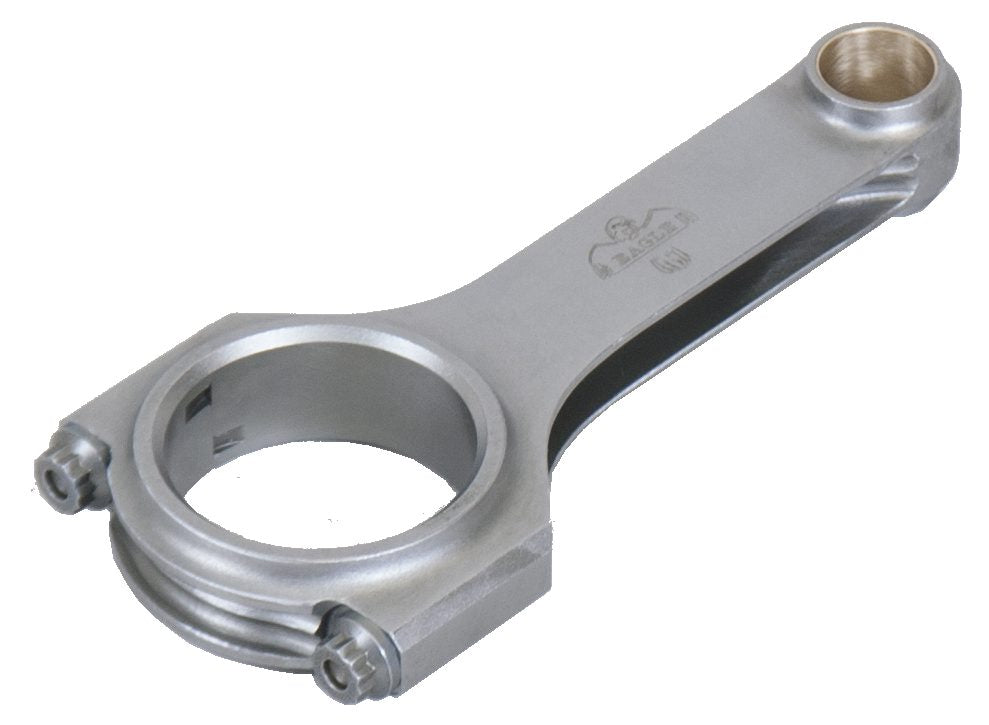

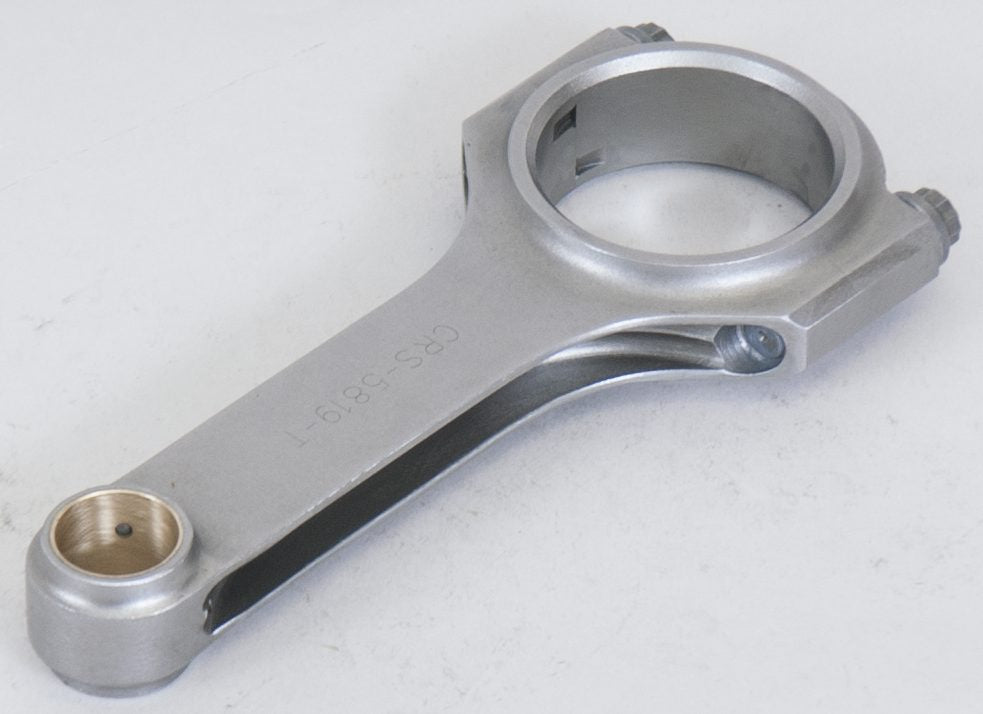

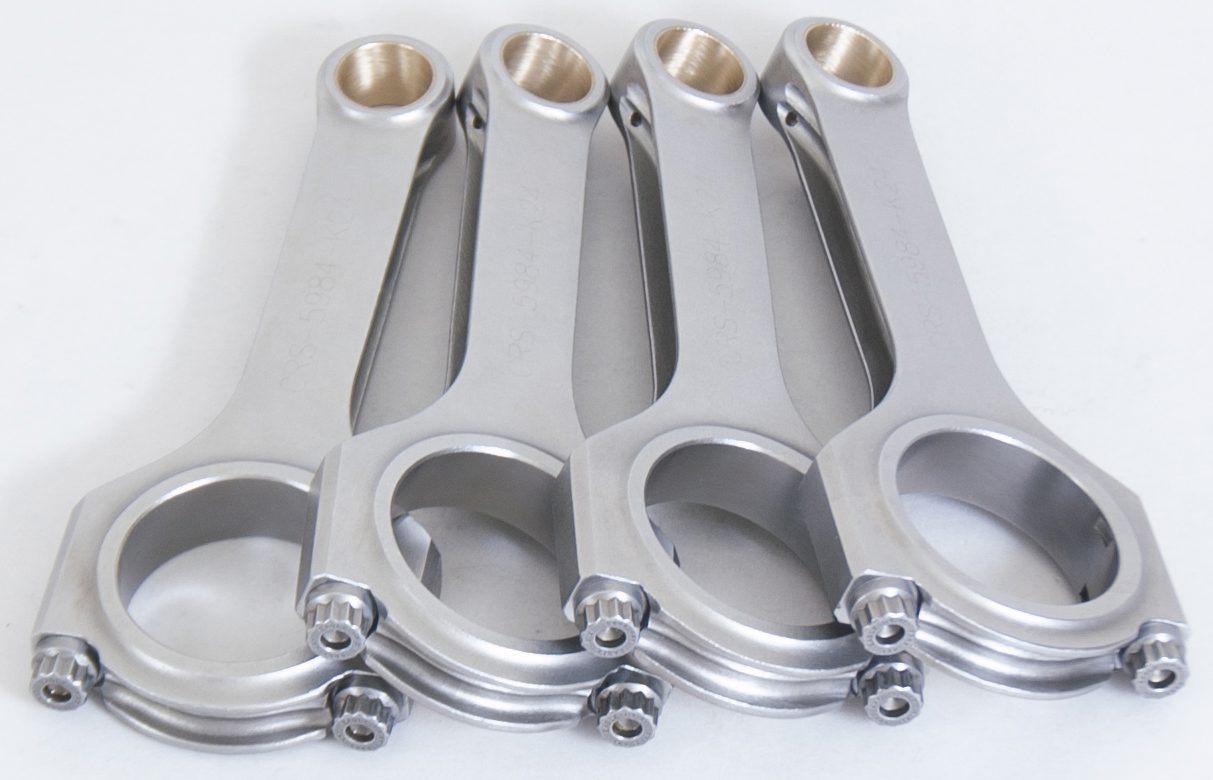

Forged 4340 Steel H-Beam Rod - TOYOTA 22R.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 1.091 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.819 in
Housing Bore: 2.205 in
Length Center Bore To Center Bore: 147.8
Material: Forged 4340 Steel
Pin End Width: 1.0915 in
Pin Size: 0.866 in
Rod Journal: 2.086 in
