Eagle CRS5806CXD-1 - Chevy QD4 2.3L Extreme Duty Connecting Rod (Single)

Eagle CRS5806CXD-1 - Chevy QD4 2.3L Extreme Duty Connecting Rod (Single)

Eagle | CRS5806CXD-1
SKU: CFQW-CRS5806CXD-1
$239.99 USD
$253.99 USD $239.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle CRS5806CXD-1 - Chevy QD4 2.3L Extreme Duty Connecting Rod (Single)

2.3L CHEVY QD4 EXTREME DUTY Rod

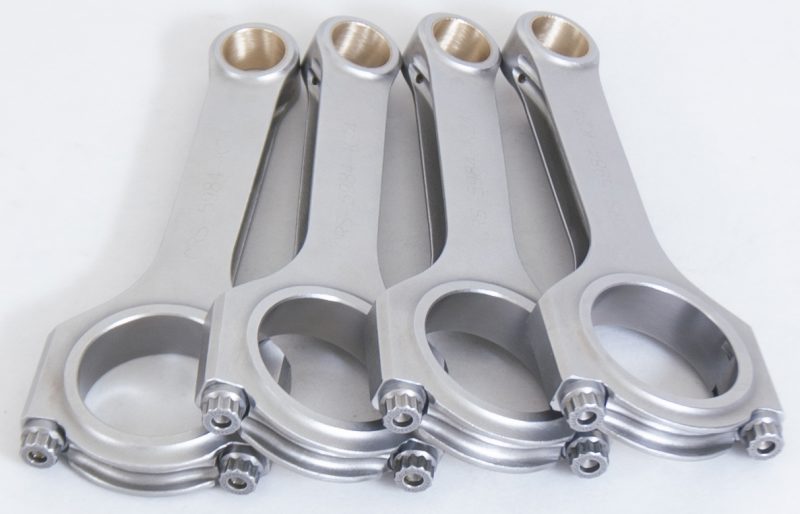

Forged 4340 Steel EXTREME DUTY H-Beam Rod - CHEVROLET 2.3L QUAD4.

Forged 4340 steel H-Beam extreme duty connecting rods are forged from a two-piece forging and feature a fully machined, shot-peened, and polished surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for for the most extreme applications.

Big End Width: 1.086 in
Bolts: 3/8 in Arp Custom Age 625+
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.806 in
Housing Bore: 2.015 in
Material: Forged 4340 Steel
Pin End Width: 0.875 in
Pin Size: 0.866 in
Rod Journal: 1.889 in
