Eagle CRS5751T3D-1 - Toyota 1UZFE H-Beam Connecting Rod (Single Rod)
Eagle CRS5751T3D-1 - Toyota 1UZFE H-Beam Connecting Rod (Single Rod)
SKU: CFQW-CRS5751T3D-1
Regular price
$133.99 USD
Regular price
$147.39 USD
Sale price
$133.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Eagle CRS5751T3D-1 - Toyota 1UZFE H-Beam Connecting Rod (Single Rod)

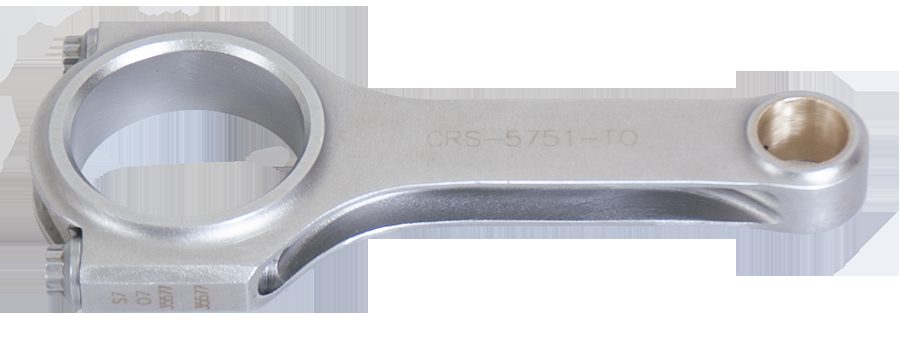

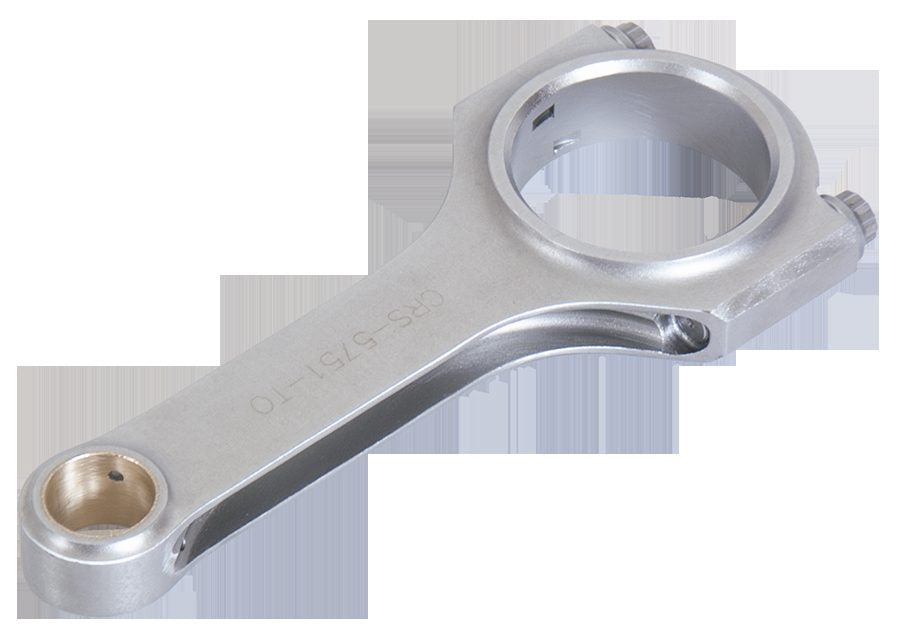

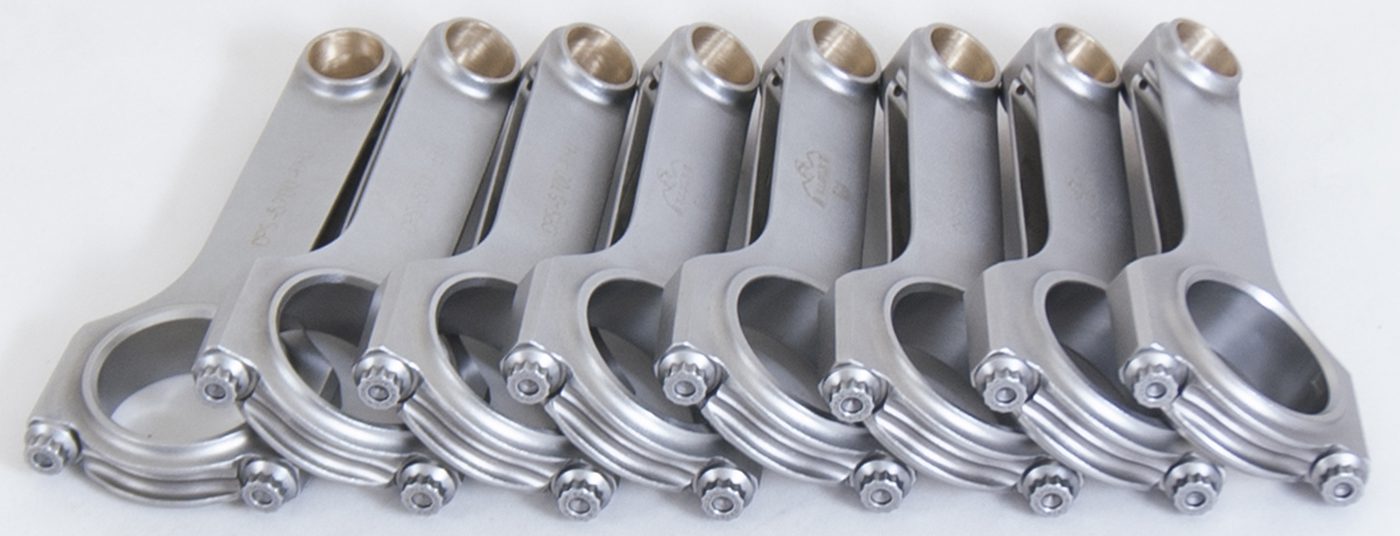

4340 H-BEAM Rod Toyota 1UZFE
Forged 4340 Steel H-Beam Rod - TOYOTA 1UZ.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.902 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.751 in
Housing Bore: 2.166 in
Length Center Bore To Center Bore: 146
Material: Forged 4340 Steel
Pin End Width: 0.83 in
Pin Size: 0.866 in
Rod Journal: 2.047 in
