Eagle CRS5710C3D - Chevy Quad 4 Ld9 Connecting Rods (Set of 4)

Eagle CRS5710C3D - Chevy Quad 4 Ld9 Connecting Rods (Set of 4)

Eagle | CRS5710C3D
SKU: CFQW-CRS5710C3D
$381.99 USD
$406.99 USD $381.99 USD
Sale Sold out
Shipping calculated at checkout.

4 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle CRS5710C3D - Chevy Quad 4 Ld9 Connecting Rods (Set of 4)

Connecting Rod - H Beam - 5.710 in Long - Bushed - 3/8 in Cap Screws - ARP2000 Bolt - Forged - Steel - GM Quad 4.000 - Set of 4

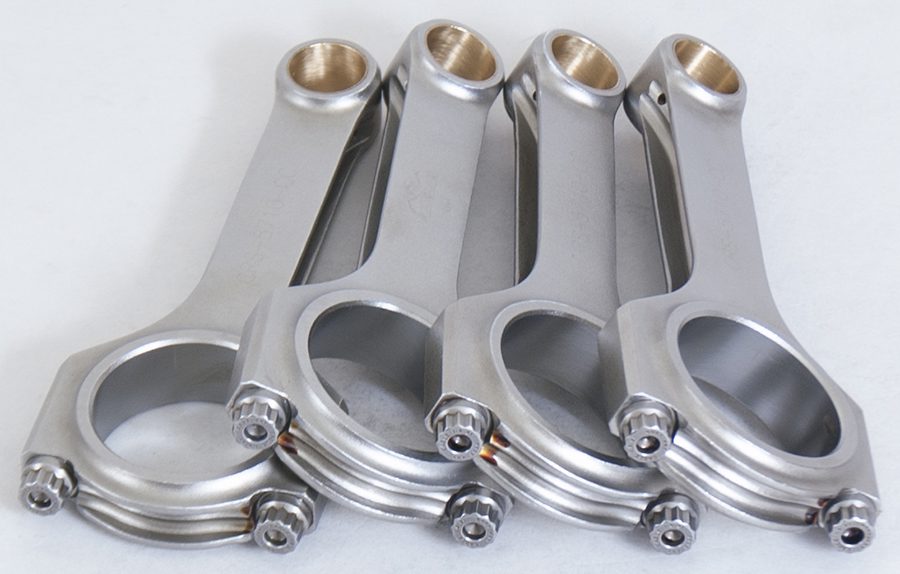

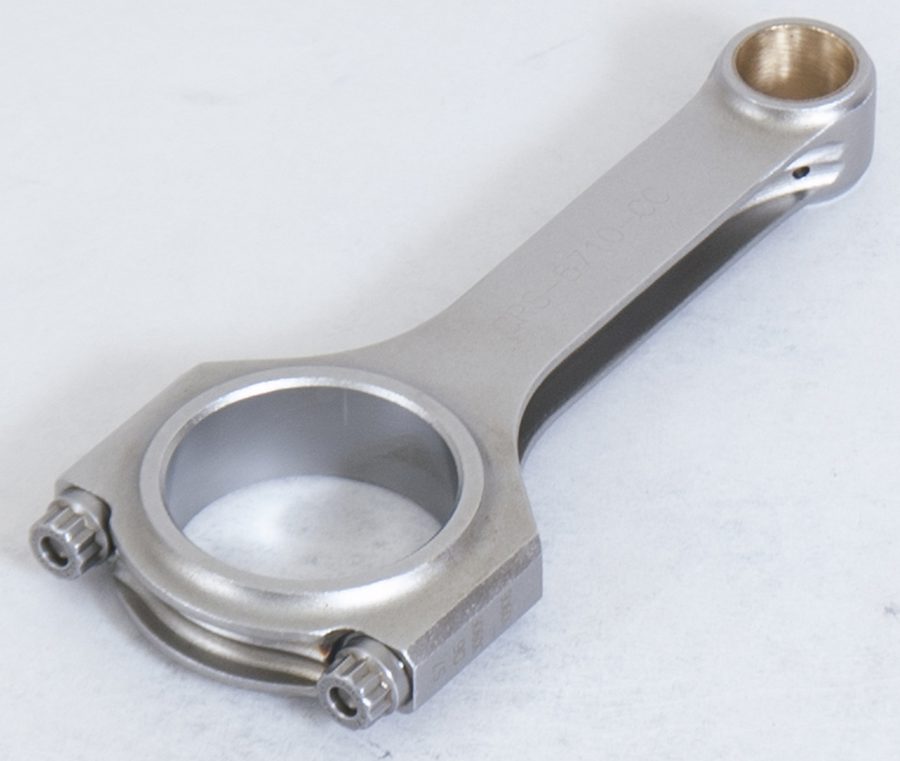

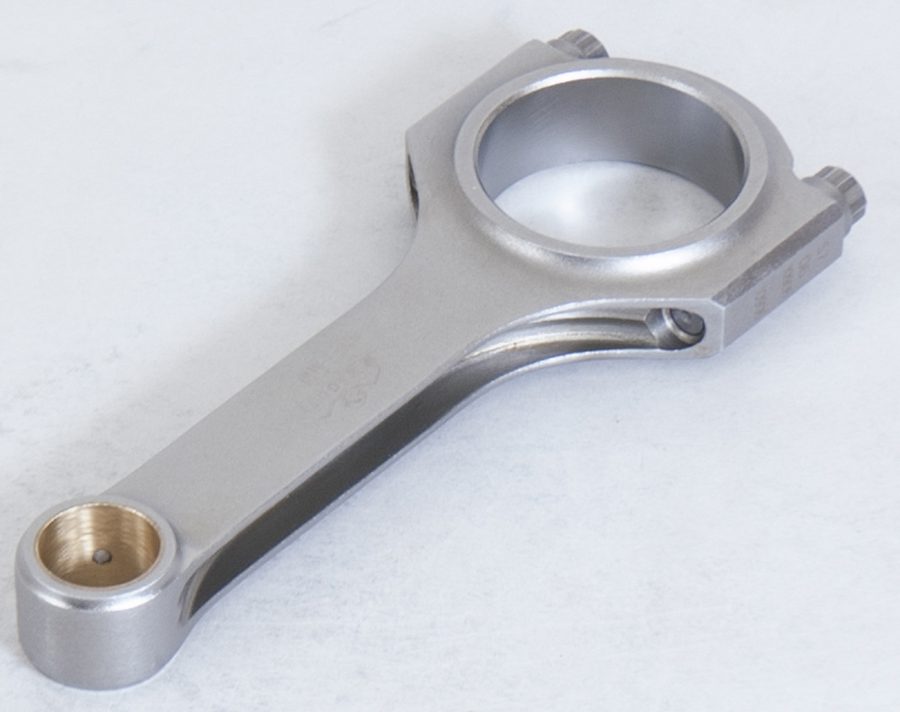

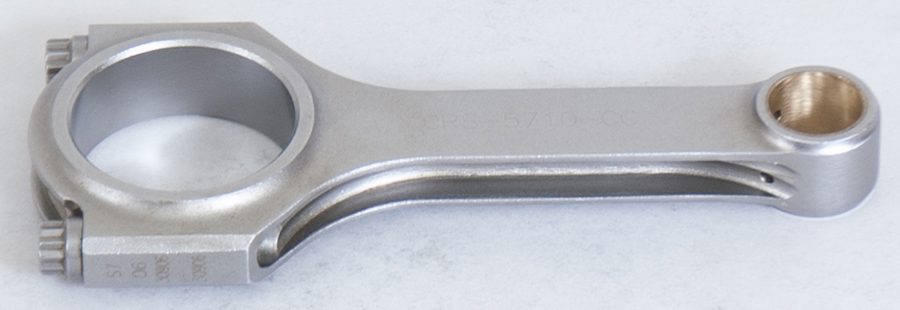

Forged 4340 Steel H-Beam Rods - CHEVROLET LD9 2.4L QUAD4.

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

Big End Width: 0.912 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.71 in
Housing Bore: 2.0145 in
Length Center Bore To Center Bore: 5.71
Material: Forged 4340 Steel
Pin End Width: 0.912 in
Pin Size: 0.866 in
Rod Journal: 1.889 in
