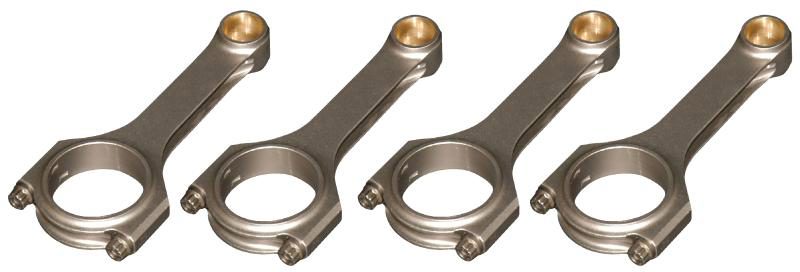

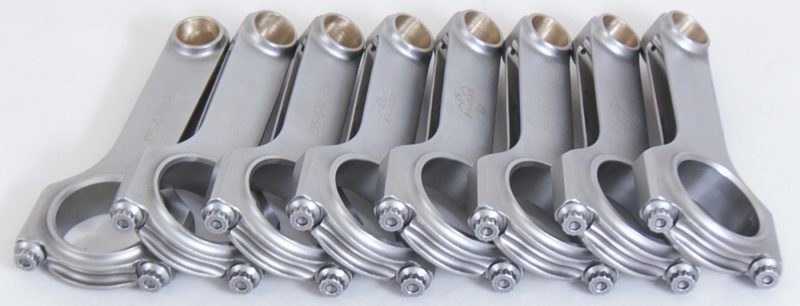

Eagle CRS5700S3DL19 - Small Block Chevy w/ L19 Bolts H-Beam Connecting Rods (Set of 8)

Eagle CRS5700S3DL19 - Small Block Chevy w/ L19 Bolts H-Beam Connecting Rods (Set of 8)

Eagle | CRS5700S3DL19
SKU: CFQW-CRS5700S3DL19
$773.99 USD
$860.99 USD $773.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle CRS5700S3DL19 - Small Block Chevy w/ L19 Bolts H-Beam Connecting Rods (Set of 8)

4340 H-Rod 5.700" 2.00" Rod ARP L19 BOLT

Forged 4340 Steel H-Beam Rods - CHEVROLET SMALL BLOCK, 5.700" LENGTH, 2.000" ROD JOURNAL, ARP L19 BOLTS.

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP L19 bolts for the ultimate in power-handling capability. Recommended for competition use.

Big End Width: 0.94 in
Bolts: 7/16 in ARP L19
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.7 in.
Housing Bore: 2.125 in
Length Center Bore To Center Bore: 5.7
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2 in
