Eagle CRS5700S3D - Chevrolet Small Block 5.700in Length 2.000in Rod Journal Forged Steel H-Beam Rods - Set of 8
Eagle CRS5700S3D - Chevrolet Small Block 5.700in Length 2.000in Rod Journal Forged Steel H-Beam Rods - Set of 8
SKU: CFQW-CRS5700S3D
Regular price
$680.99 USD
Regular price
$740.99 USD
Sale price
$680.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability
Eagle CRS5700S3D - Chevrolet Small Block 5.700in Length 2.000in Rod Journal Forged Steel H-Beam Rods - Set of 8
Connecting Rod - H Beam - 5.700 in Long - Bushed - 7/16 in Cap Screws - 8740 Bolt - Forged - Steel - Small Block Chevy - Set of 8
Forged 4340 Steel H-Beam Rods - CHEVROLET SMALL BLOCK, 5.700" LENGTH, 2.000" ROD JOURNAL.

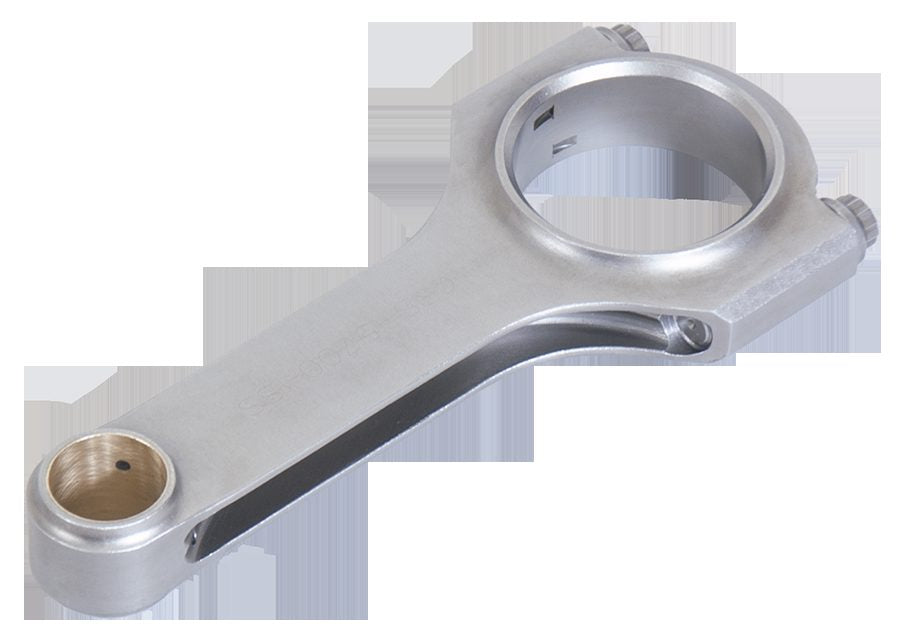

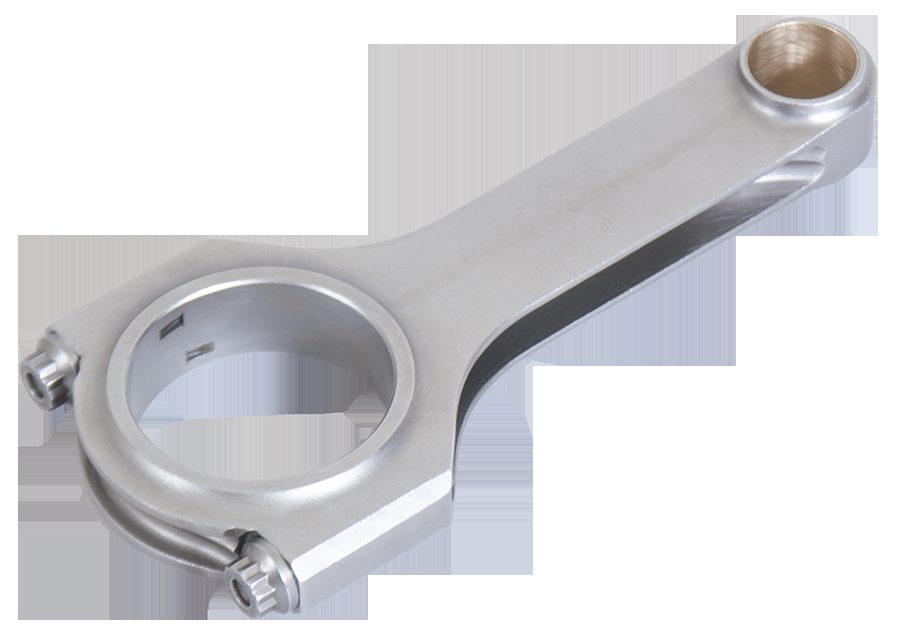

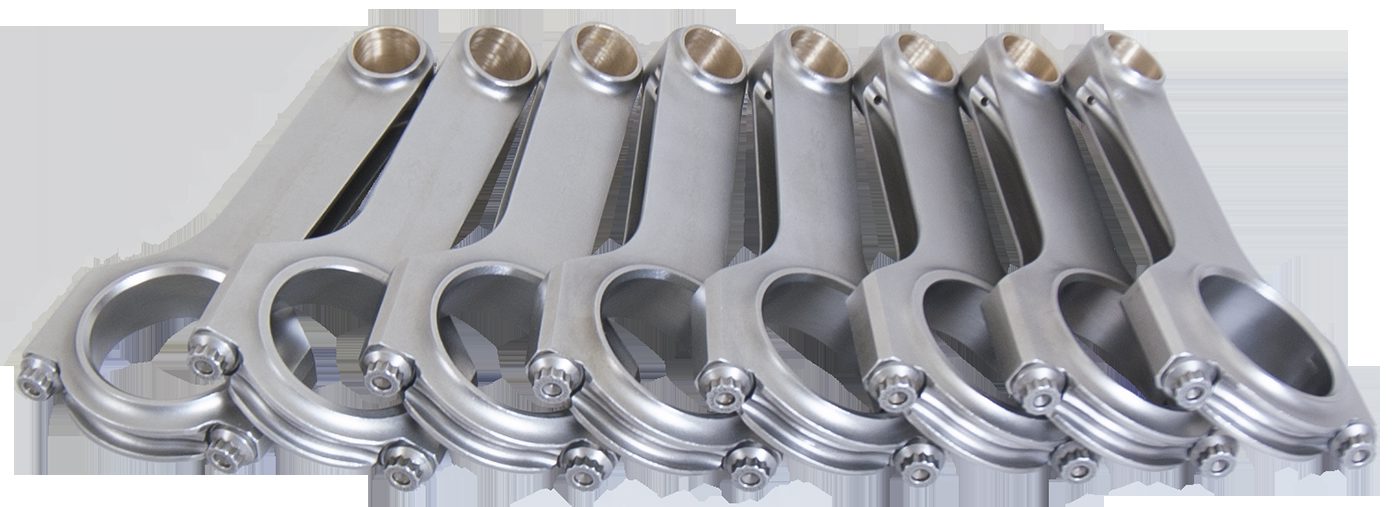

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Big End Width: 0.94 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.7 in.
Housing Bore: 2.125 in
Length Center Bore To Center Bore: 5.7
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2 in
