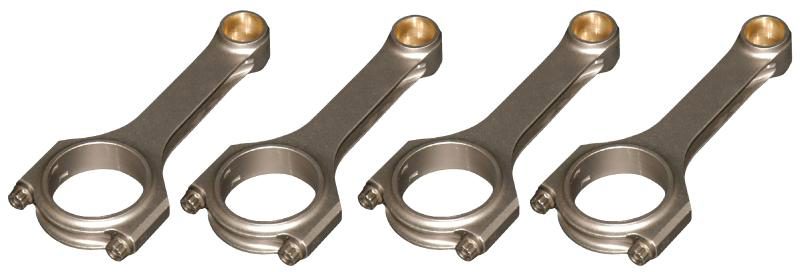

Eagle CRS5700PLW - Ford 2000cc Pinto H-Beam Connecting Rods (Set of 4)

4340 H-BEAM Rod Ford Pinto

Forged 4340 Steel H-Beam Rods - Ford 2000CC PINTO, 5.700" LENGTH, 2.000" ROD JOURNAL, .927" PIN, 1.029" WIDTH.

Forged 4340 steel H-Beam lightweight connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. For restricted competition use.

Big End Width: 1.029 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.7 in.
Housing Bore: 2.125 in
Length Center Bore To Center Bore: 5.7
Material: Forged 4340 Steel
Pin End Width: 1.029 in
Pin Size: 0.927 in
Rod Journal: 2 in
