Eagle - CRS5700BLW

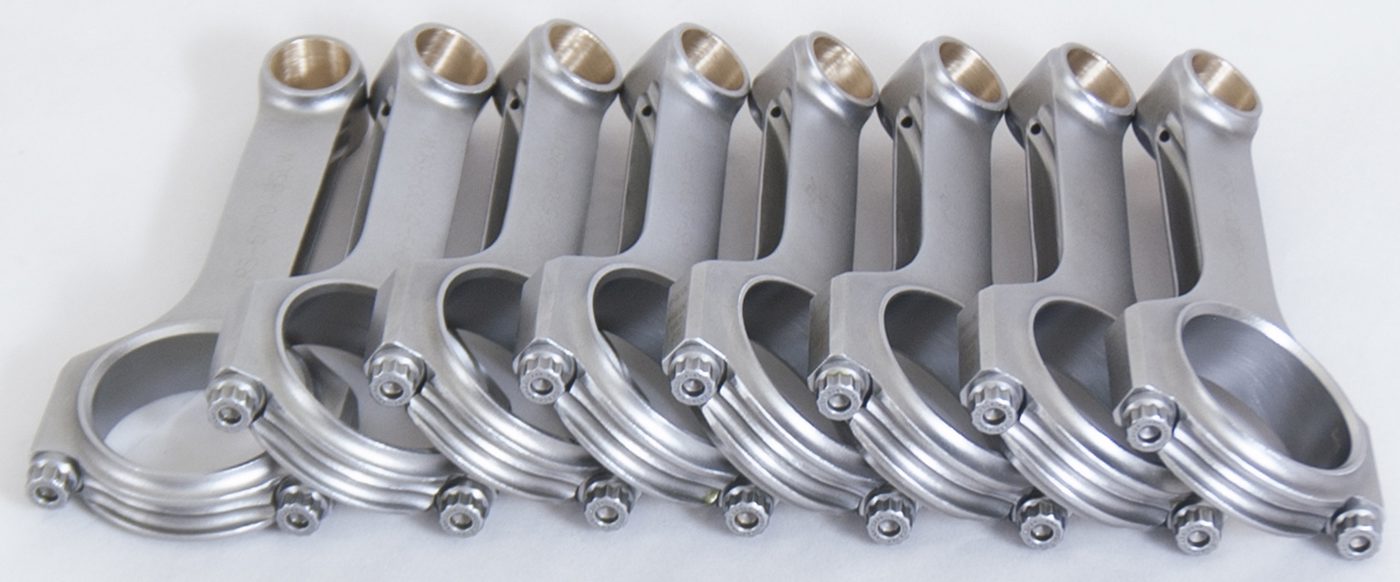

Connecting Rod - H Beam - 5.700 in Long - Bushed - 3/8 in Cap Screws - ARP2000 Bolt - Forged - Steel - Small Block Chevy - Set of 8

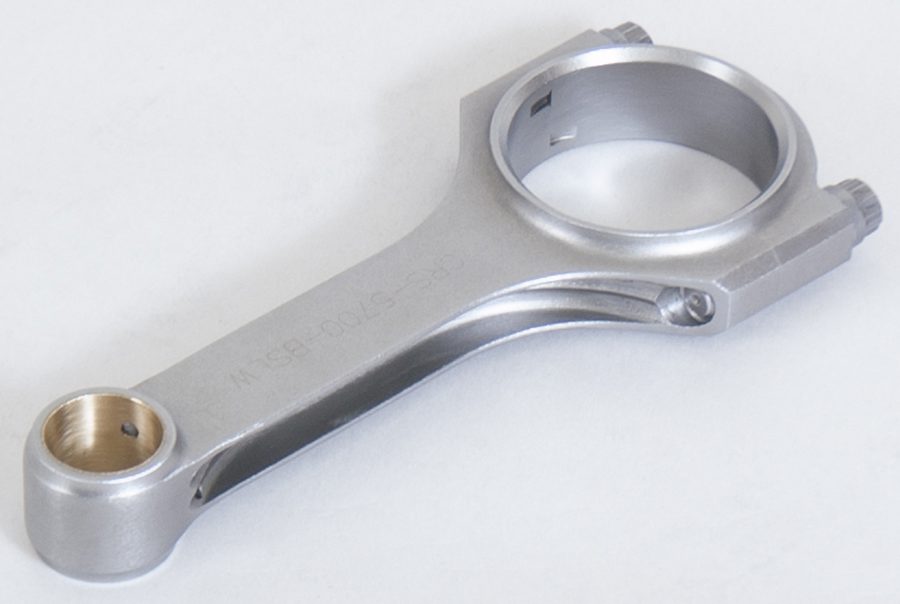

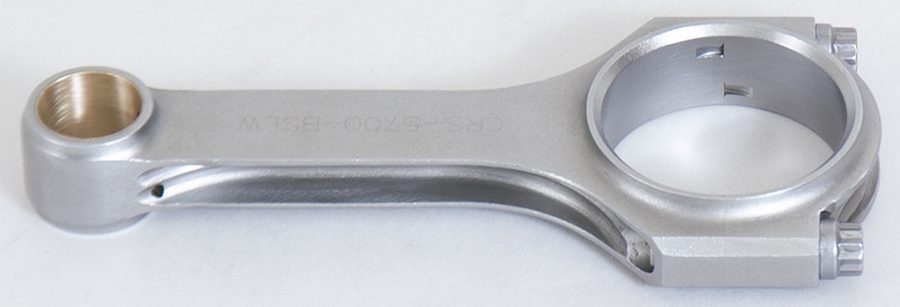

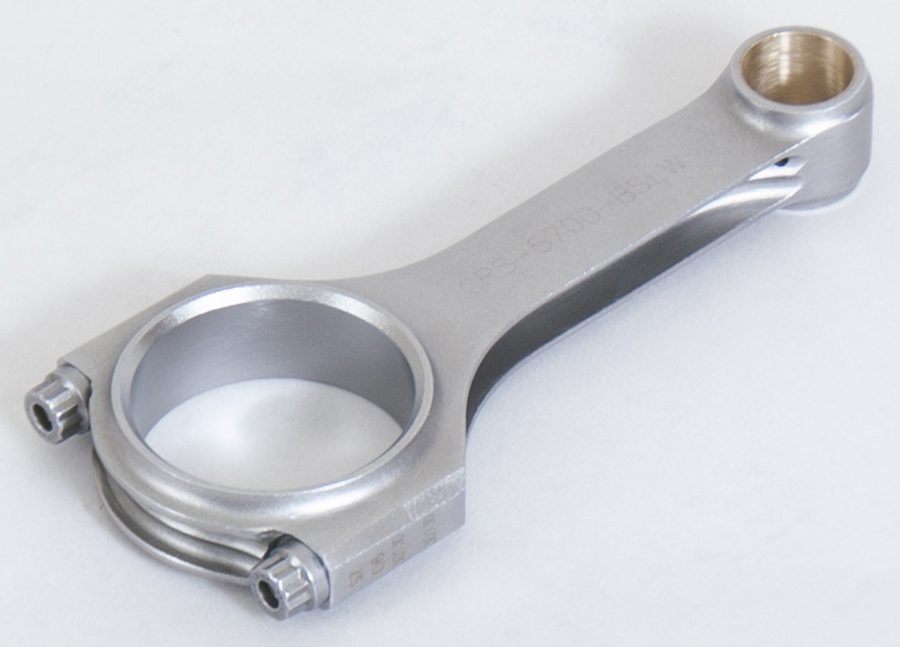

Forged 4340 Steel LIGHTWEIGHT H-Beam Rods - CHEVROLET SMALL BLOCK, 5.700" LENGTH.
Forged 4340 steel H-Beam lightweight connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. For restricted competition use.
Big End Width: 0.94 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.7 in.
Housing Bore: 2.225 in
Length Center Bore To Center Bore: 5.7
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
