Eagle CRS5700B3D-1 - ESP 4340 H-BEAM ROD 5.700 in 2.100 ROD
Eagle CRS5700B3D-1 - ESP 4340 H-BEAM ROD 5.700 in 2.100 ROD
SKU: CFQW-CRS5700B3D-1
Regular price
$126.99 USD
Regular price
$139.69 USD
Sale price
$126.99 USD
Shipping calculated at checkout.
6 in stock
Quantity
Couldn't load pickup availability
Eagle CRS5700B3D-1 - ESP 4340 H-BEAM ROD 5.700 in 2.100 ROD

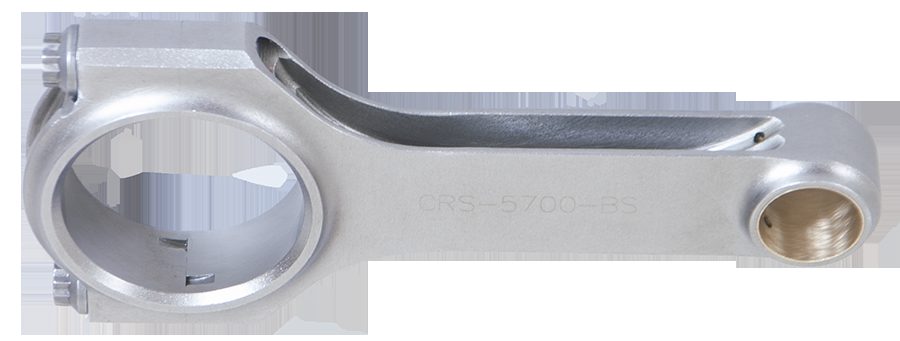

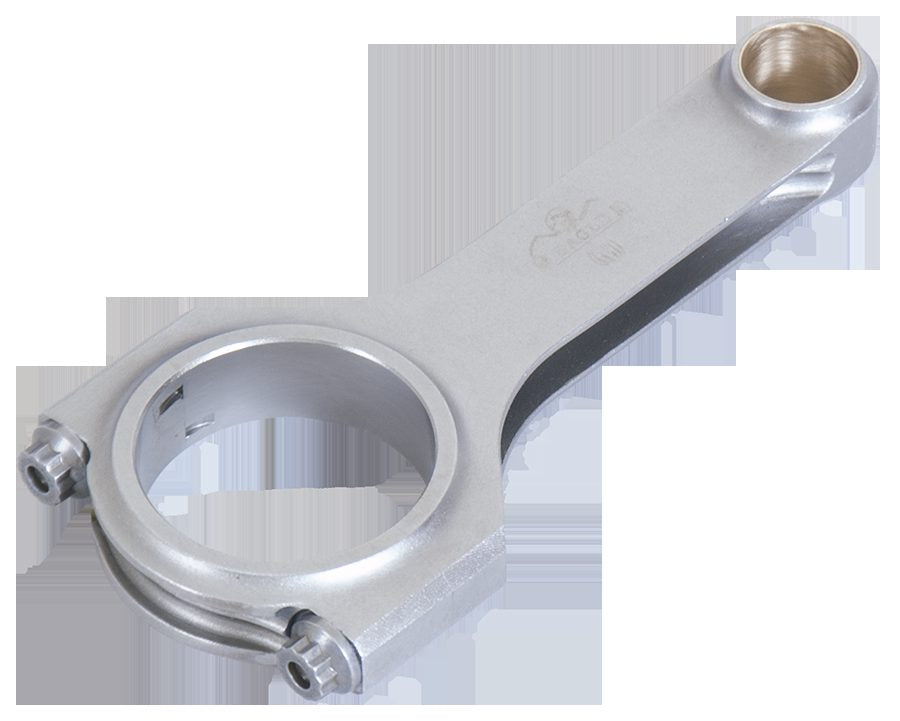

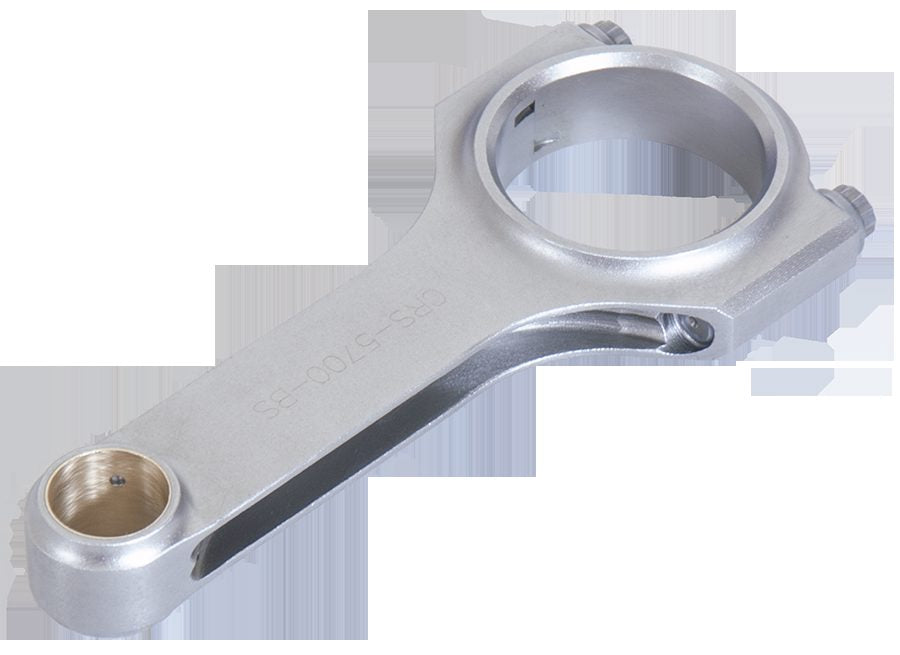

Connecting Rod - H Beam - 5.700 in Long - Bushed - 7/16 in Cap Screws - 8740 Bolt - Forged - Steel - Small Block Chevy - Each
Forged 4340 Steel H-Beam Rod - CHEVROLET SMALL BLOCK, 5.700" LENGTH.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.94 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.7 in.
Housing Bore: 2.225 in
Length Center Bore To Center Bore: 5.7
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
