Eagle - CRS5680N3D
Connecting Rod - H Beam - 5.680 in Long - Bushed - 3/8 in Cap Screws - ARP2000 Bolt - Forged - Steel - Nissan 6-Cylinder - Set of 6

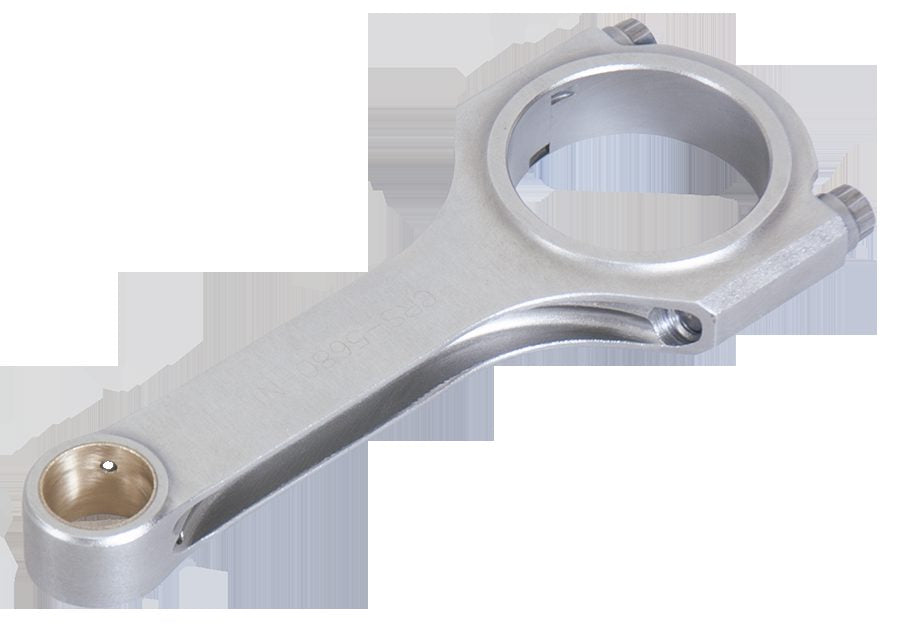

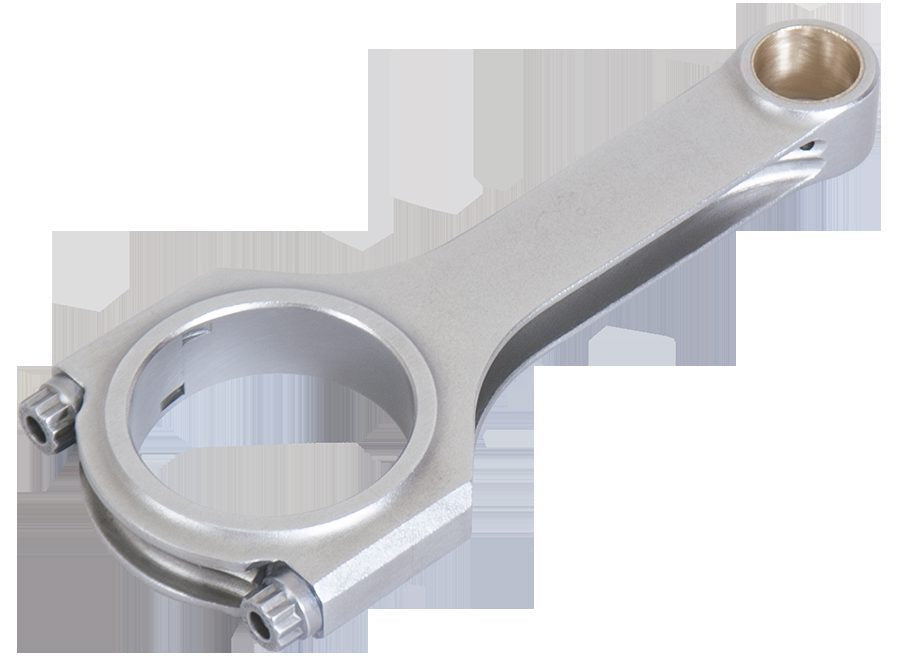

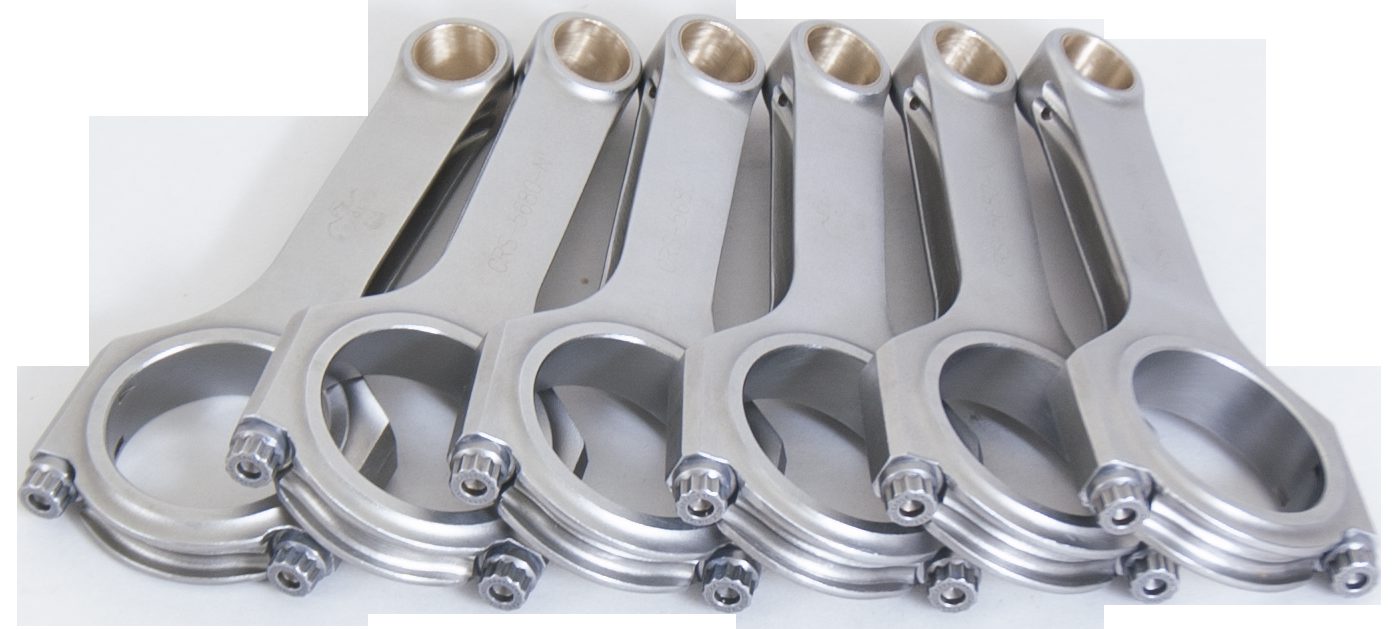

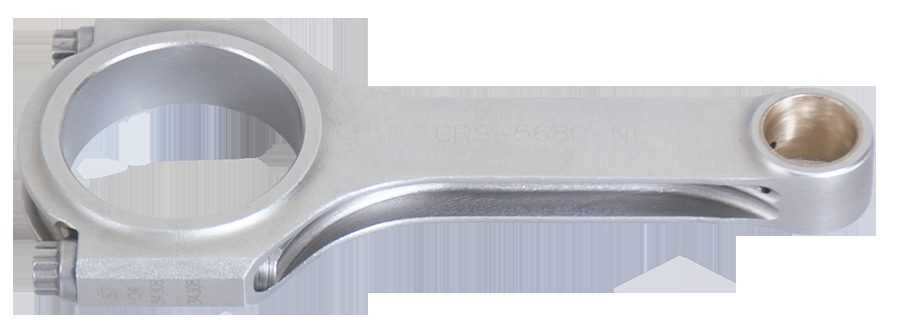

Forged 4340 Steel H-Beam Rods - NISSAN VQ35.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Rod Journal: 0 in
Big End Width: 0.815 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.68 in
Housing Bore: 2.167 in
Length Center Bore To Center Bore: 144.3
Material: Forged 4340 Steel
Pin End Width: 0.82 in
Pin Size: 0.866 in
