Eagle - CRS5680N3D-1
4340 H-BEAM Rod NISSAN VQ35 H-BEAM

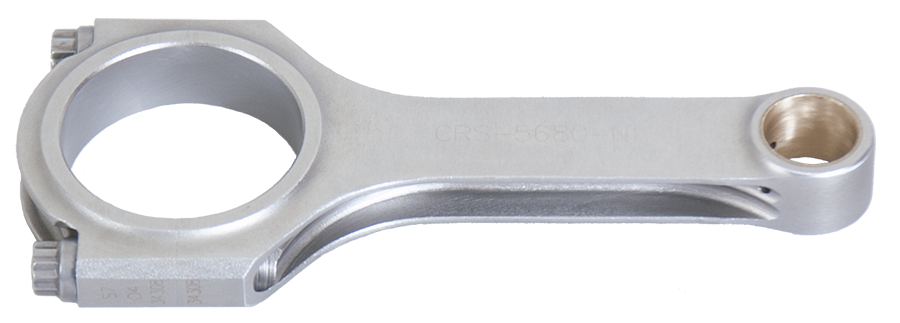

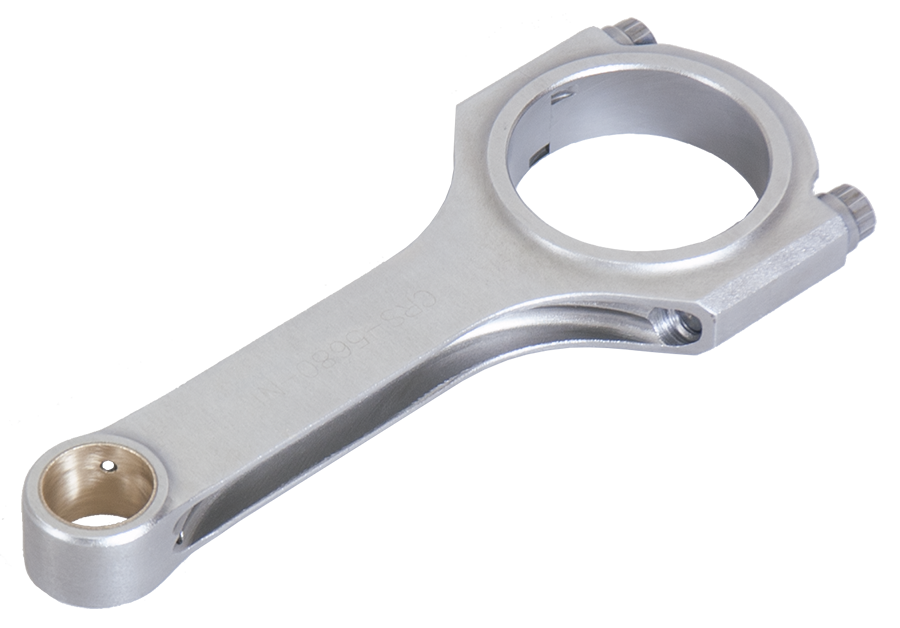

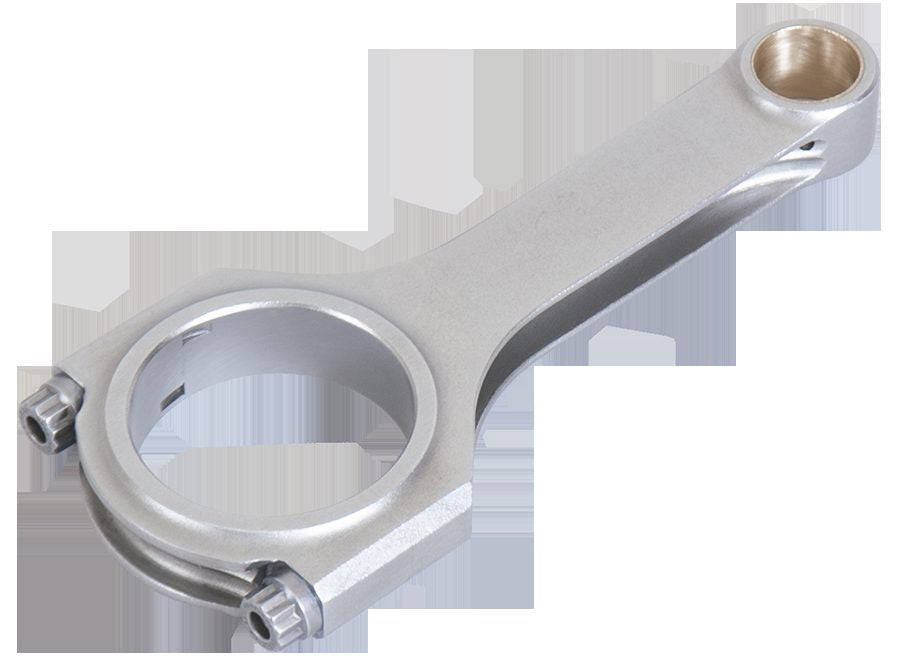

Forged 4340 Steel H-Beam Rod - NISSAN VQ35.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.815 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.68 in
Housing Bore: 2.167 in
Length Center Bore To Center Bore: 144.3
Material: Forged 4340 Steel
Pin End Width: 0.82 in
Pin Size: 0.866 in
Rod Journal: 0 in
