Eagle - CRS5669A3D
4340 H-Beam Rod AUDI 1.8L 4

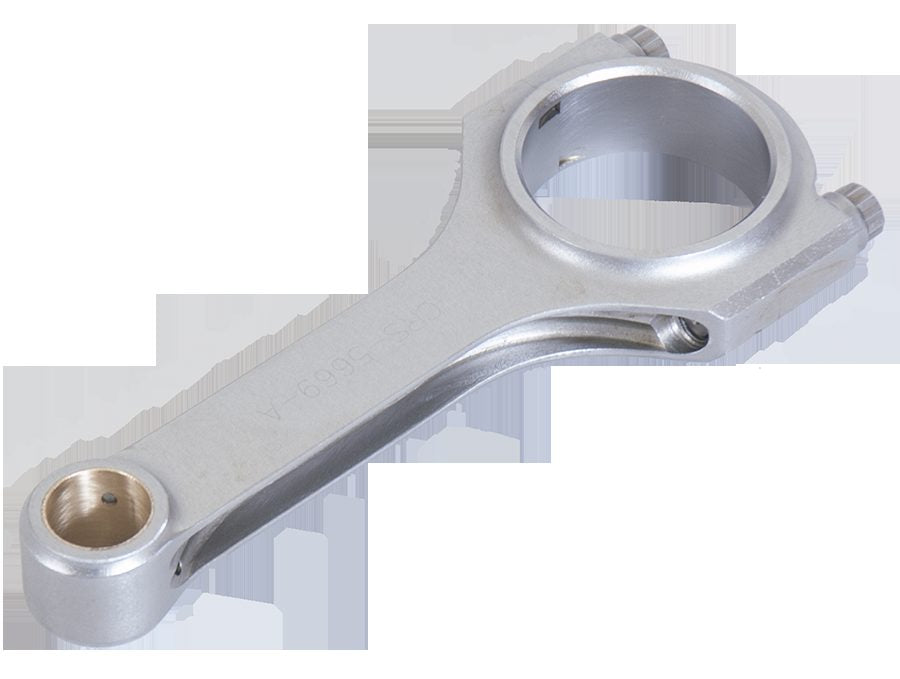

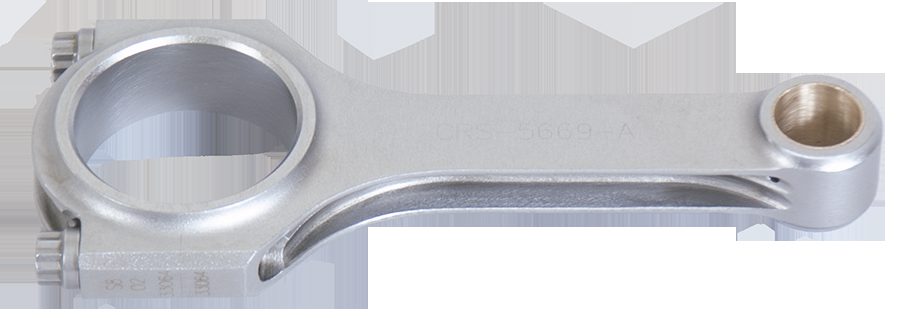

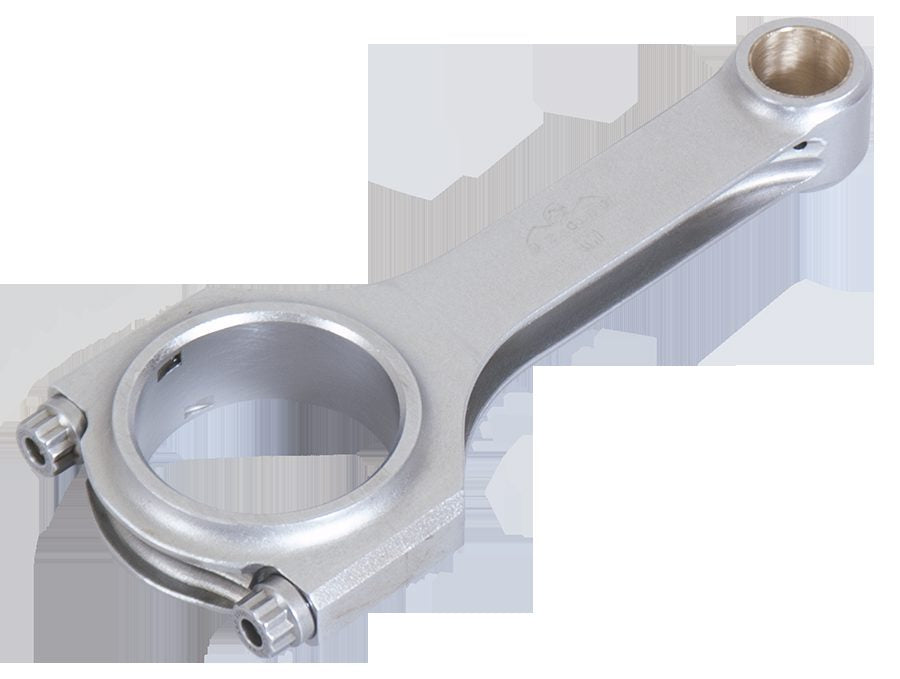

Forged 4340 Steel H-Beam Rods - VW/AUDI 1.8T/2.0T.

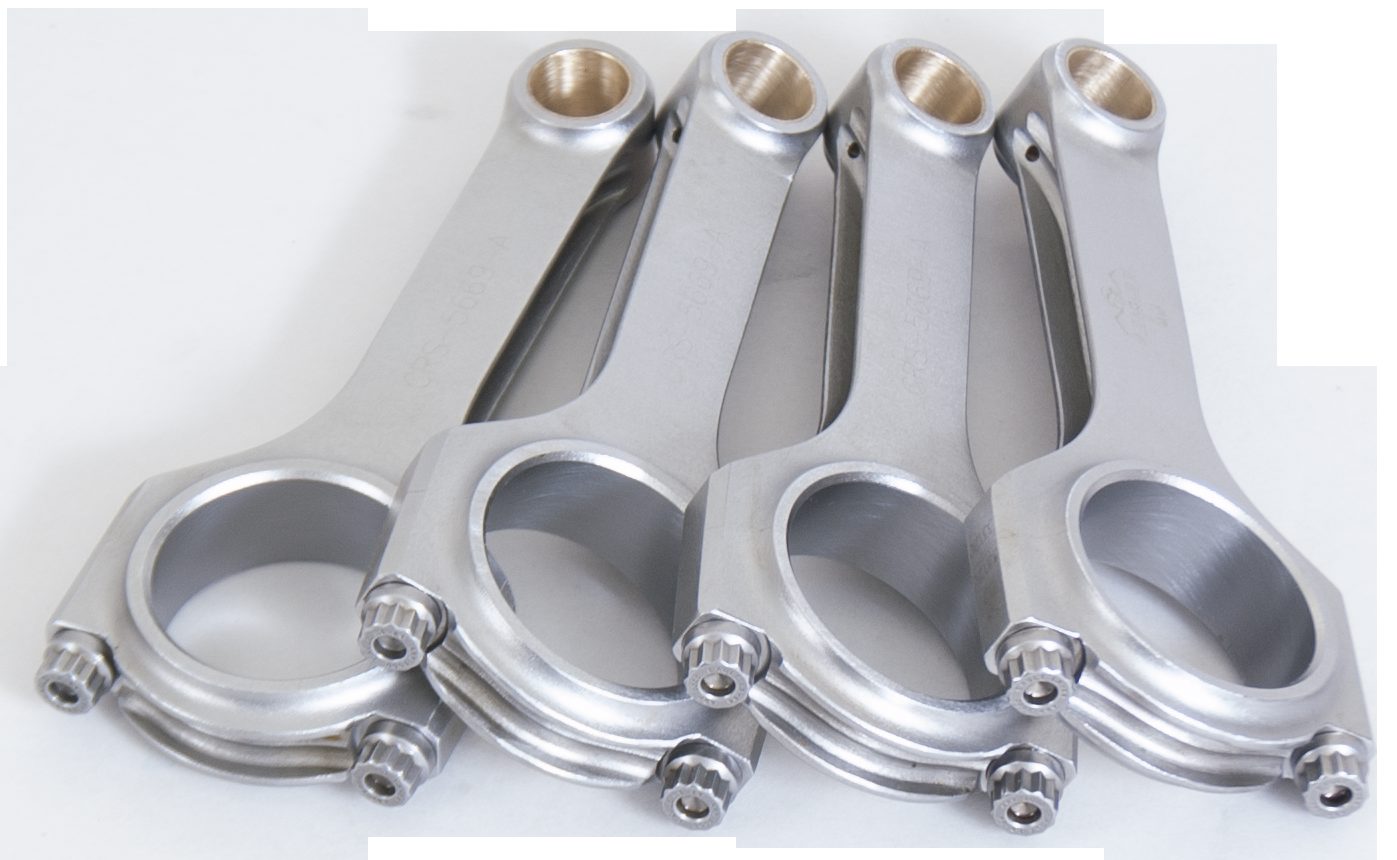

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.982 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.669 in
Housing Bore: 1.9925 in
Length Center Bore To Center Bore: 144
Material: Forged 4340 Steel
Pin End Width: 0.98 in
Pin Size: 0.79 in
Rod Journal: 1.881 in
