Eagle CRS5590T3D-1 - Toyota 2JZGTE Engine H-Beam Connecting Rod (Single Rod)
Eagle CRS5590T3D-1 - Toyota 2JZGTE Engine H-Beam Connecting Rod (Single Rod)
SKU: CFQW-CRS5590T3D-1
Regular price
$139.99 USD
Regular price
$153.99 USD
Sale price
$139.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Eagle CRS5590T3D-1 - Toyota 2JZGTE Engine H-Beam Connecting Rod (Single Rod)

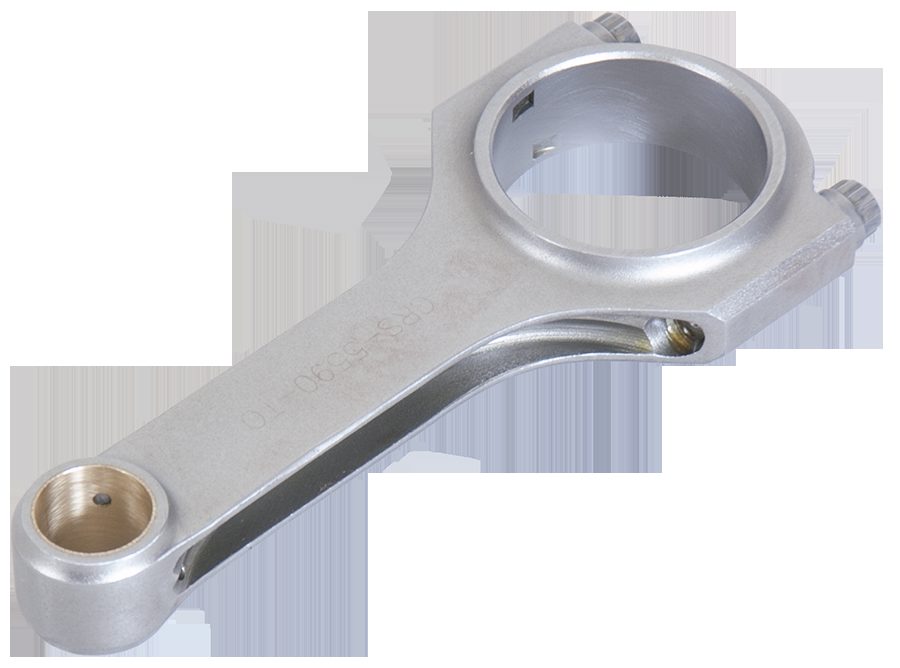

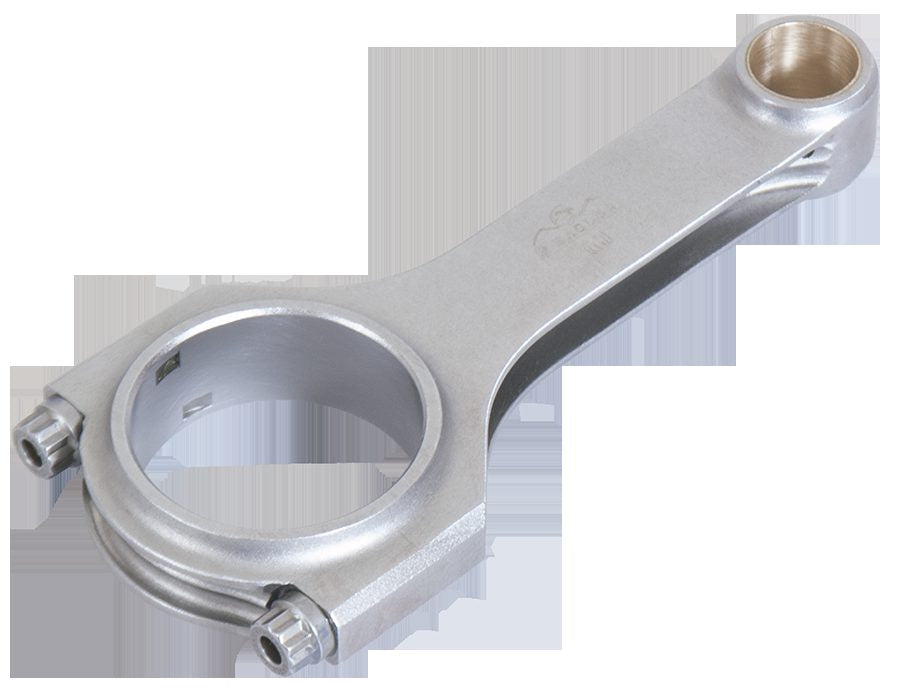

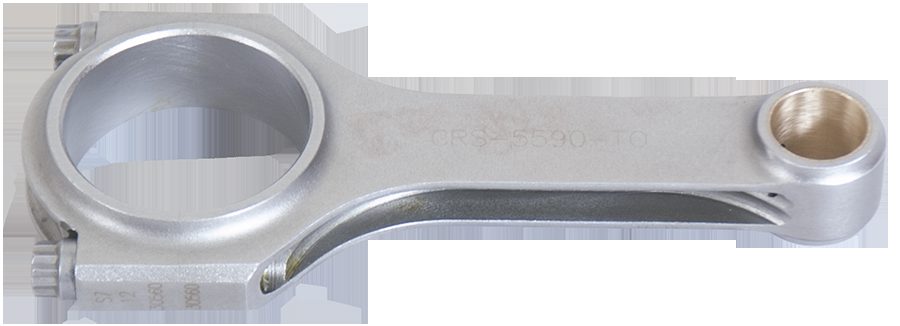

4340 H-BEAM Rod Toyota 2JZGTE
Forged 4340 Steel H-Beam Rod - TOYOTA 2JZ.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 1.02 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.59 in
Housing Bore: 2.1667 in
Length Center Bore To Center Bore: 142
Material: Forged 4340 Steel
Pin End Width: 1.02 in
Pin Size: 0.866 in
Rod Journal: 2.047 in
