Eagle CRS5565B3D2000 - Chevrolet 400 ARP 2000 Bolts Forged 4340 Steel H-Beam Rods - Set of 8

Eagle CRS5565B3D2000 - Chevrolet 400 ARP 2000 Bolts Forged 4340 Steel H-Beam Rods - Set of 8

Eagle | CRS5565B3D2000
SKU: CFQW-CRS5565B3D2000
$720.99 USD
$800.99 USD $720.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle CRS5565B3D2000 - Chevrolet 400 ARP 2000 Bolts Forged 4340 Steel H-Beam Rods - Set of 8

4340 H-BEAM Rod 5.565" 2.100 Rod ARP2000

Forged 4340 Steel H-Beam Rods - CHEVROLET 400, ARP 2000 BOLTS.

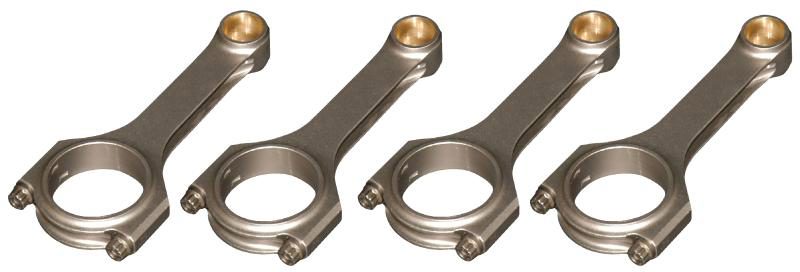

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

Big End Width: 0.94 in
Bolts: 7/16 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.565 in
Housing Bore: 2.25 in
Length Center Bore To Center Bore: 5.565
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
