Eagle - CRS5430A3D-1
4340 Rod Acura B18C1/5

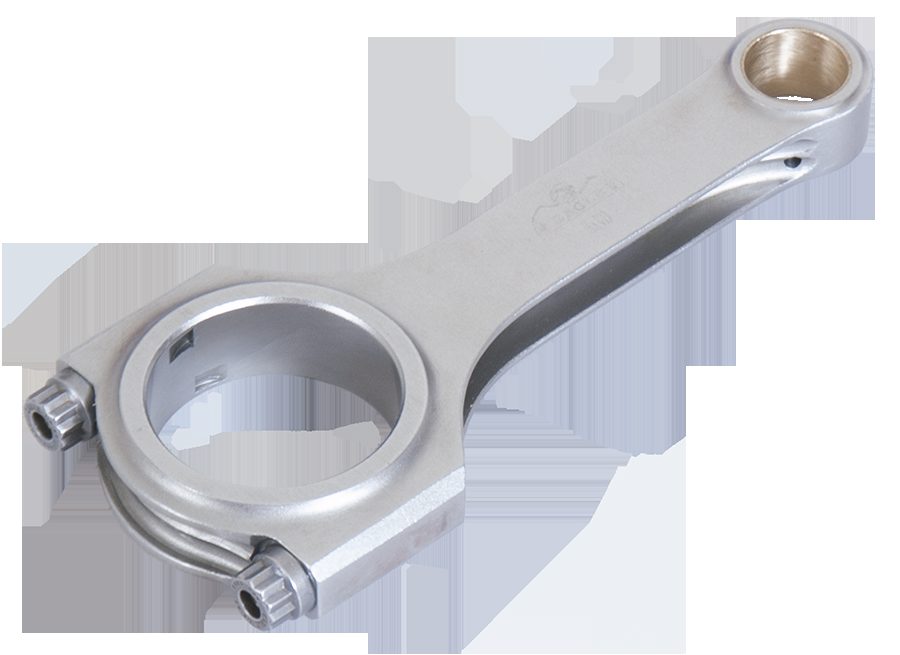

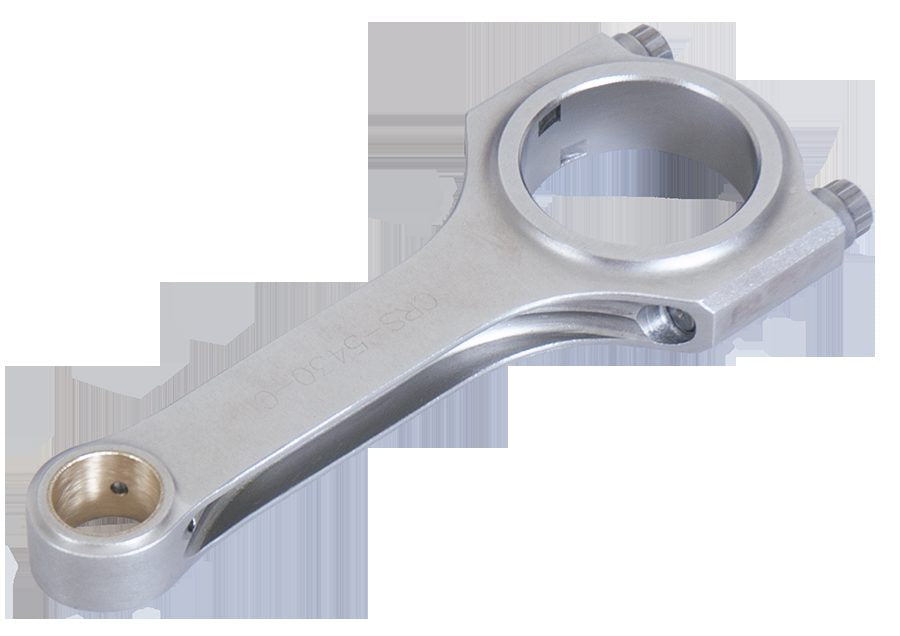

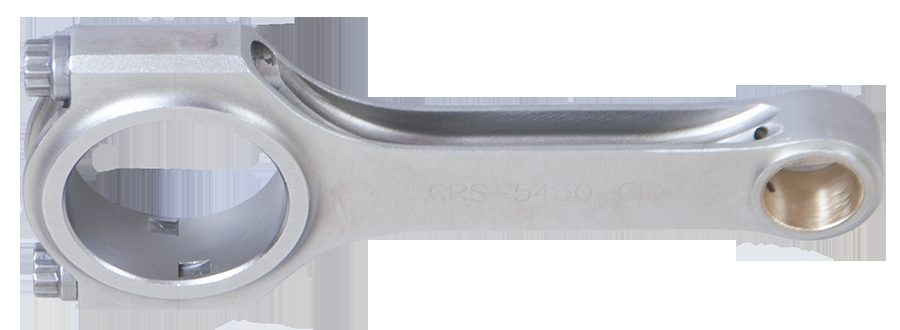

Forged 4340 Steel H-Beam Rod - HONDA B18C.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.858 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.43 in
Housing Bore: 1.89 in
Length Center Bore To Center Bore: 137.9
Material: Forged 4340 Steel
Pin End Width: 0.725 in
Pin Size: 0.827 in
Rod Journal: 1.771 in
