Eagle CRS5400C3D-1 - Ford 302 H-Beam Connecting Rods (Single)
Eagle CRS5400C3D-1 - Ford 302 H-Beam Connecting Rods (Single)
SKU: CFQW-CRS5400C3D-1
Regular price
$132.99 USD
Regular price
$146.29 USD
Sale price
$132.99 USD
Shipping calculated at checkout.
3 in stock
Quantity
Couldn't load pickup availability

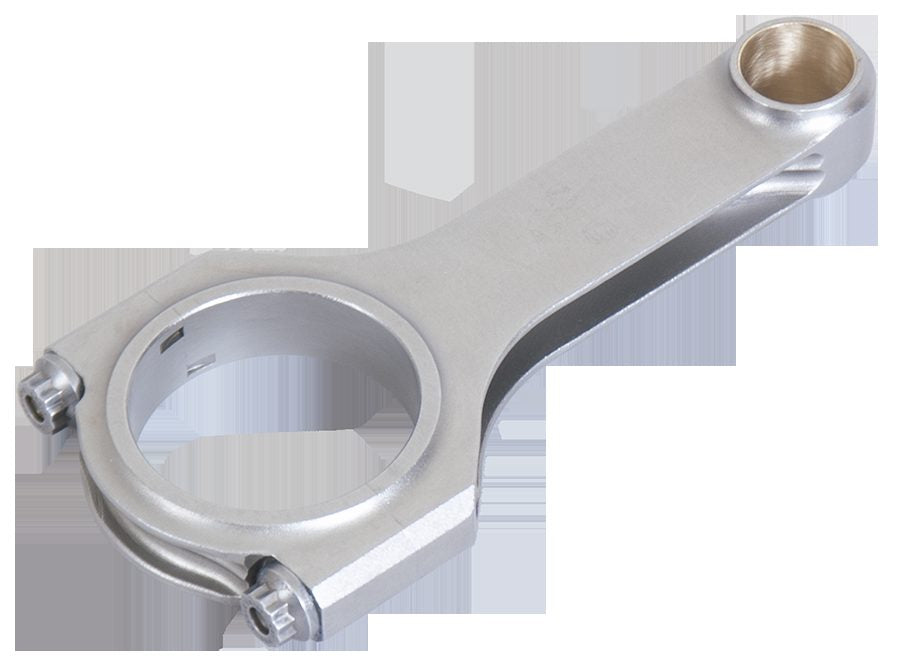

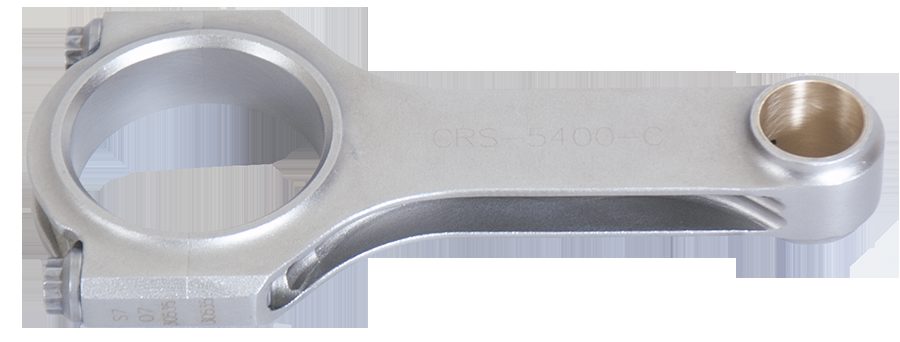

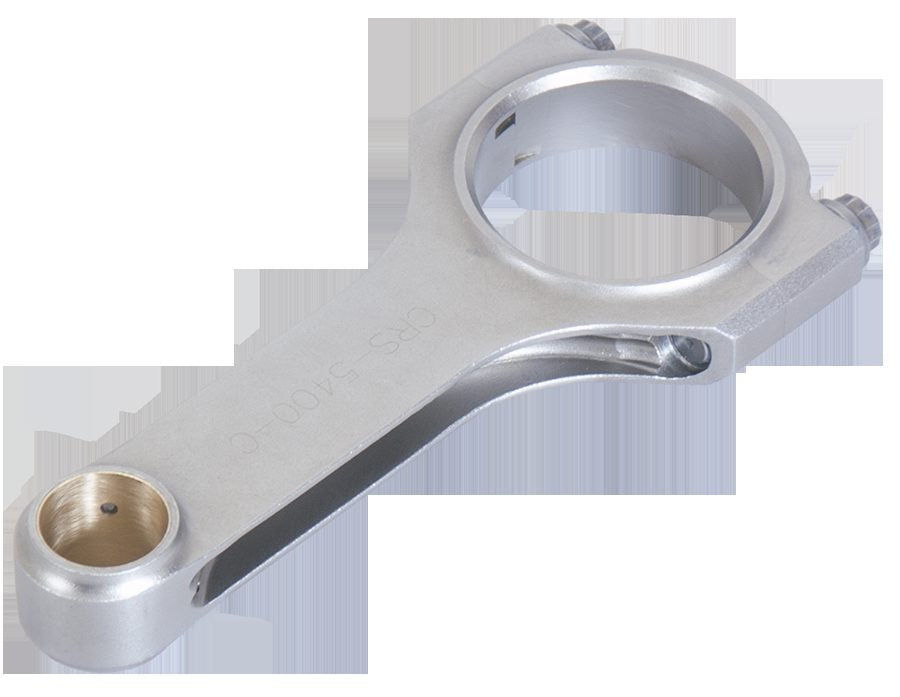

Eagle CRS5400C3D-1 - Ford 302 H-Beam Connecting Rods (Single)
Connecting Rod - H Beam - 5.400 in Long - Bushed - 7/16 in Cap Screws - 8740 Bolt - Forged - Steel - Small Block Ford - Each
Forged 4340 Steel H-Beam Rod - Ford 302 STROKER, 3.400" LENGTH, 2.100" ROD JOURNAL, .927" PIN.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.831 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.400 in
Housing Bore: 2.25 in
Length Center Bore To Center Bore: 5.4
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
