Eagle - CRS5394H3D

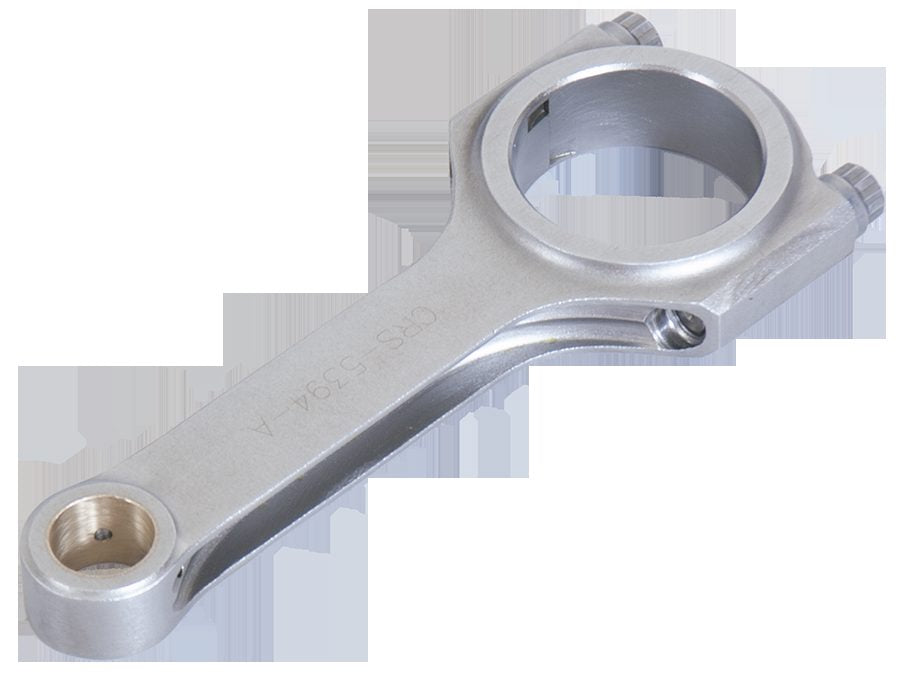

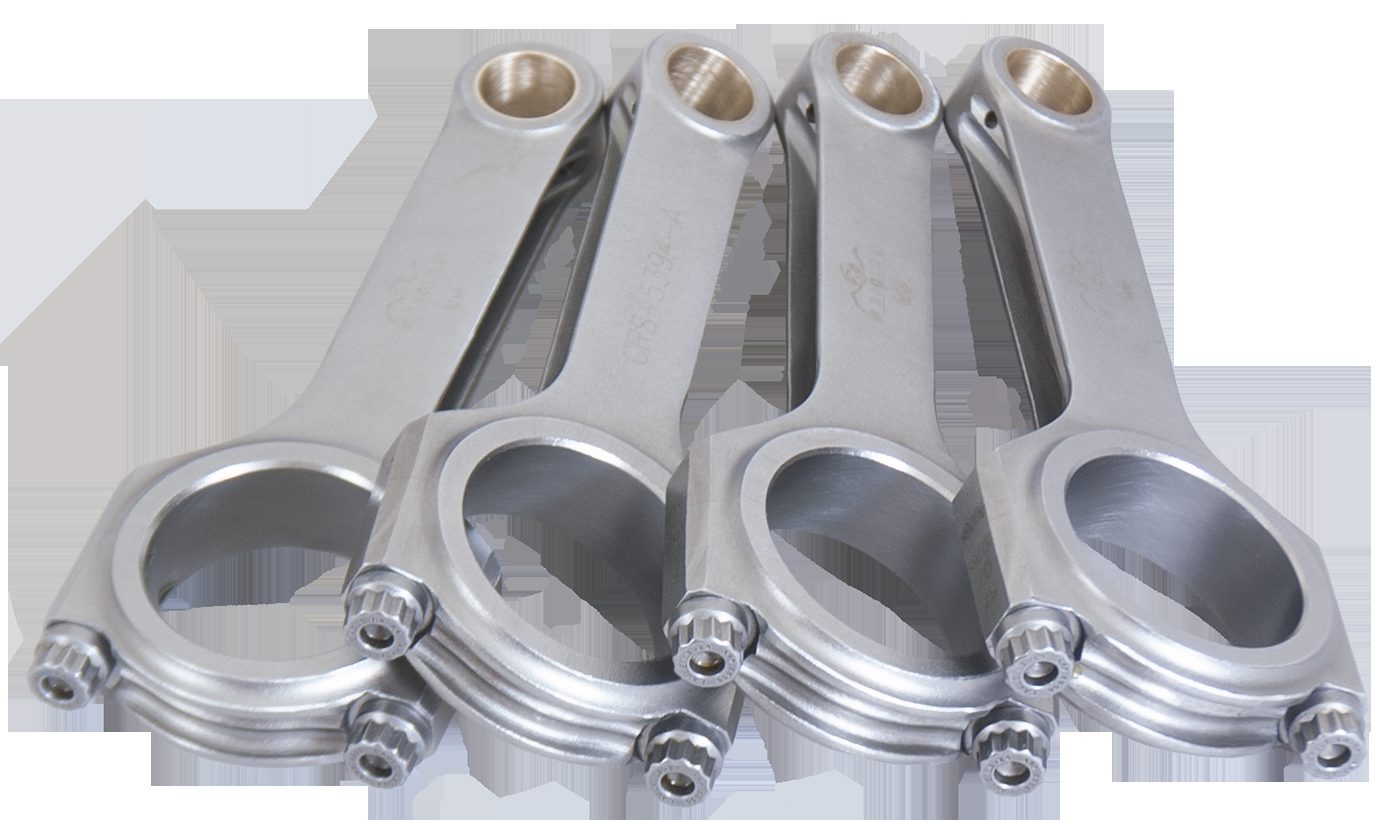

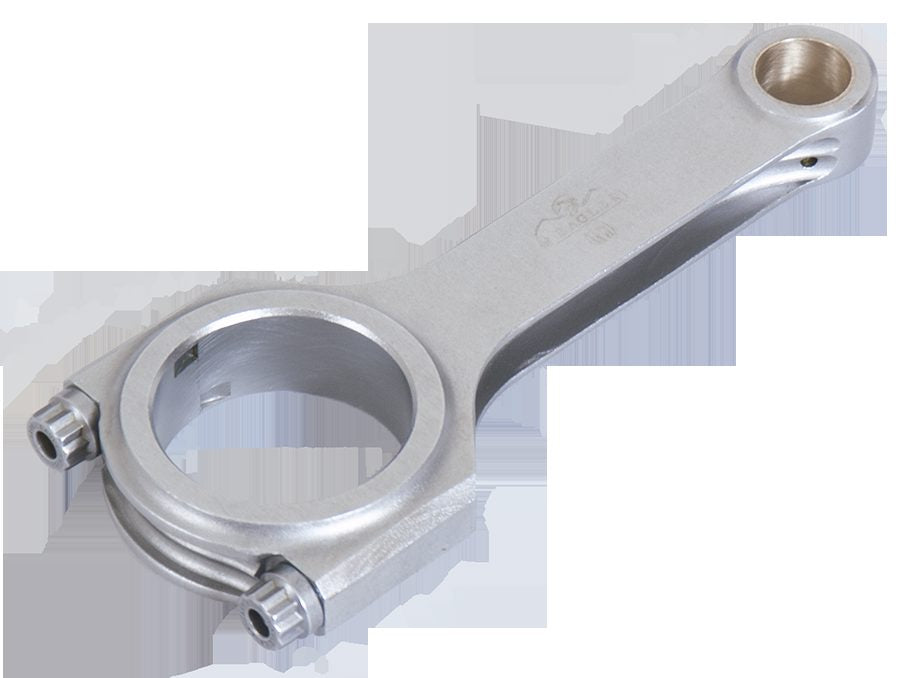

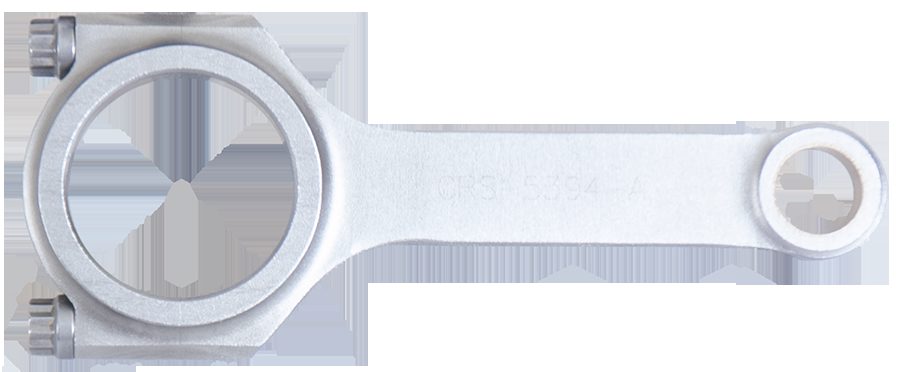

Connecting Rod - H Beam - 5.394 in Long - Bushed - 3/8 in Cap Screws - ARP2000 Bolt - Forged - Steel - Honda B-Series - Set of 4
Forged 4340 Steel H-Beam Rods - HONDA D16/ZC.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.892 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.394 in
Housing Bore: 1.89 in
Length Center Bore To Center Bore: 137
Material: Forged 4340 Steel
Pin End Width: 0.716 in
Pin Size: 0.748 in
Rod Journal: 1.771 in
