Eagle - CRS5394A3D-1
4340 Rod Acura B18A/B

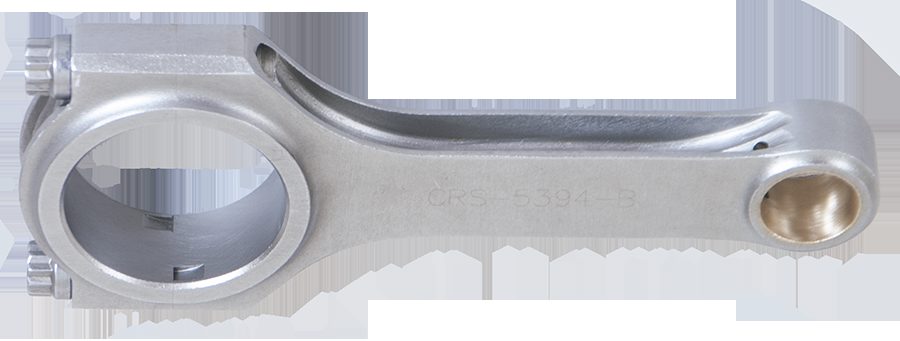

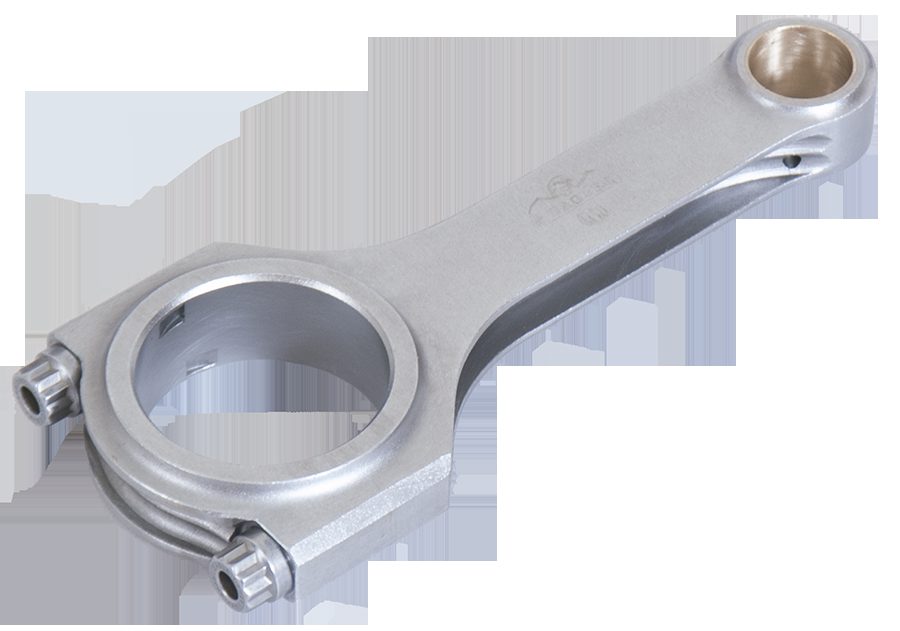

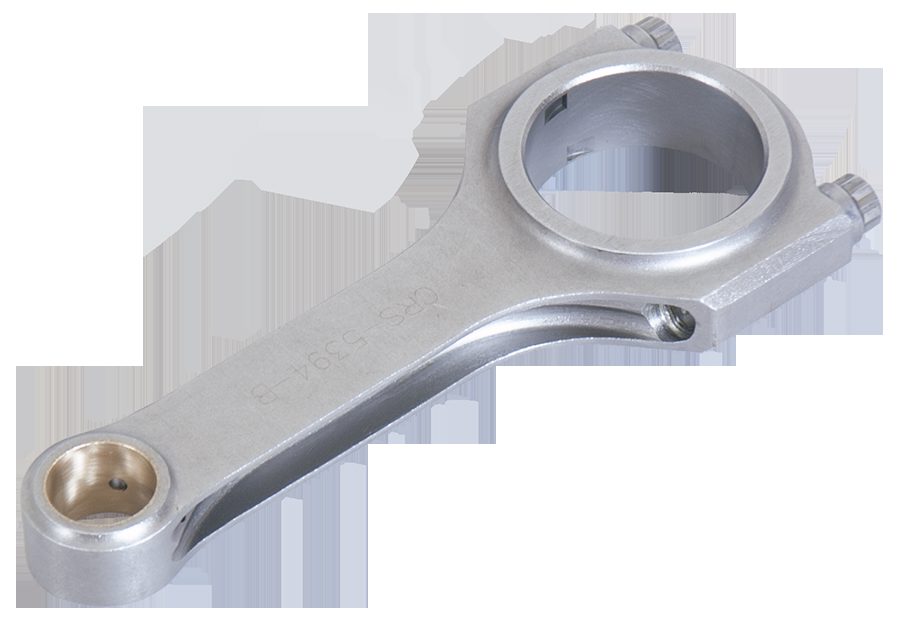

Forged 4340 Steel H-Beam Rod - HONDA B18/B20 NON-VTEC.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.935 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.394 in
Housing Bore: 1.89 in
Length Center Bore To Center Bore: 137
Material: Forged 4340 Steel
Pin End Width: 0.935 in
Pin Size: 0.827 in
Rod Journal: 1.771 in
