Eagle - CRS5313B63D
4340 Rod BMW M52 H-BEAM Rod 6

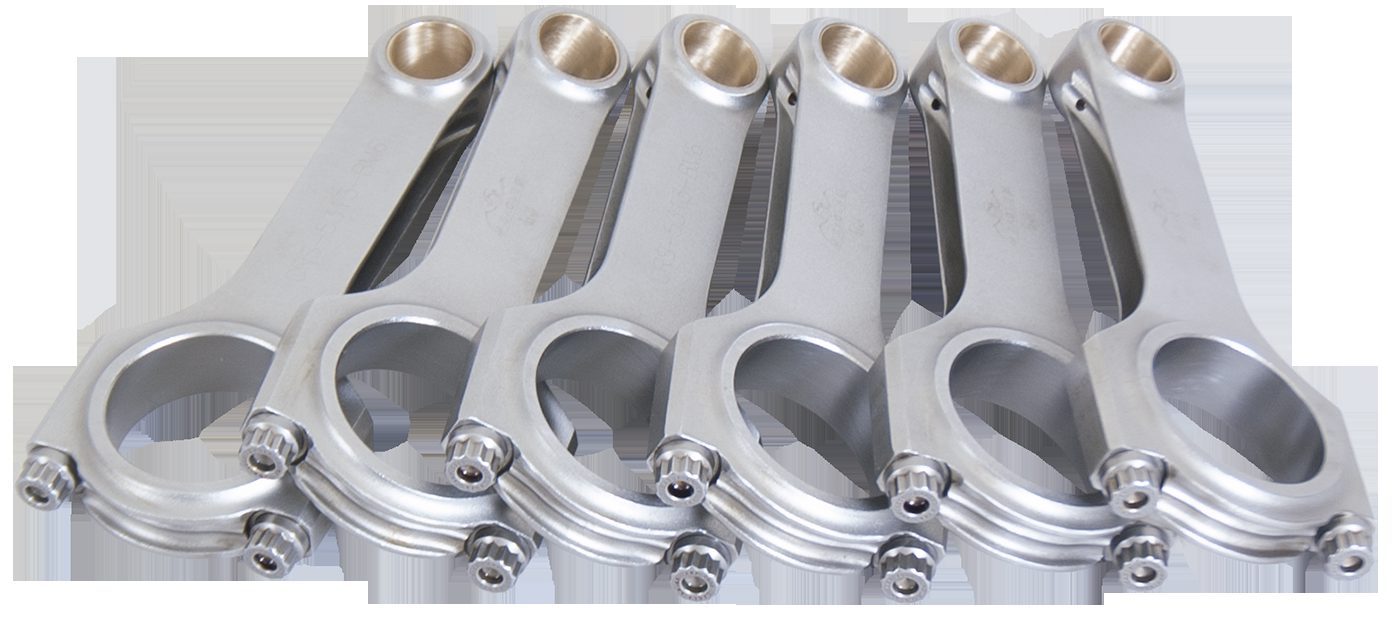

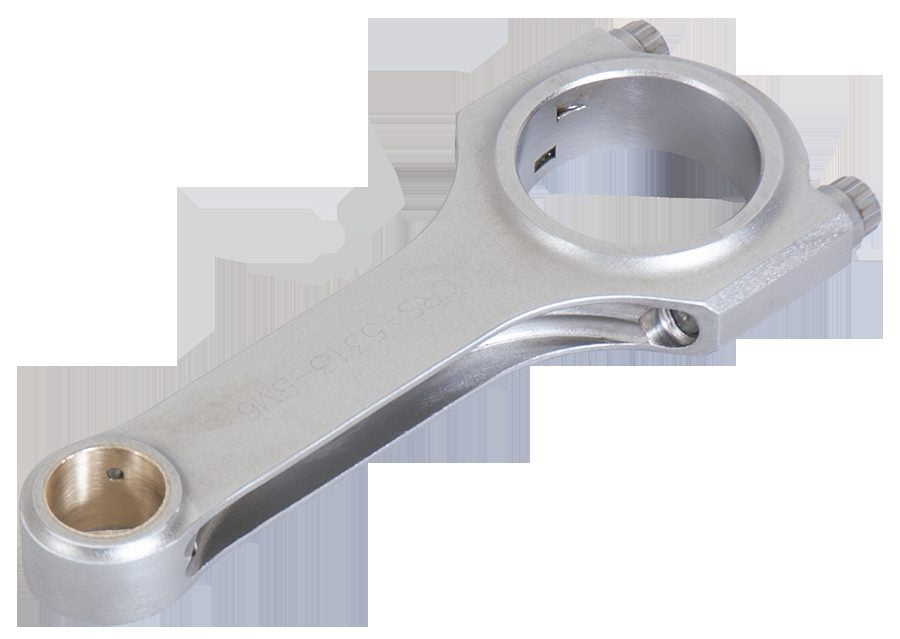

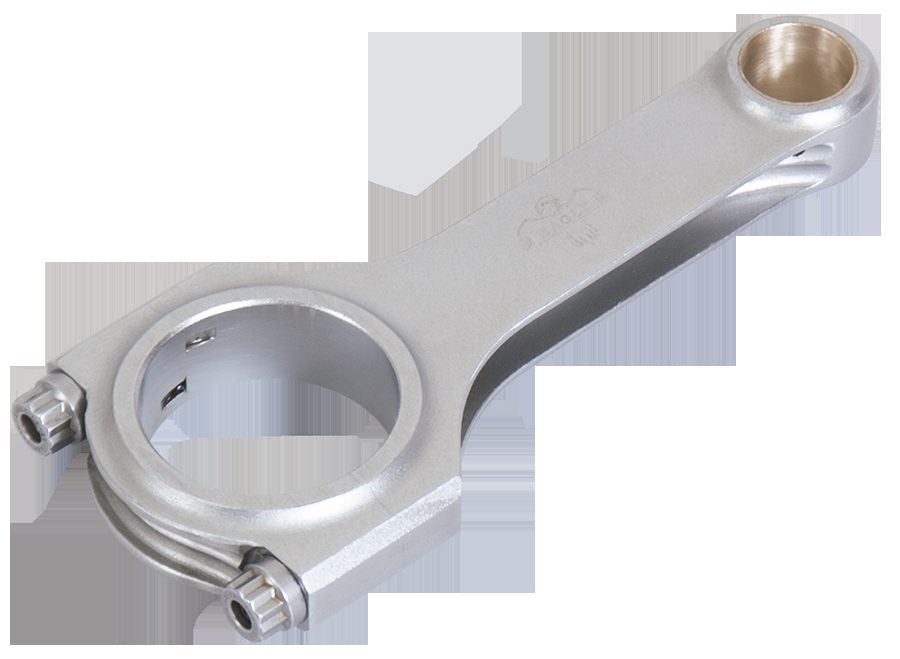

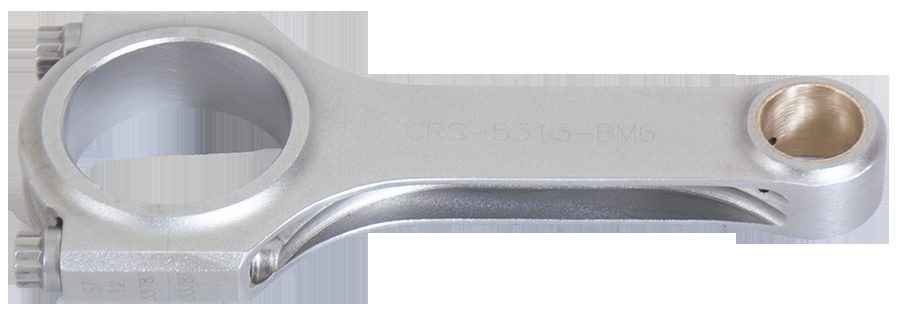

Forged 4340 Steel H-Beam Rods - BMW M52, S50 USDM.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.863 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.313 in
Housing Bore: 1.89 in
Length Center Bore To Center Bore: 135
Material: Forged 4340 Steel
Pin End Width: 0.863 in
Pin Size: 0.866 in
Rod Journal: 1.771 in
