Eagle

Eagle CRS5290H3D - Honda B16 Engine Connecting Rods (Set of 4)

MSRP: $450.99
$409.99
( saved $41.00 )
Write a Review
  • Eagle CRS5290H3D - Honda B16 Engine Connecting Rods (Set of 4)
  • Eagle CRS5290H3D - Honda B16 Engine Connecting Rods (Set of 4)
  • Eagle CRS5290H3D - Honda B16 Engine Connecting Rods (Set of 4)
  • Eagle CRS5290H3D - Honda B16 Engine Connecting Rods (Set of 4)
  • Eagle CRS5290H3D - Honda B16 Engine Connecting Rods (Set of 4)
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Verify fitment with your vehicle
GO
Clear
Adding to cart… The item has been added
SKU:
CFQW-CRS5290H3D
UPC:
793348024004
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Eagle - CRS5290H3D

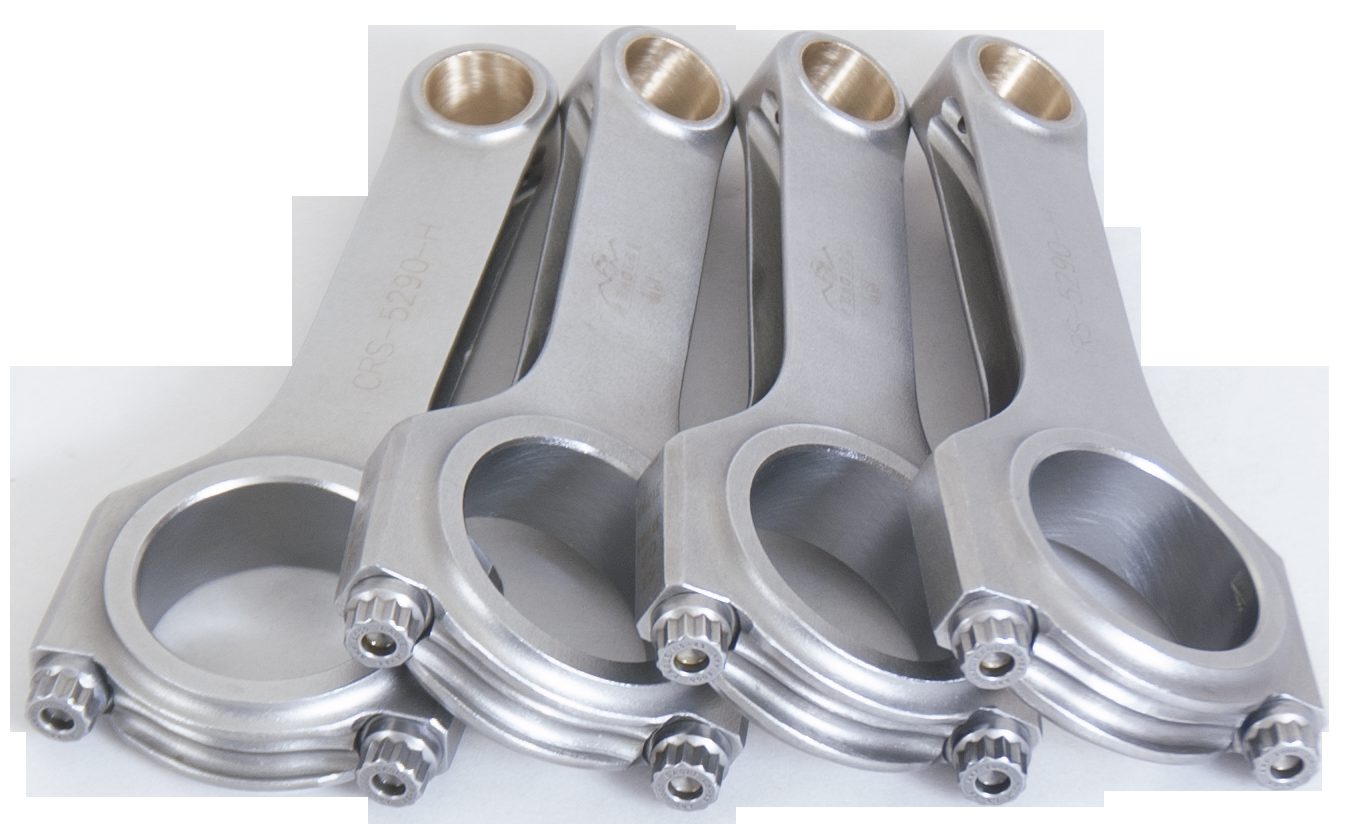

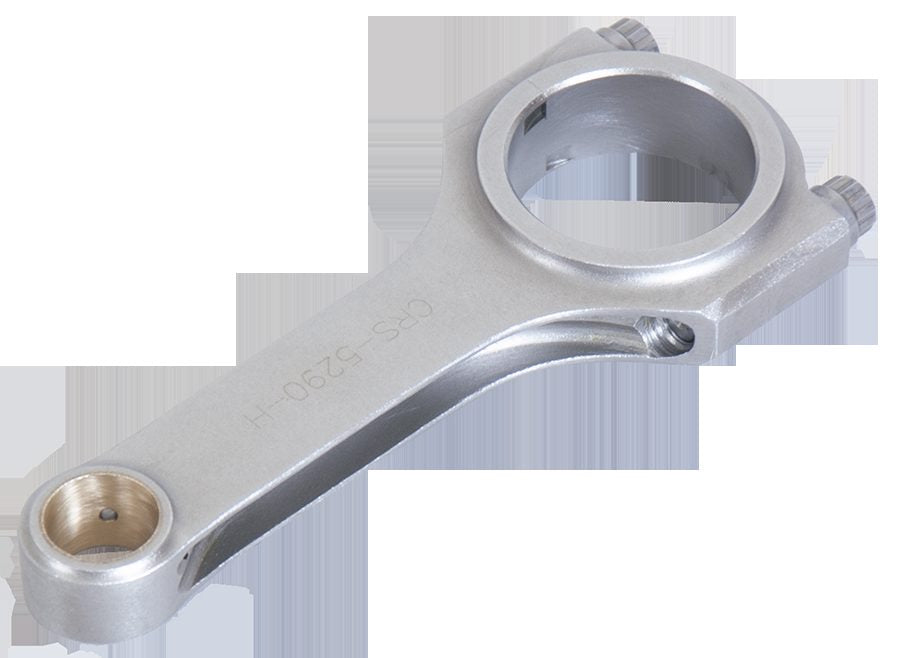

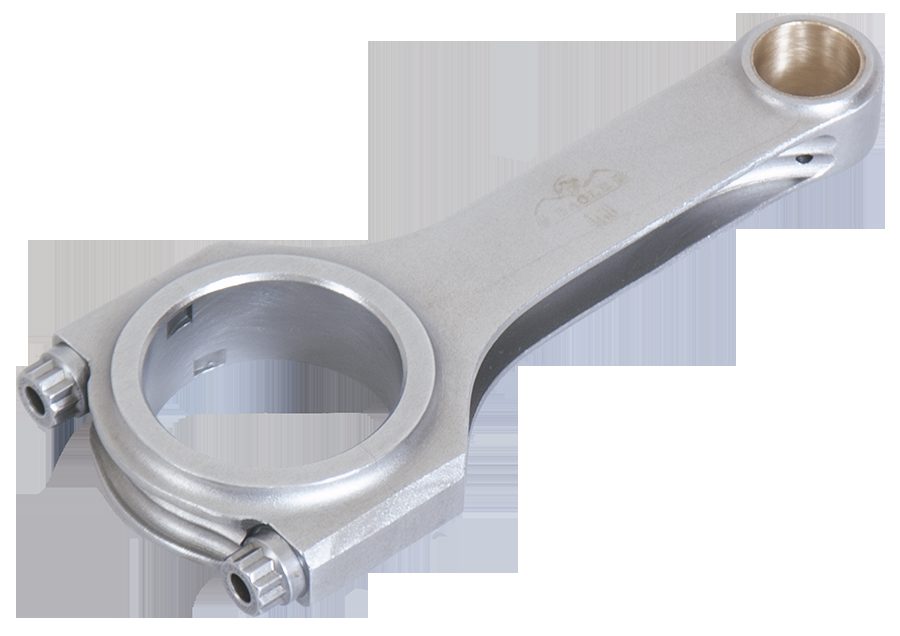

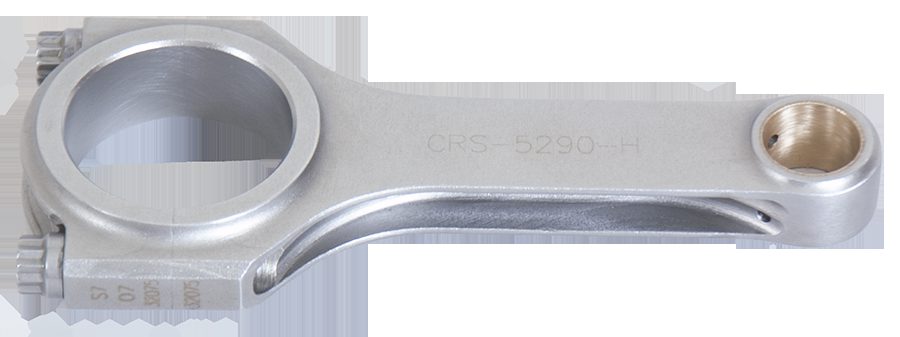

Forged 4340 Steel H-Beam Rods - HONDA B16A.

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

Big End Width: 0.935 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.29 in
Housing Bore: 1.89 in
Length Center Bore To Center Bore: 134.4
Material: Forged 4340 Steel
Pin End Width: 0.785 in
Pin Size: 0.826 in
Rod Journal: 1.771 in

Year
Make
Model
Submodel
Engine
1999 - 2000
Honda
Civic
Si
1.6L
1994 - 1997
Honda
Civic del Sol
VTEC
1.6L
