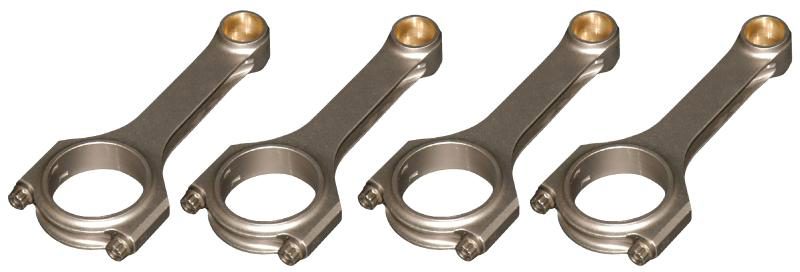

Eagle CRS5090F3D2000 - Ford 302 Forged 4340 Steel H-Beam Connecting Rods w/ ARP 2000 Bolts (Set of 8)

Eagle CRS5090F3D2000 - Ford 302 Forged 4340 Steel H-Beam Connecting Rods w/ ARP 2000 Bolts (Set of 8)

Eagle | CRS5090F3D2000
SKU: CFQW-CRS5090F3D2000
$720.99 USD
$800.99 USD $720.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle CRS5090F3D2000 - Ford 302 Forged 4340 Steel H-Beam Connecting Rods w/ ARP 2000 Bolts (Set of 8)

4340 Rod 5.090" Rod ARP 2000 BOLT

Forged 4340 Steel H-Beam Rods - Ford 302, ARP 2000 BOLTS.

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

Big End Width: 0.8315 in
Bolts: 7/16 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.09 in
Housing Bore: 2.2394 in
Length Center Bore To Center Bore: 5.09
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.912 in
Rod Journal: 2.123 in
