Eagle CRS5089S3D - 2012+ Subaru BRZ / 12-16 Scion FR-S / 2017+ Toyota 86 4340 H-Beam Connecting Rods (Set of 4)
Eagle CRS5089S3D - 2012+ Subaru BRZ / 12-16 Scion FR-S / 2017+ Toyota 86 4340 H-Beam Connecting Rods (Set of 4)
SKU: CFQW-CRS5089S3D
Regular price
$374.99 USD
Regular price
$406.99 USD
Sale price
$374.99 USD
Shipping calculated at checkout.
9 in stock
Quantity
Couldn't load pickup availability
Eagle CRS5089S3D - 2012+ Subaru BRZ / 12-16 Scion FR-S / 2017+ Toyota 86 4340 H-Beam Connecting Rods (Set of 4)
H-BEAM Rod FRS/BRZ

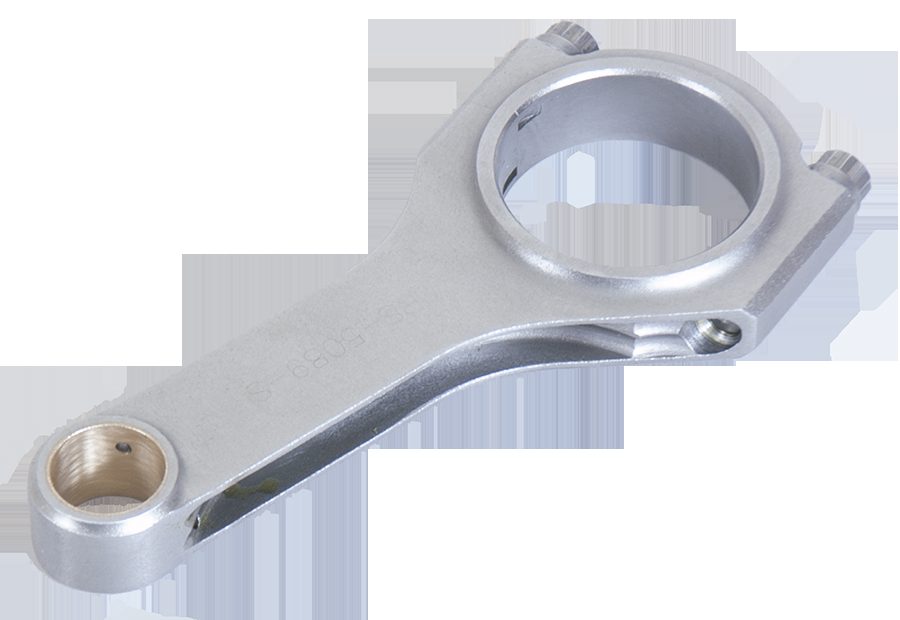

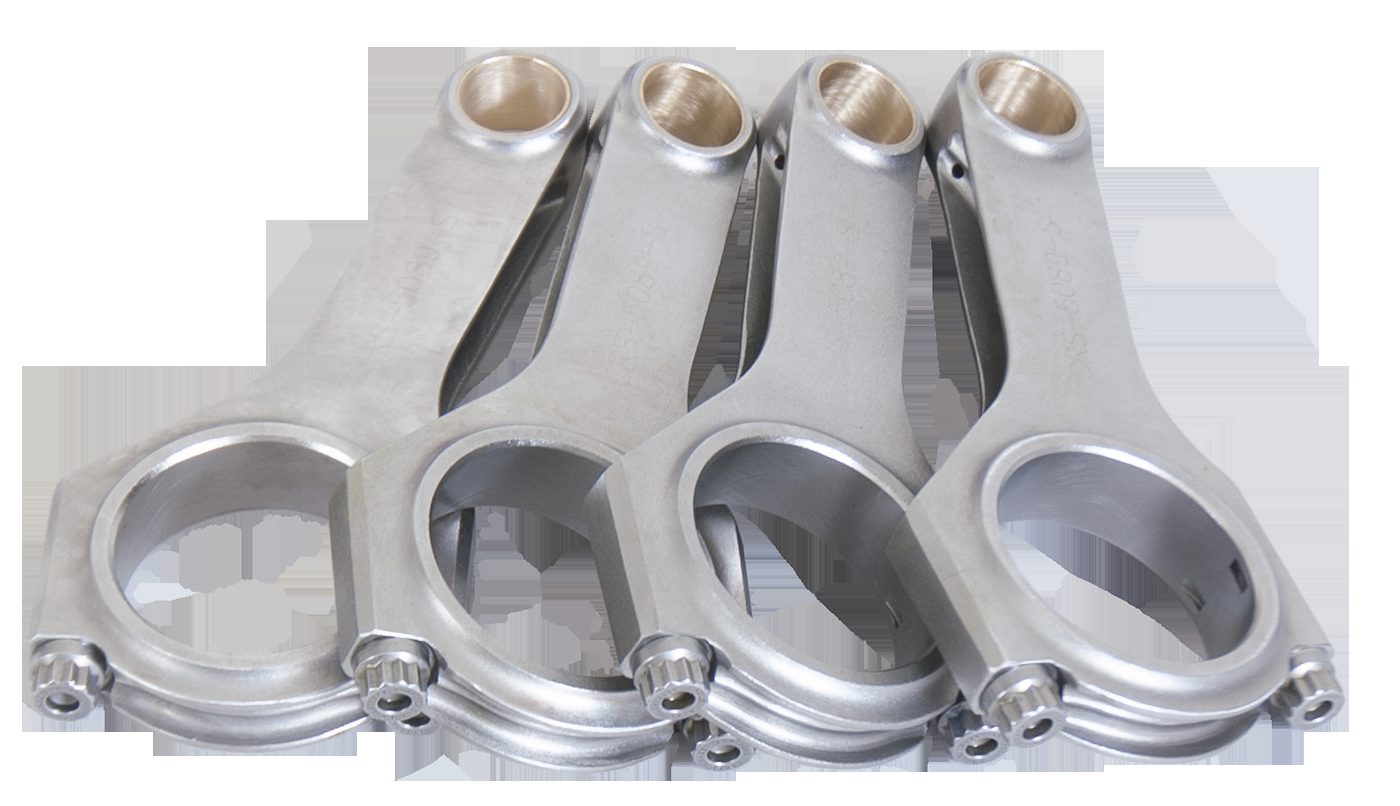

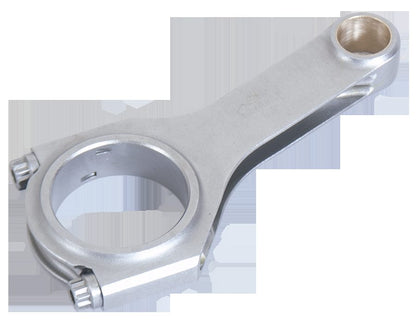

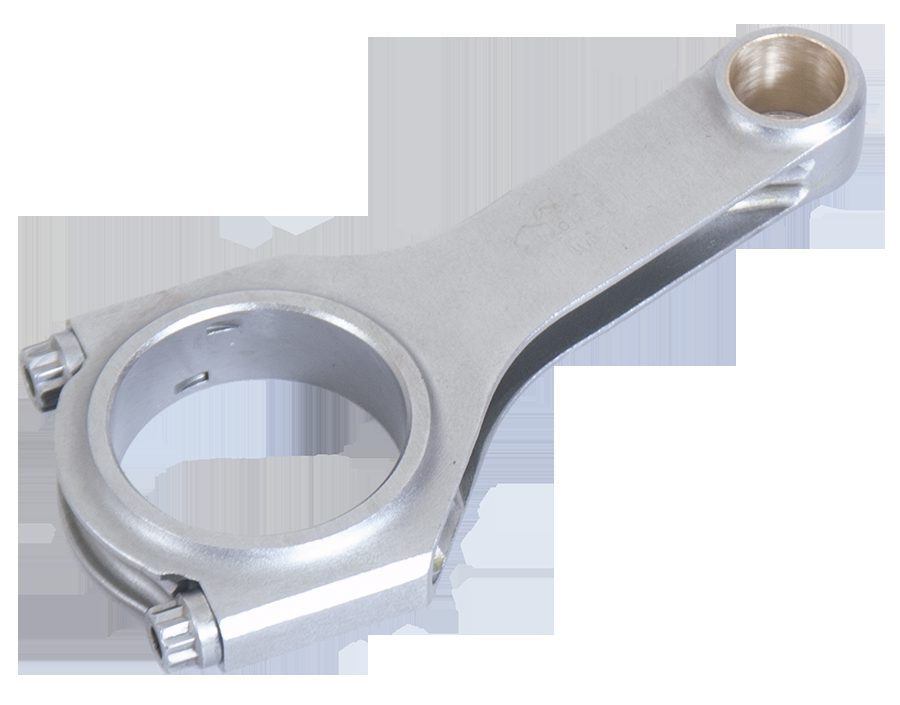

Forged 4340 Steel H-Beam Rods - SUBARU FA20/TOYOTA 4UGSE.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.842 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.089 in
Housing Bore: 2.165 in
Length Center Bore To Center Bore: 129.3
Material: Forged 4340 Steel
Pin End Width: 0.842 in
Pin Size: 0.906 in
Rod Journal: 2.047 in
