Eagle - CRS4783N3D

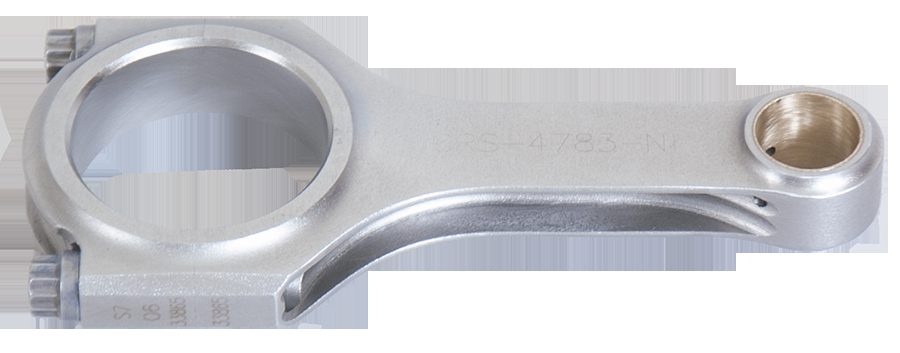

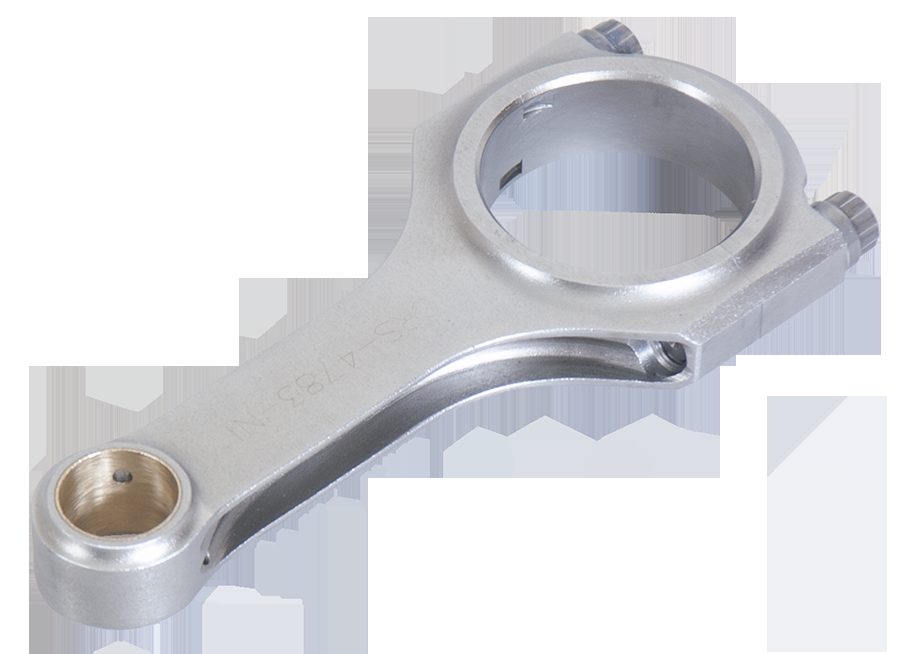

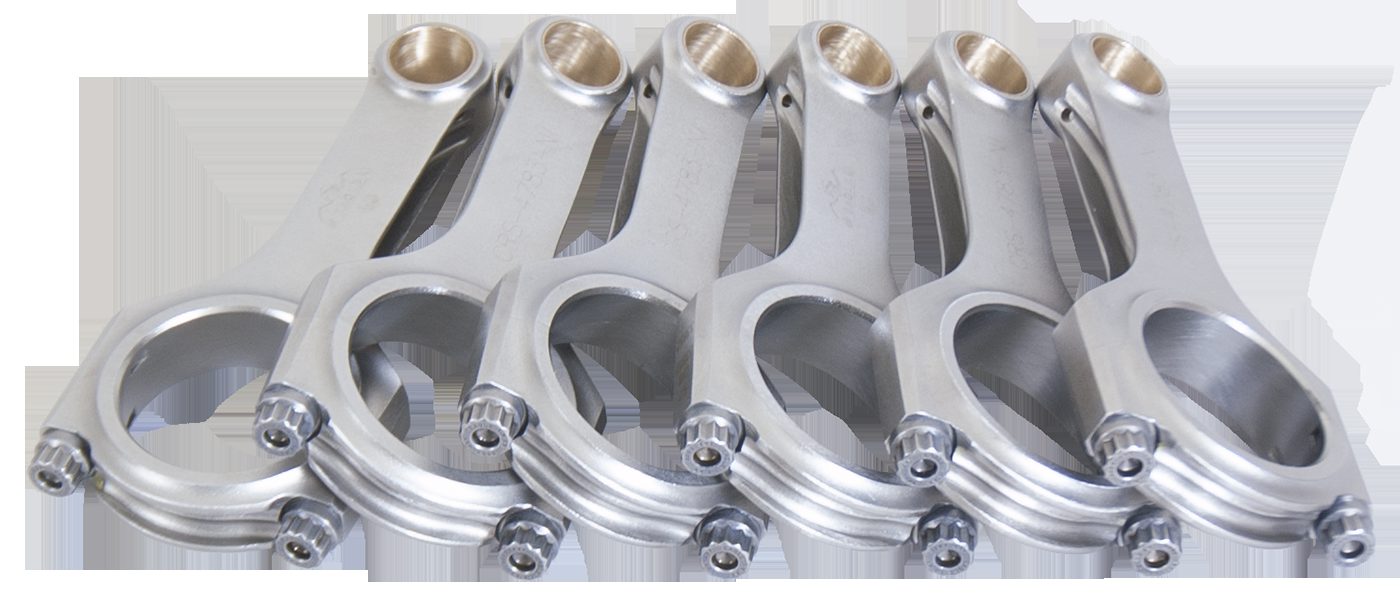

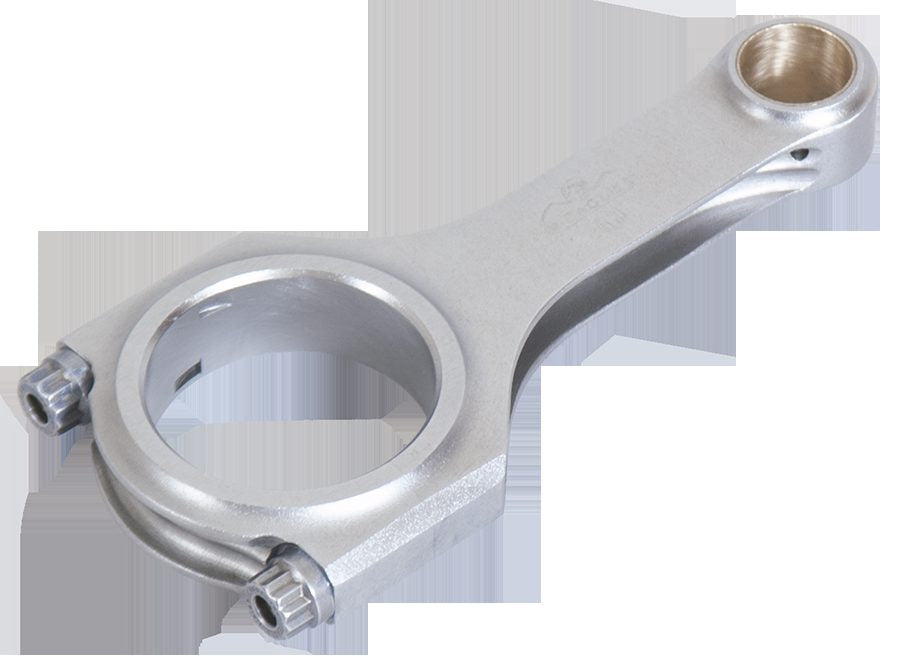

Forged 4340 Steel H-Beam Rods - NISSAN RB26.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.858 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 4.783 in
Housing Bore: 2.007 in
Length Center Bore To Center Bore: 121.5
Material: Forged 4340 Steel
Pin End Width: 0.858 in
Pin Size: 0.826 in
Rod Journal: 1.889 in
