Eagle B13555L06068 - Chevy LT1350 1Pc 3.750in Crank 5.700in I-Beam Rods 4.060in Pistons 168 Tooth FP Blncd Assembly

Eagle B13555L06068 - Chevy LT1350 1Pc 3.750in Crank 5.700in I-Beam Rods 4.060in Pistons 168 Tooth FP Blncd Assembly

Eagle | B13555L06068
SKU: CFQW-B13555L06068
$1,515.99 USD
$1,629.99 USD $1,515.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle B13555L06068 - Chevy LT1350 1Pc 3.750in Crank 5.700in I-Beam Rods 4.060in Pistons 168 Tooth FP Blncd Assembly

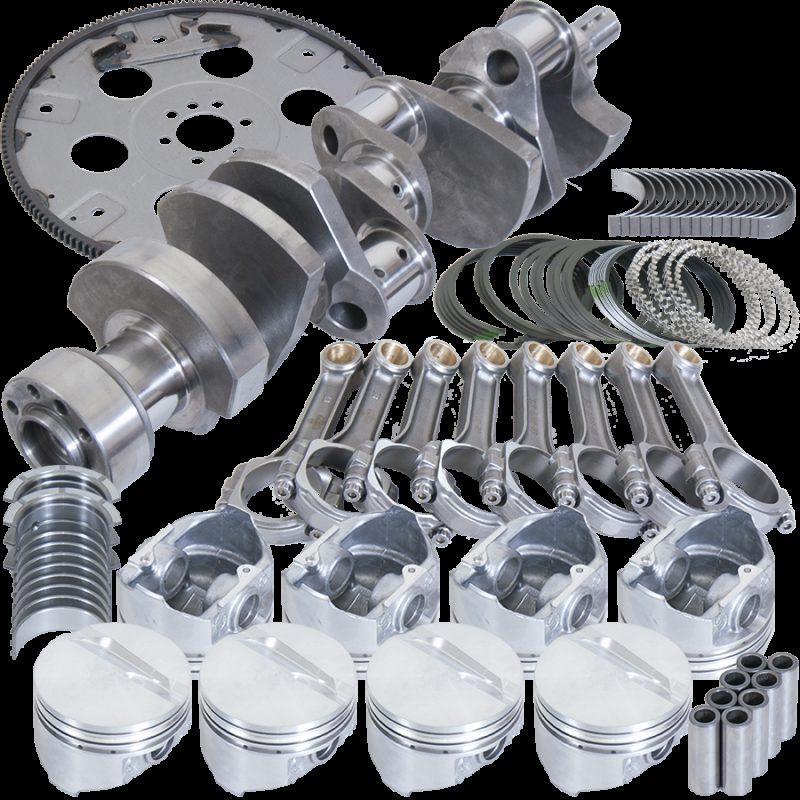

Balanced Street & Strip Assembly Chevy LT1,350 1PC

BALANCED 3.750" Cast Crank,5.700" I-BEAM Rods,3/8" ARP 8740 BOLTS,HYPEREUTECTIC KB -7CC FLAT TOP 4.060" PISTONS,PLASMA-MOLY STANDARD GAP RINGS,KING SI Rod/MAIN BEARINGS, PIONEER DAMPER & 168 TOOTH FLEXPLATE.

Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.

Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 3.750 in
Cylinder Bore Diameter: 4.060 in
Damper Included: Yes
Flexplate/Flywheel Included: 168 Tooth Flexplate
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: KB
Piston Dome Volume: -7cc
Piston Face Type: flat top
Piston Material: hypereutectic Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: Standard
Piston Ring Thickness: 5/64 in, 5/64 in, 3/16 in
Piston Type: Flat Top Hypereutectic
Product Line: Street & Strip
Rod Bearing Type: O.E. replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
Assembly Balanced: Yes
Balance Type: combination (internal front, External rear)
Bore: 4.06
Connecting Rod Bolt Diameter: 3/8 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
Connecting Rod Length: 5.700 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.449 in
Crankshaft Material: Cast Steel
