Eagle - B13005L03068

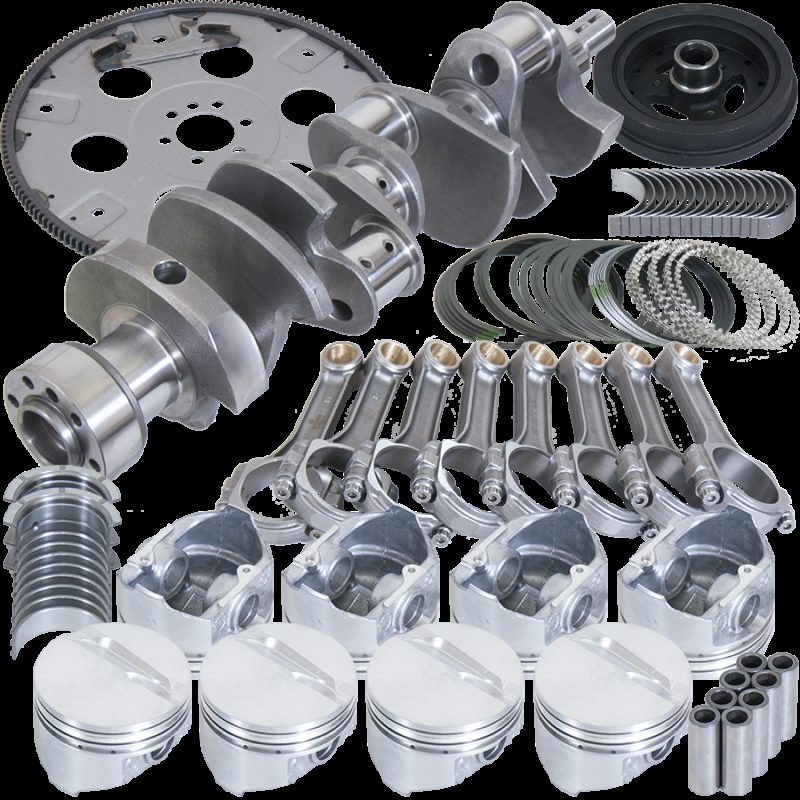

Balanced Street & Strip Assembly Chevy 350 1PC
BALANCED 3.750" Cast Crank,5.700" I-BEAM Rods,3/8" ARP 8740 BOLTS,HYPEREUTECTIC KB -7CC FLAT TOP 4.030" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING SI Rod/MAIN BEARINGS, DAMPER, AND 168 TOOTH FLEXPLATE.
Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.
Assembly Balanced: Yes
Assembly Type: Balanced Street & Strip Assembly
Balance Type: External
Bore: 4.03
Connecting Rod Bolt Diameter: 3/8 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
Connecting Rod Length: 5.700 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.449 in
Crankshaft Material: Cast Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 3.750 in
Cylinder Bore Diameter: 4.030 in
Damper Included: Yes
Flexplate/Flywheel Included: 168 Tooth Flexplate
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: KB
Piston Dome Volume: -7cc
Piston Face Type: flat top
Piston Material: hypereutectic Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: Standard
Piston Ring Thickness: 5/64 in, 5/64 in, 3/16 in
Piston Type: Flat Top Hypereutectic
Product Line: Street & Strip
Rod Bearing Type: O.E. replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
