Eagle 534740006100 - Chevy LS1 58 Tooth Reluctor 4140 Forged Crankshaft
4140 FORGED CRANK LS2 58T 4.000 STROKE

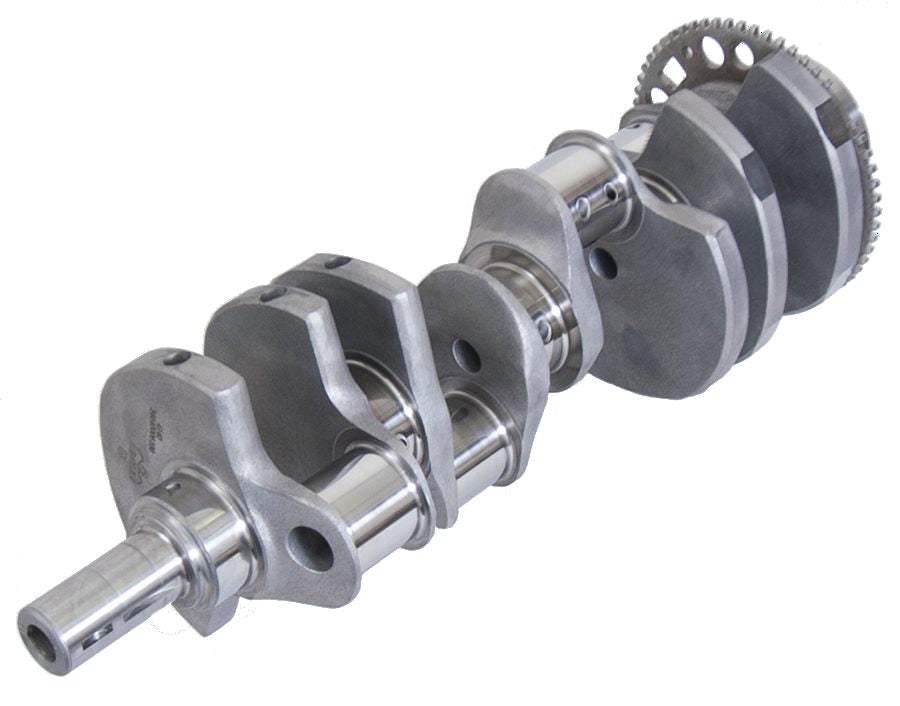

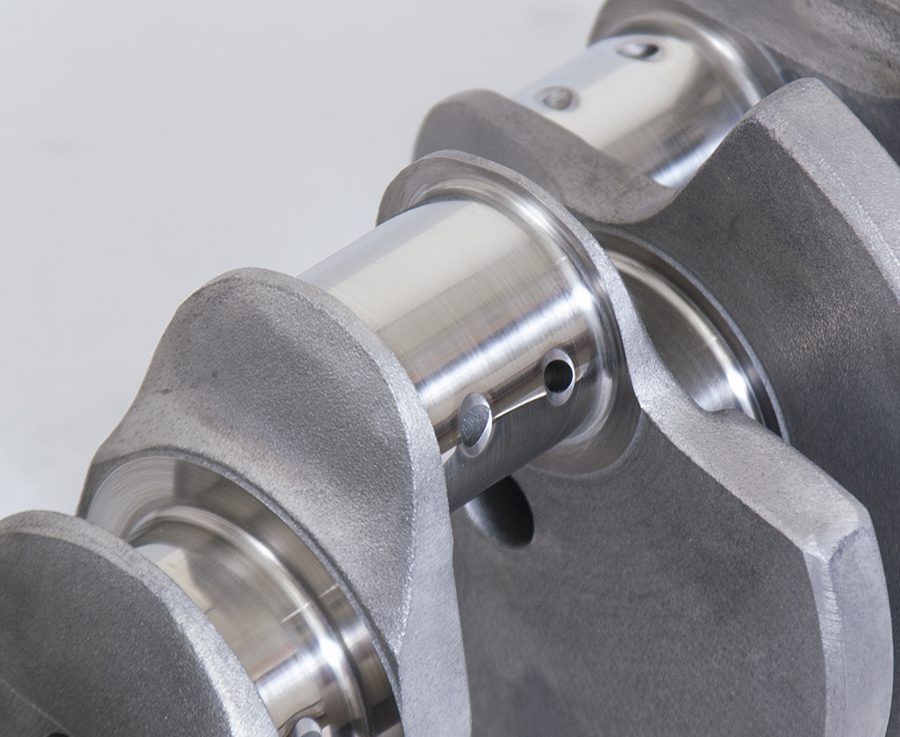

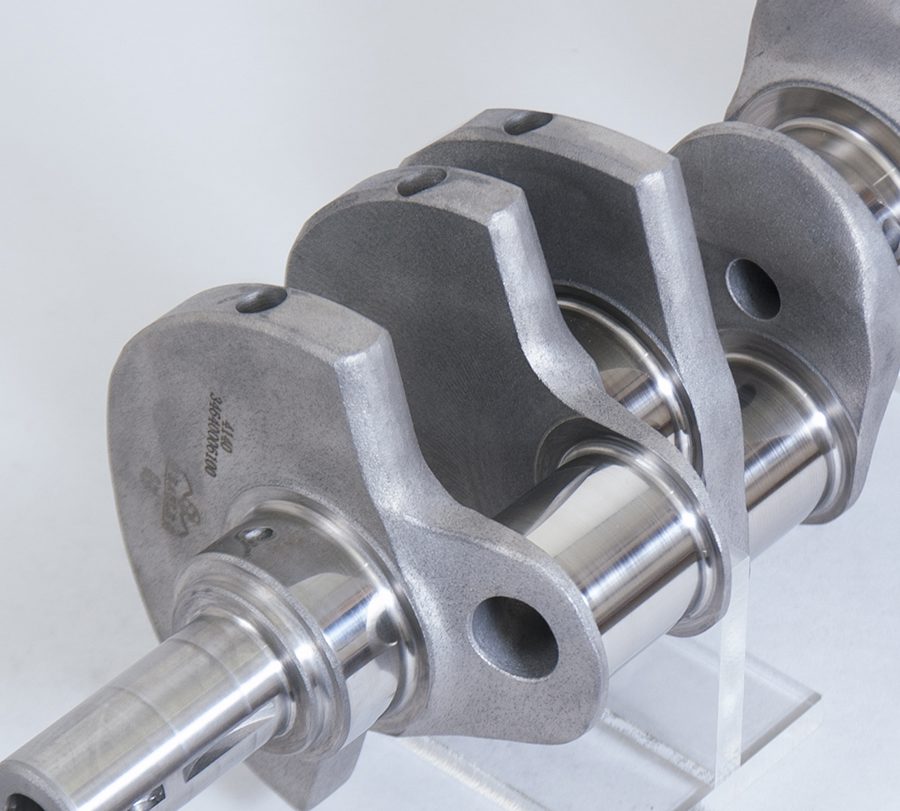

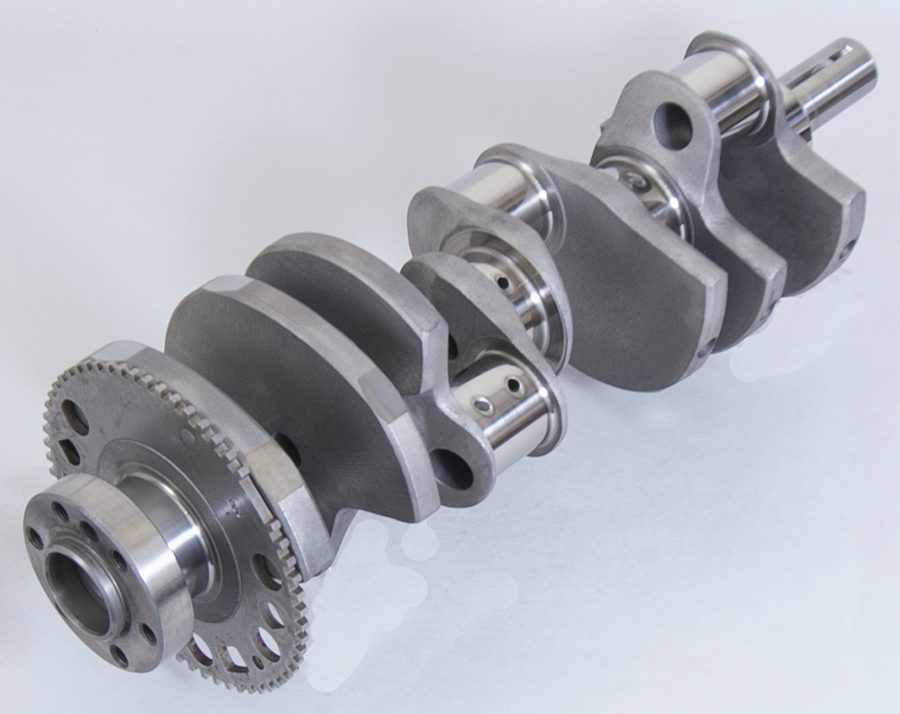

Forged 4140 Steel Crank - CHEVROLET LS, 4.000" STROKE, 58 TOOTH RELUCTOR.
Eagle forged 4140 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for competition use. Includes 58 tooth reluctor.
Balance Type: Internal
Crankshaft Stroke: 4.000 in
Engine Stroke: 4
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.559 in
Material: Forged 4140 steel
Minimum Rod Length: 6.125 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Width: 1.900 in
Rod Journal: 2.1 in.
Snout Diameter: 1.48 in
Target Bobweight: 1800g
