Eagle 445645006535 - Chevy BB 1Pc Rear Seal 4.500in Stroke Int Balance Center Counterweight Forged Steel Crankshaft

Eagle 445645006535 - Chevy BB 1Pc Rear Seal 4.500in Stroke Int Balance Center Counterweight Forged Steel Crankshaft

Eagle | 445645006535
SKU: CFQW-445645006535
Regular price $1,158.99 USD
Regular price $1,298.99 USD Sale price $1,158.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

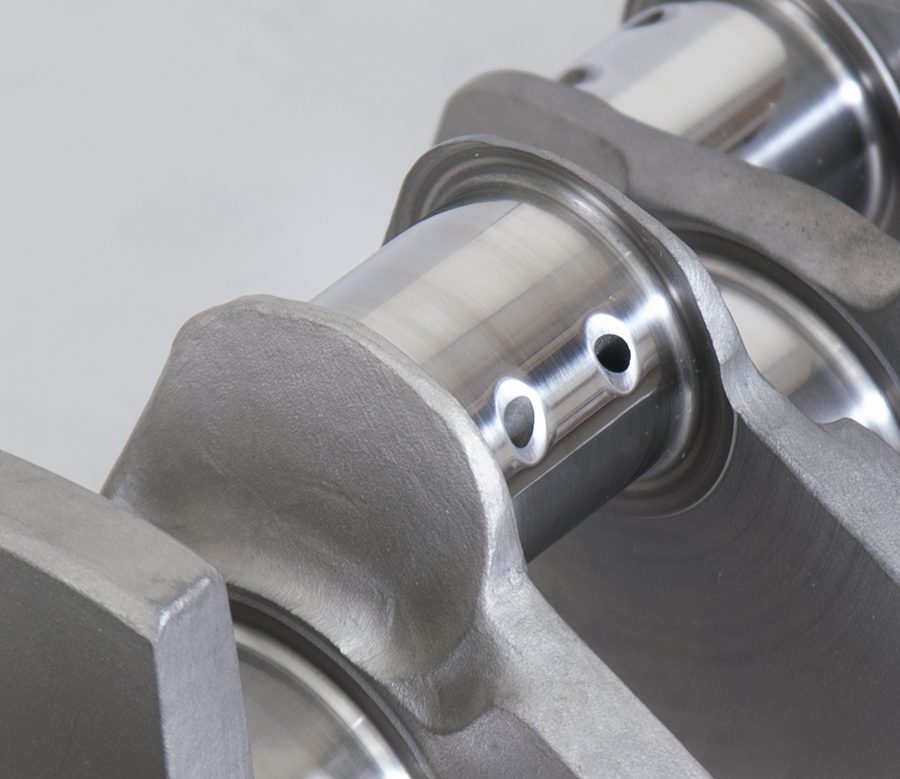

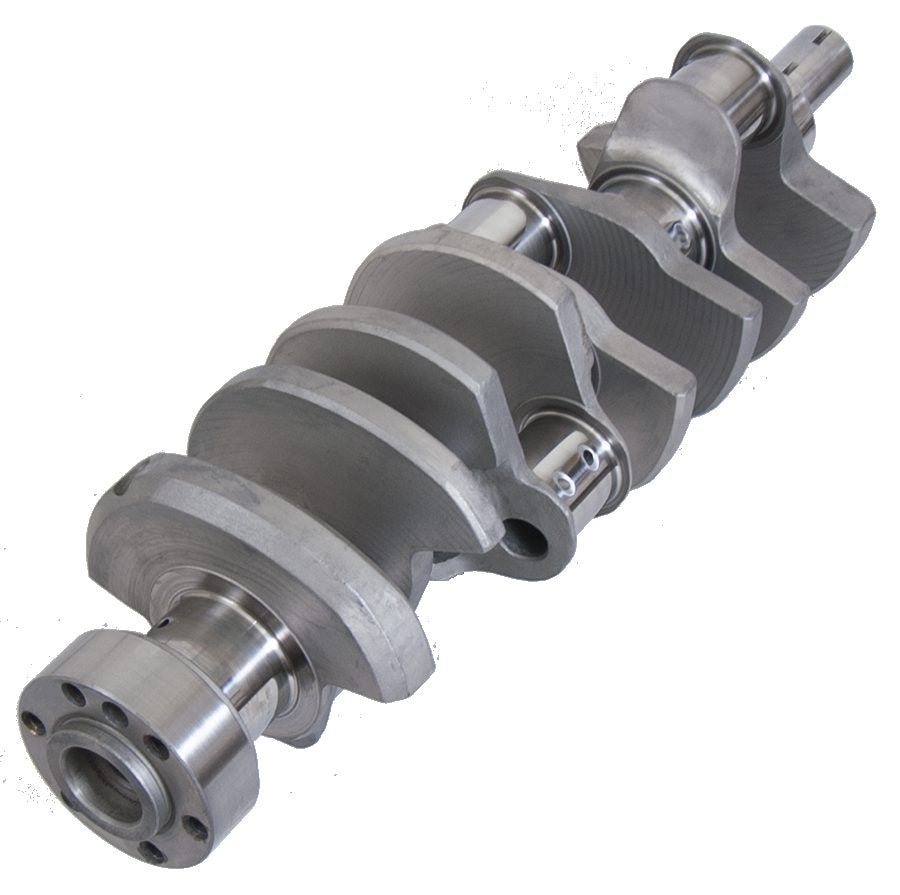

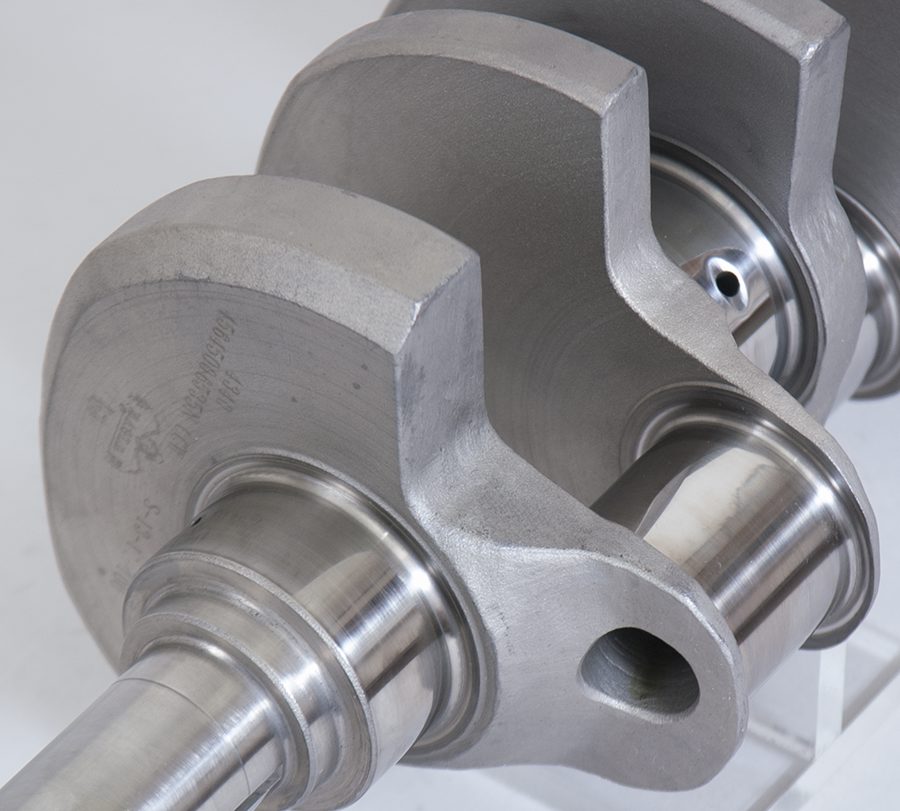

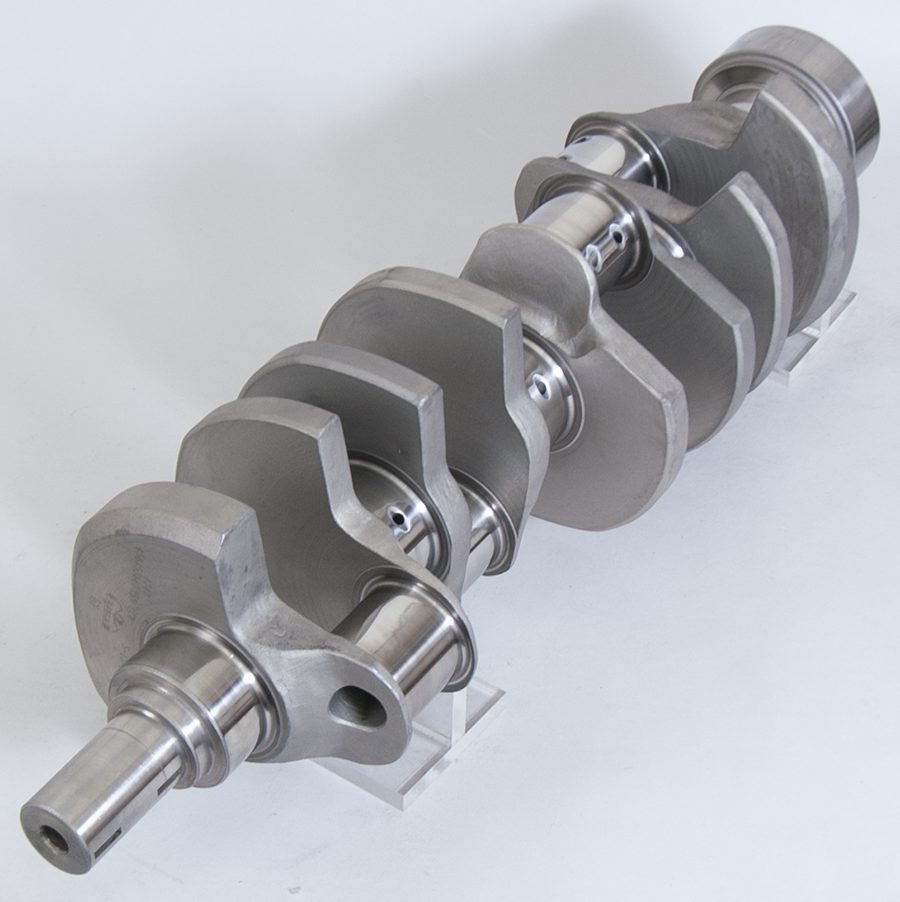

Eagle 445645006535 - Chevy BB 1Pc Rear Seal 4.500in Stroke Int Balance Center Counterweight Forged Steel Crankshaft

4340 CRANK CHEVY BB INT BAL1 PC 4.500"

Forged 4340 Steel Crank - Chevrolet 454, 1PC REAR SEAL, 4.500" Stroke, CENTER COUNTERWEIGHTED, INTERNAL BALANCE.

Eagle forged 4340 steel center-counterweighted Cranks feature a non-twist forging, center counterweights for added stability at high RPM and high-power applications. 125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Balance Type: Internal
Crankshaft Stroke: 4.500 in
Engine Stroke: 4.5
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.749 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.535 in
Pilot Bore Diameter: 1.094 in
Rear Seal Diameter: call
Rod Journal Width: 2.000 in
Rod Journal: 2.2 in.
Snout Diameter: 1.6 in.
Target Bobweight: 2350g
