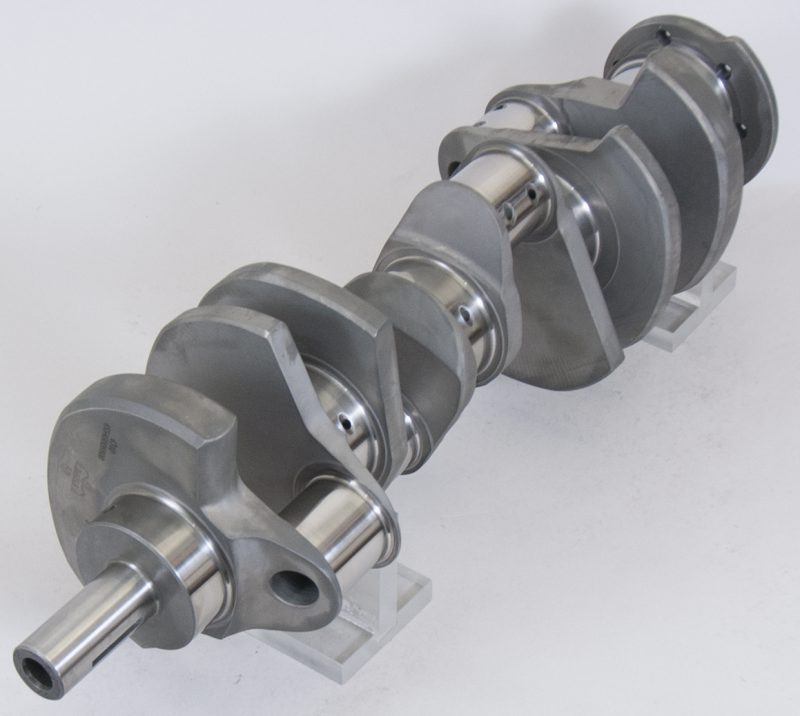

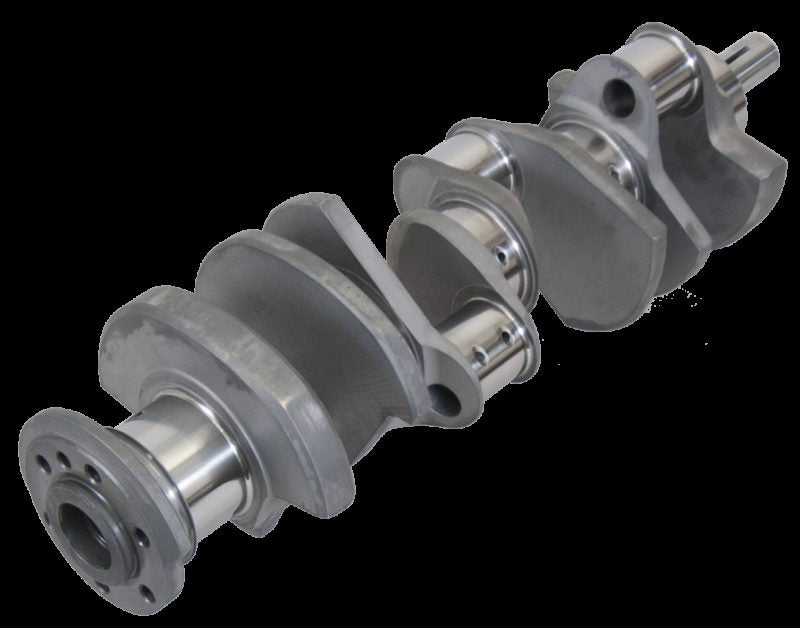

Eagle 445545006800 - Pontiac 455 4.500in Stroke 2.200in Rod Journals Forged 4340 Steel Crankshaft

Eagle 445545006800 - Pontiac 455 4.500in Stroke 2.200in Rod Journals Forged 4340 Steel Crankshaft

Eagle | 445545006800
SKU: CFQW-445545006800
Regular price $1,305.99 USD
Regular price $1,465.99 USD Sale price $1,305.99 USD
Sale Sold out
Shipping calculated at checkout.

8 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle 445545006800 - Pontiac 455 4.500in Stroke 2.200in Rod Journals Forged 4340 Steel Crankshaft

4340 CRANK PONTIAC 455 4.500" STROKE

Forged 4340 Steel Crank - Pontiac 455, 4.500" Stroke, 2.200" Rod JournalS.

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Balance Type: Internal
Crankshaft Stroke: 4.500 in
Engine Stroke: 4.5
Flywheel Bolt Count: 6
Flywheel Register Diameter: 2.75 in
Intended Balance: internal
Main Journal: 3.25 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.800 in
Pilot Bore Diameter: 1.383 in
Rear Seal Diameter: call
Rod Journal Diameter: 2.2
Rod Journal Width: 2.000 in
Rod Journal: 2.2 in.
Snout Diameter: 1.373 in
Target Bobweight: 2280g
