Eagle 444242507100 - Chrysler RB 4340 Crank 4.25 Stroke 2.2 Rod Pin 8 Bolt Flange
Eagle 444242507100 - Chrysler RB 4340 Crank 4.25 Stroke 2.2 Rod Pin 8 Bolt Flange
SKU: CFQW-444242507100
Regular price
$1,184.99 USD
Regular price
$1,280.99 USD
Sale price
$1,184.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability
Eagle 444242507100 - Chrysler RB 4340 Crank 4.25 Stroke 2.2 Rod Pin 8 Bolt Flange

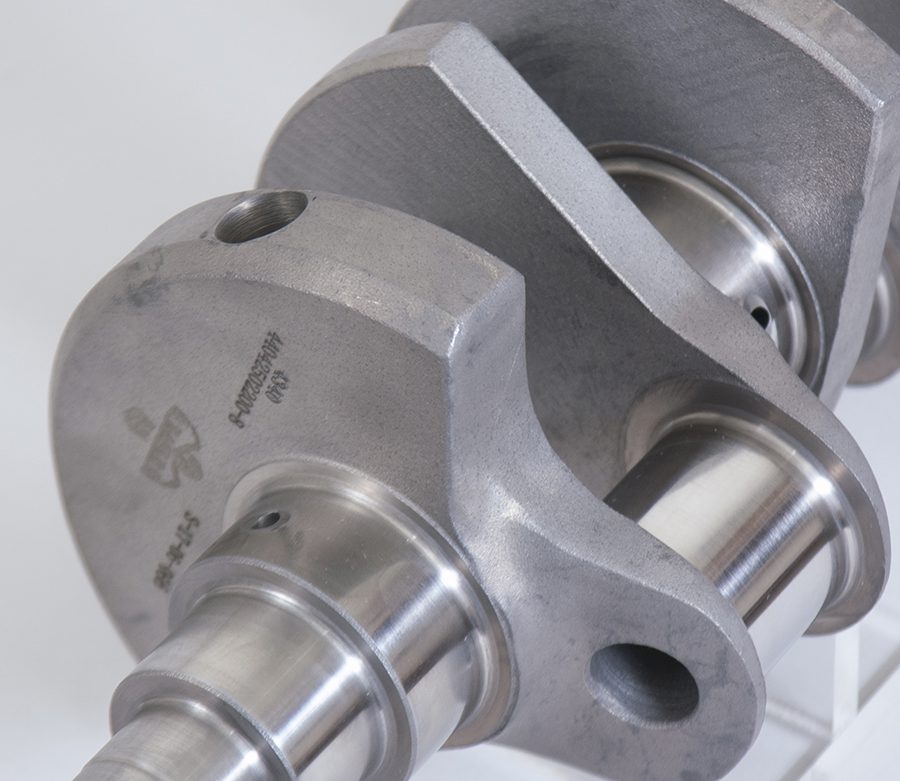

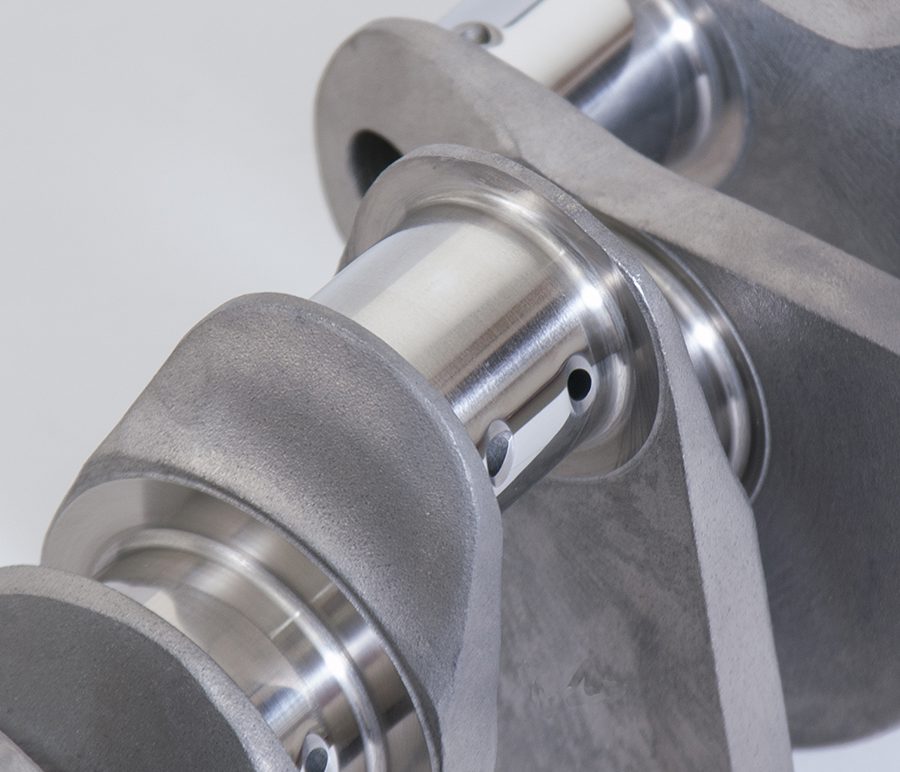

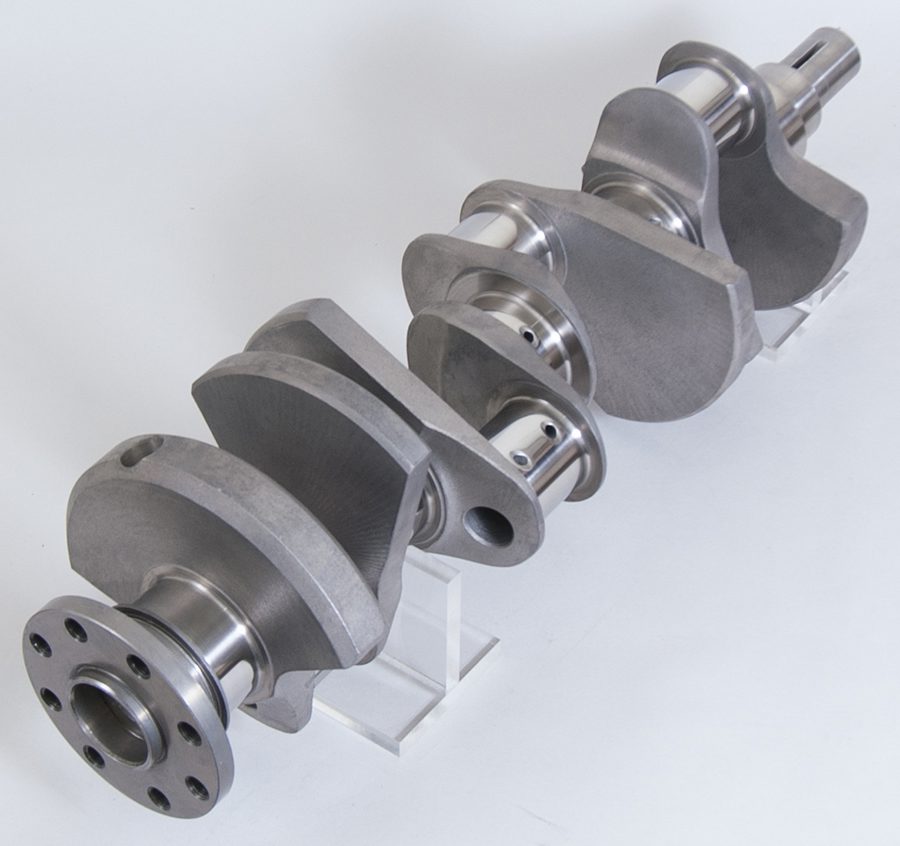

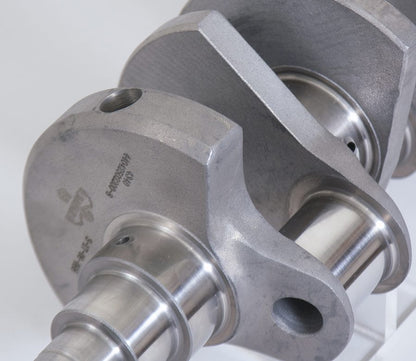

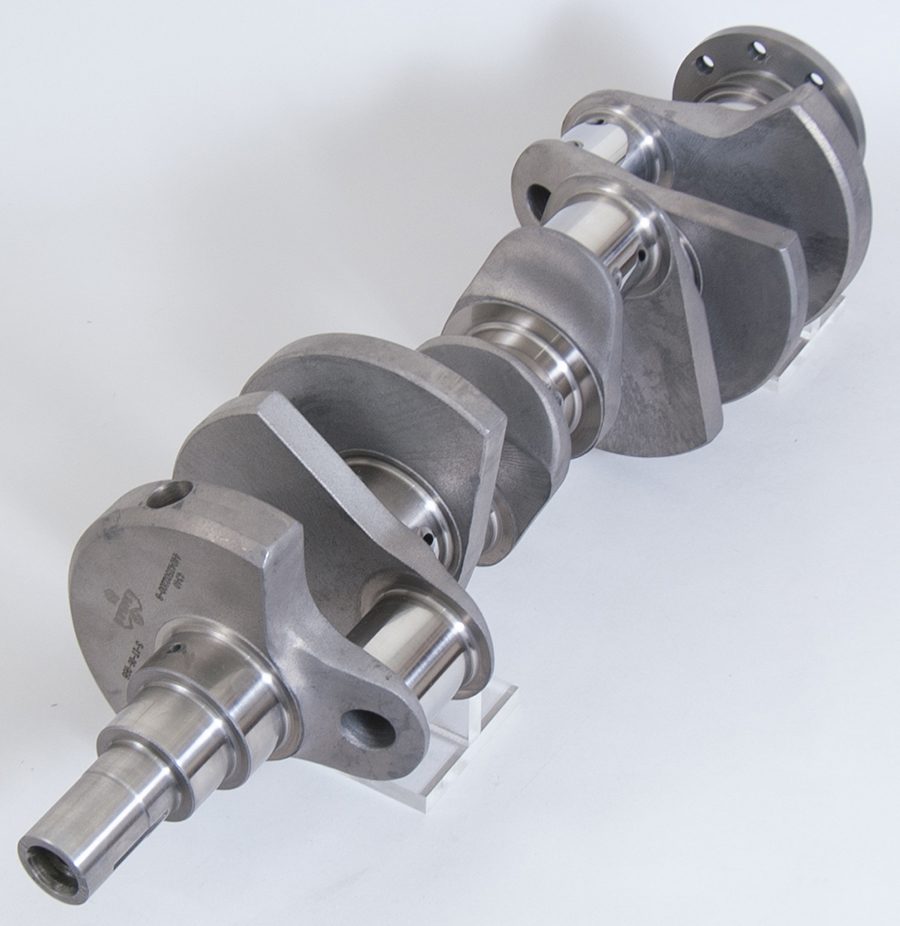

Crankshaft - 4.250 in Stroke - Internal Balance - Forged Steel - 2-Piece Seal - Mopar RB-Series / 426 Hemi - 8-Bolt Flange - Each
Forged 4340 Steel Crank - Chrysler RB, 4.250" Stroke, 2.200" Rod JournalS, 8 BOLT REAR FLANGE.
Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Balance Type: Internal
Crankshaft Stroke: 4.250 in
Engine Stroke: 4.25
Flywheel Bolt Count: 8
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.75 in
Material: Forged 4340 Steel
Minimum Rod Length: 7.100 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Width: 2.05 in
Rod Journal: 2.2 in.
Snout Diameter: 1.531 in
Target Bobweight: 2500g
