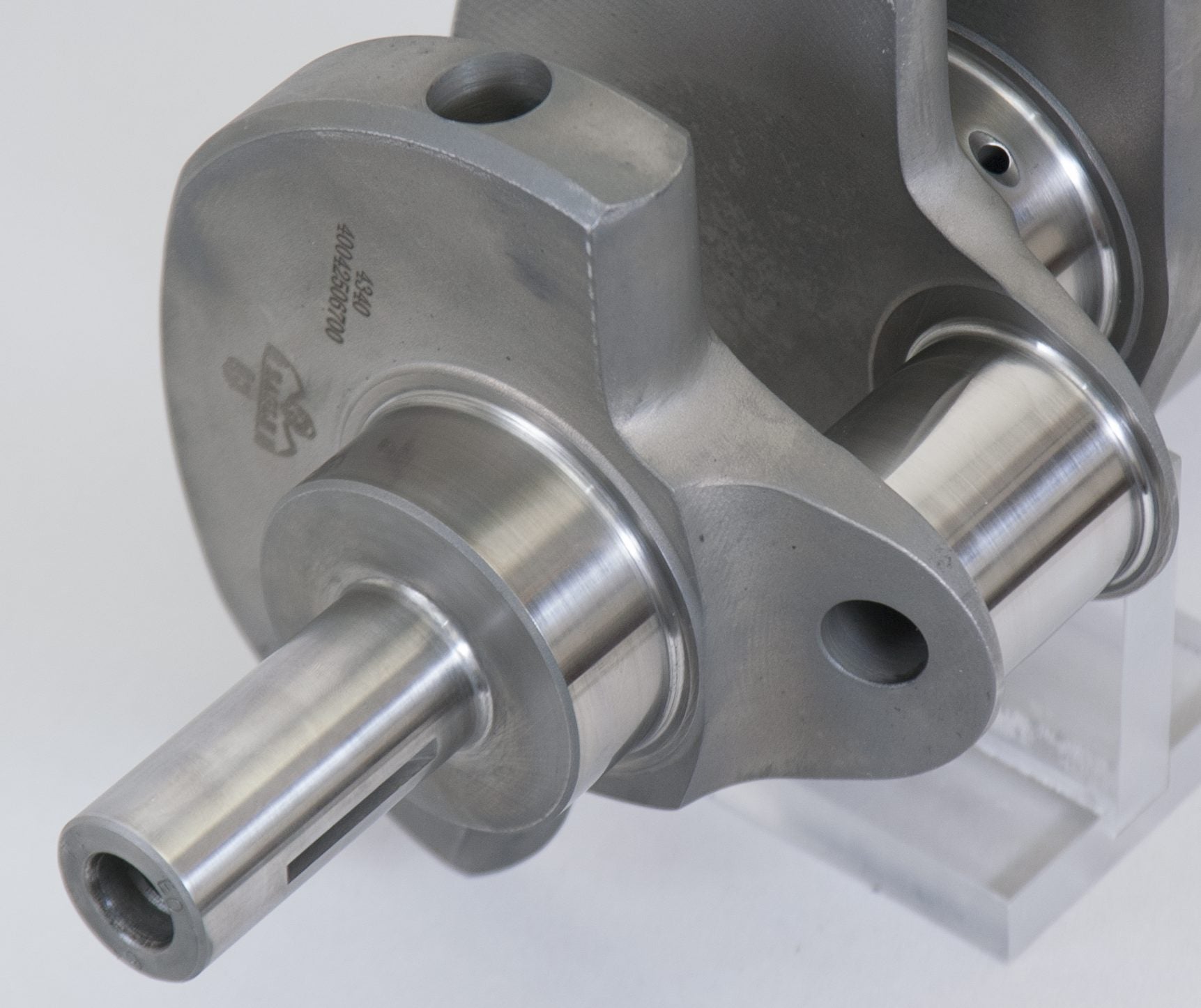

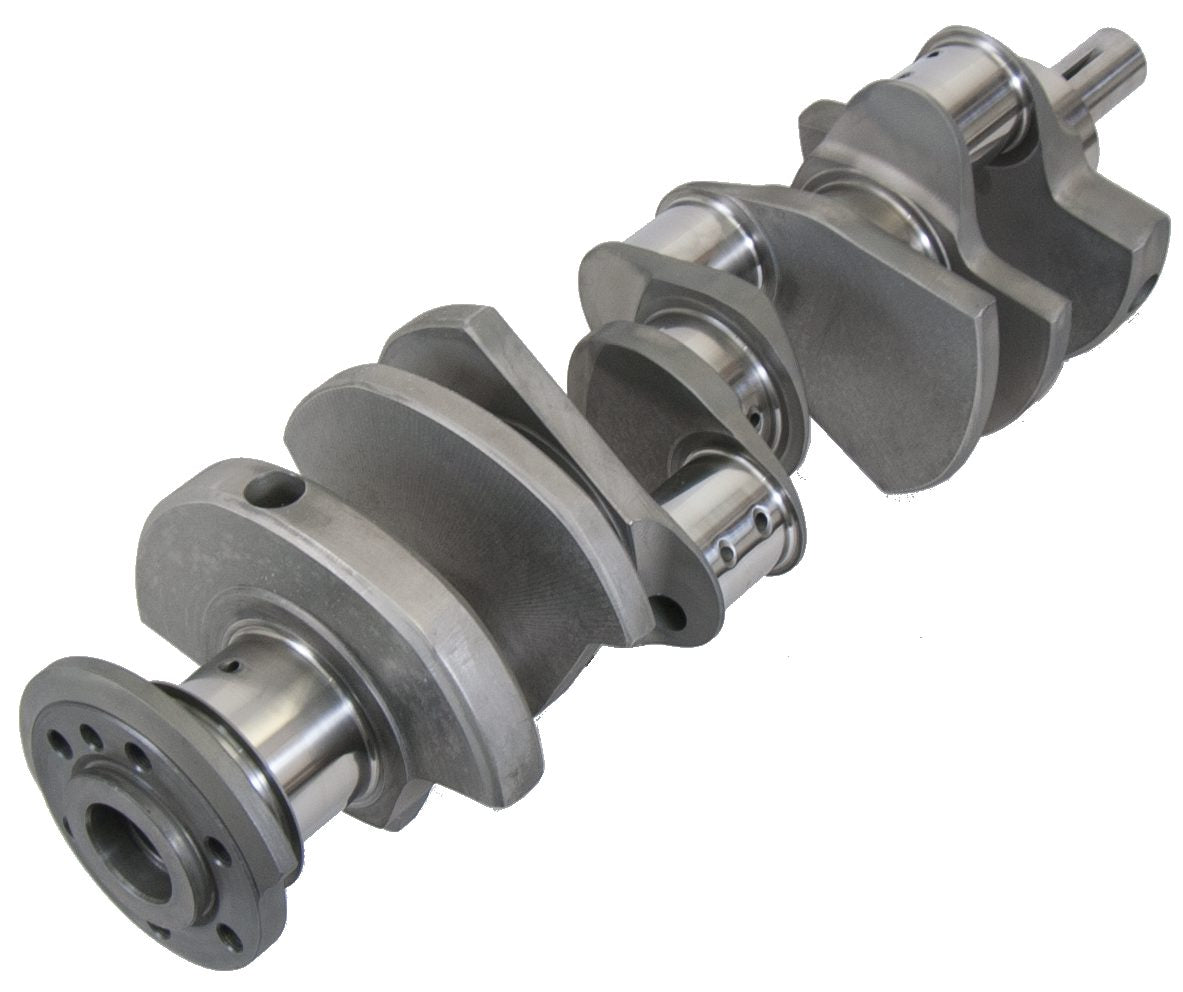

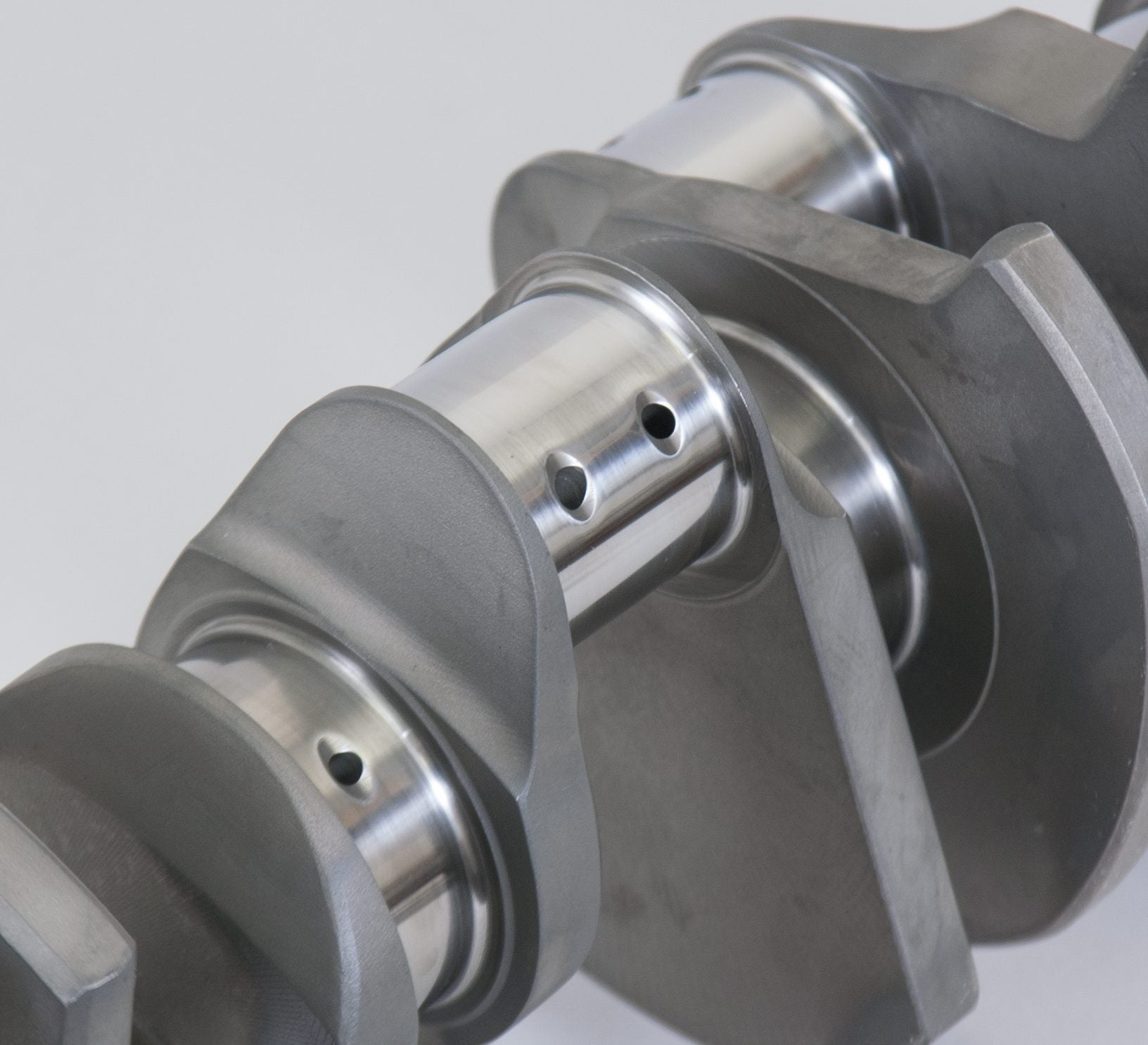

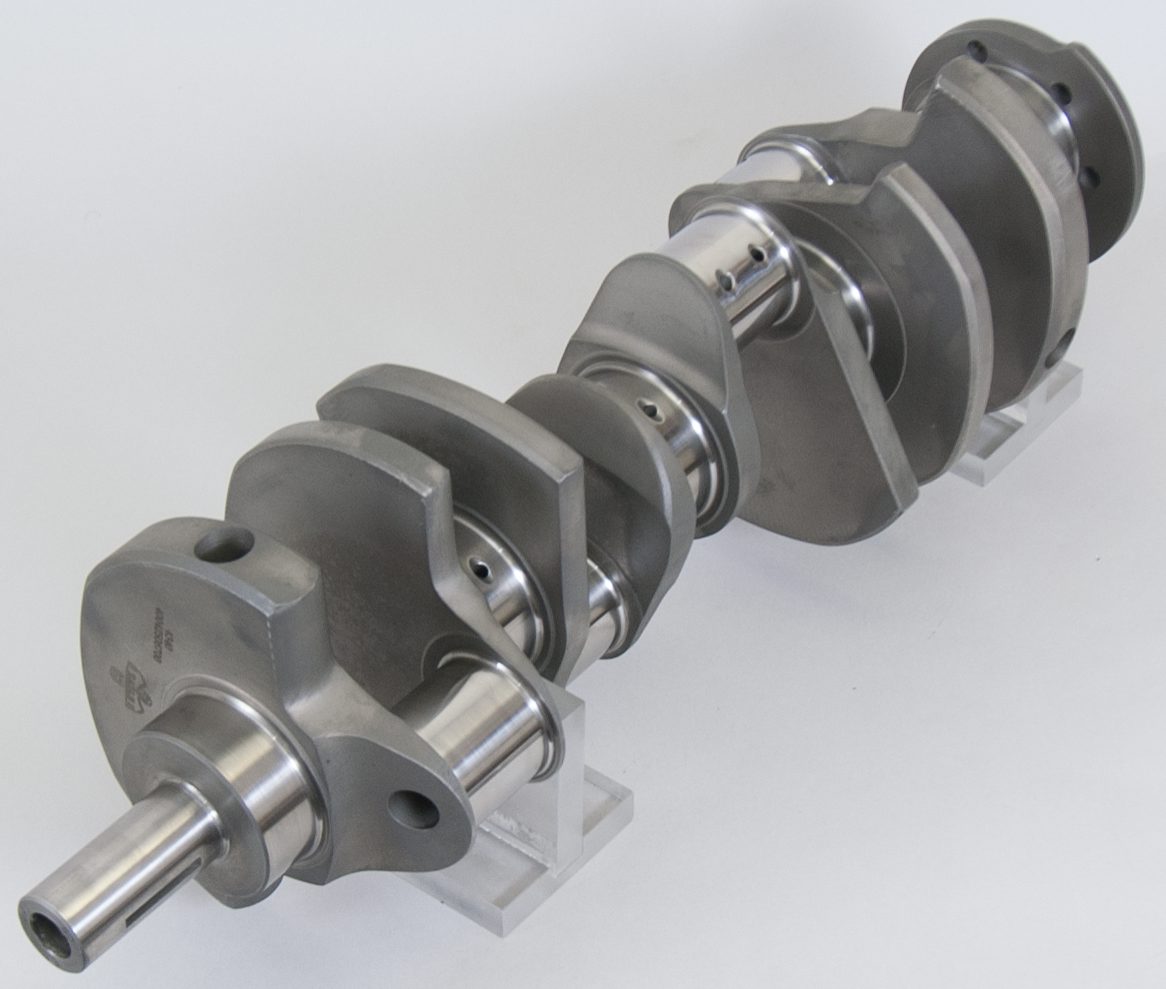

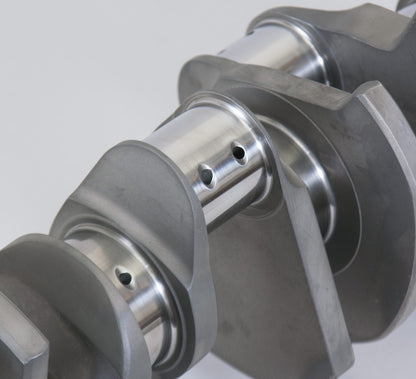

Eagle 440042506700 - Pontiac 400 Forged Steel Crankshaft, 4.2500in Stroke

Eagle 440042506700 - Pontiac 400 Forged Steel Crankshaft, 4.2500in Stroke

Eagle | 440042506700
SKU: CFQW-440042506700
$1,305.99 USD
$1,465.99 USD $1,305.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle 440042506700 - Pontiac 400 Forged Steel Crankshaft, 4.2500in Stroke

Crankshaft - 4.250 in Stroke - Internal Balance - Forged Steel - 2-Piece Seal - Pontiac V8 - Each

Forged 4340 Steel Crank - Pontiac 400, 4.250" Stroke, 2.200" Rod JournalS.

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Balance Type: Internal
Crankshaft Stroke: 4.250 in
Engine Stroke: 4.25
Flywheel Bolt Count: 6
Flywheel Register Diameter: 2.75 in
Intended Balance: internal
Main Journal: 3.000 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.700 in
Pilot Bore Diameter: 1.383 in
Rear Seal Diameter: call
Rod Journal Diameter: 2.2
Rod Journal Width: 2.000 in
Rod Journal: 2.2 in.
Snout Diameter: 1.373 in
Target Bobweight: 2280g
