Eagle - 436035806123
4340 CRANK CHRY 360 3.580" STROKE

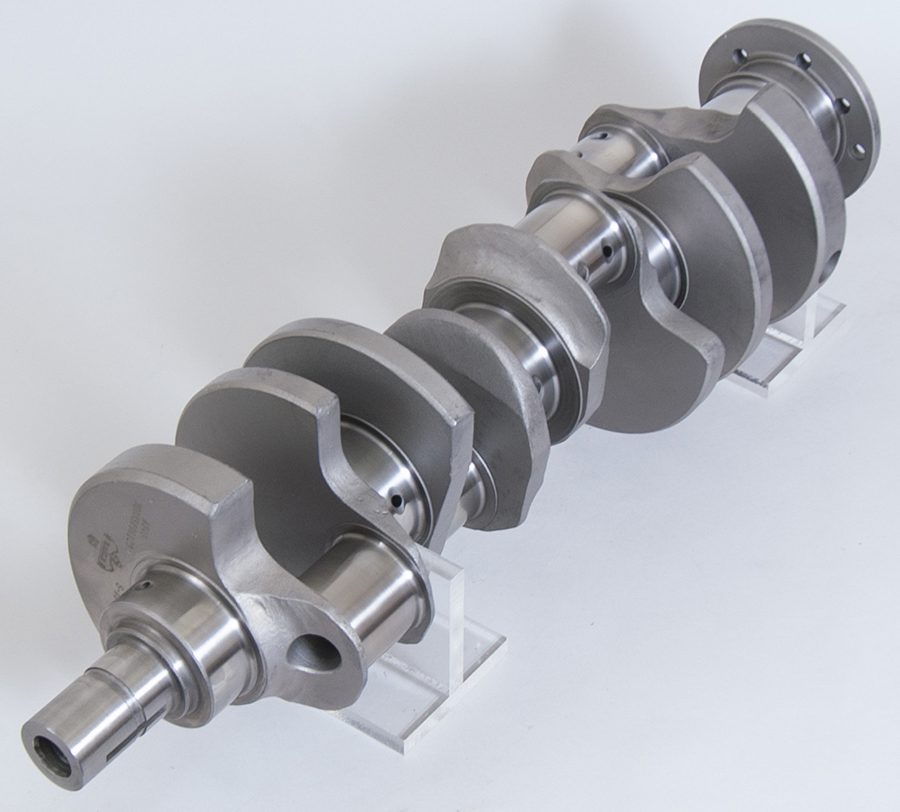

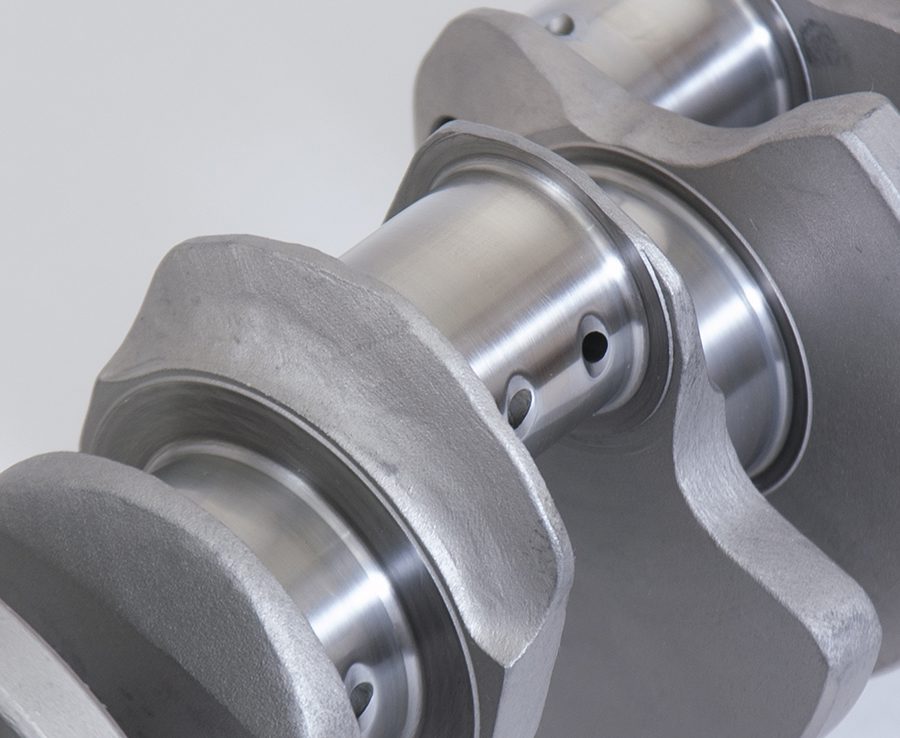

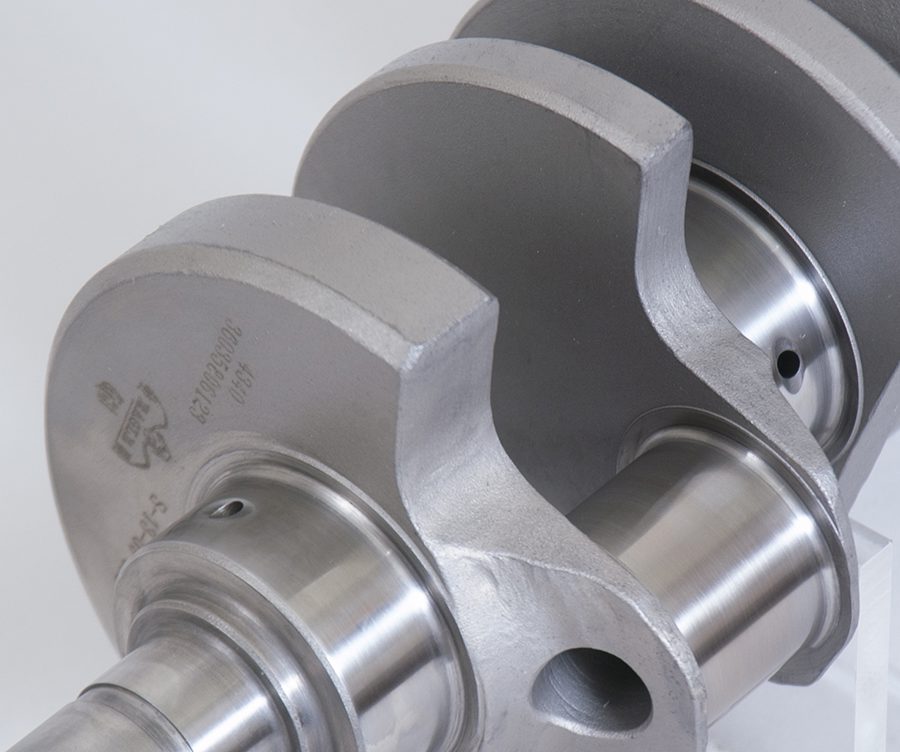

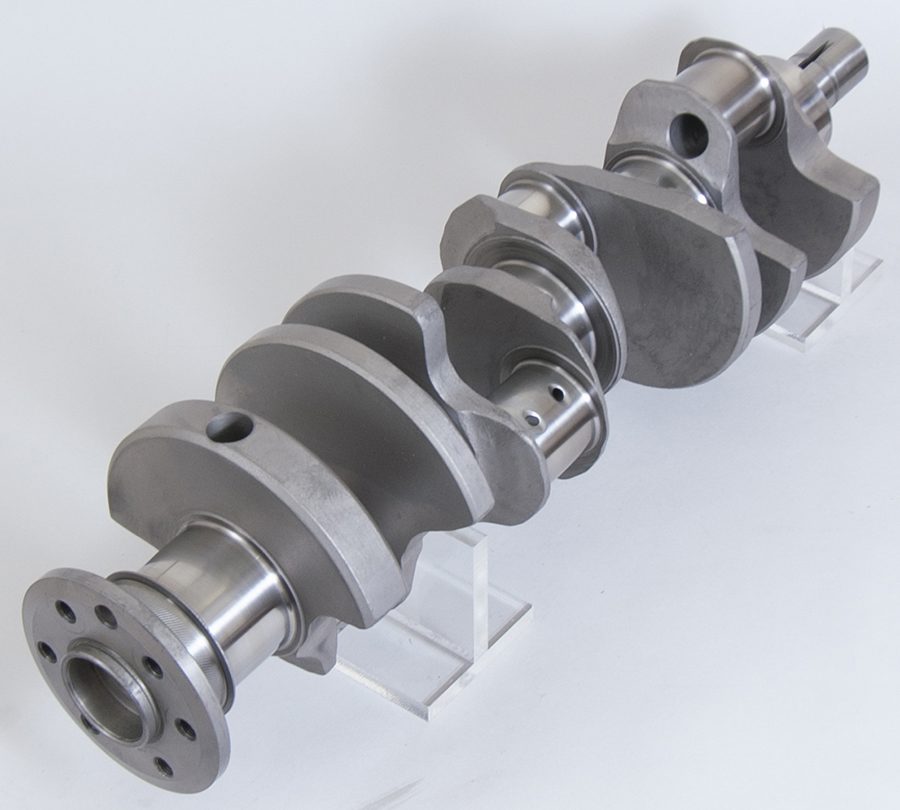

Forged 4340 Steel Crank - Chrysler 360.
Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Balance Type: Internal
Crankshaft Stroke: 3.580 in
Engine Stroke: 3.58
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.81 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.123 in
Pilot Bore Diameter: 0.964 in
Rear Seal Diameter: call
Rod Journal Width: 1.874 in
Rod Journal: 2.125 in
Snout Diameter: 1.53 in
Target Bobweight: 2050g
