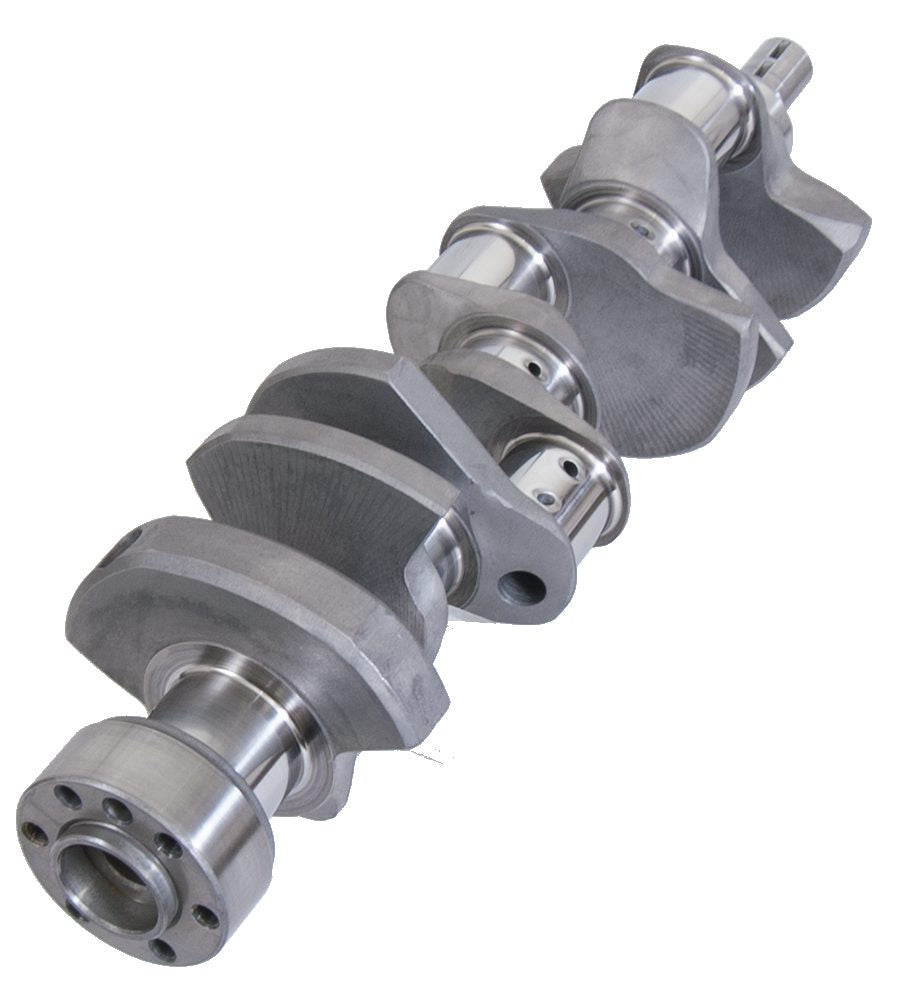

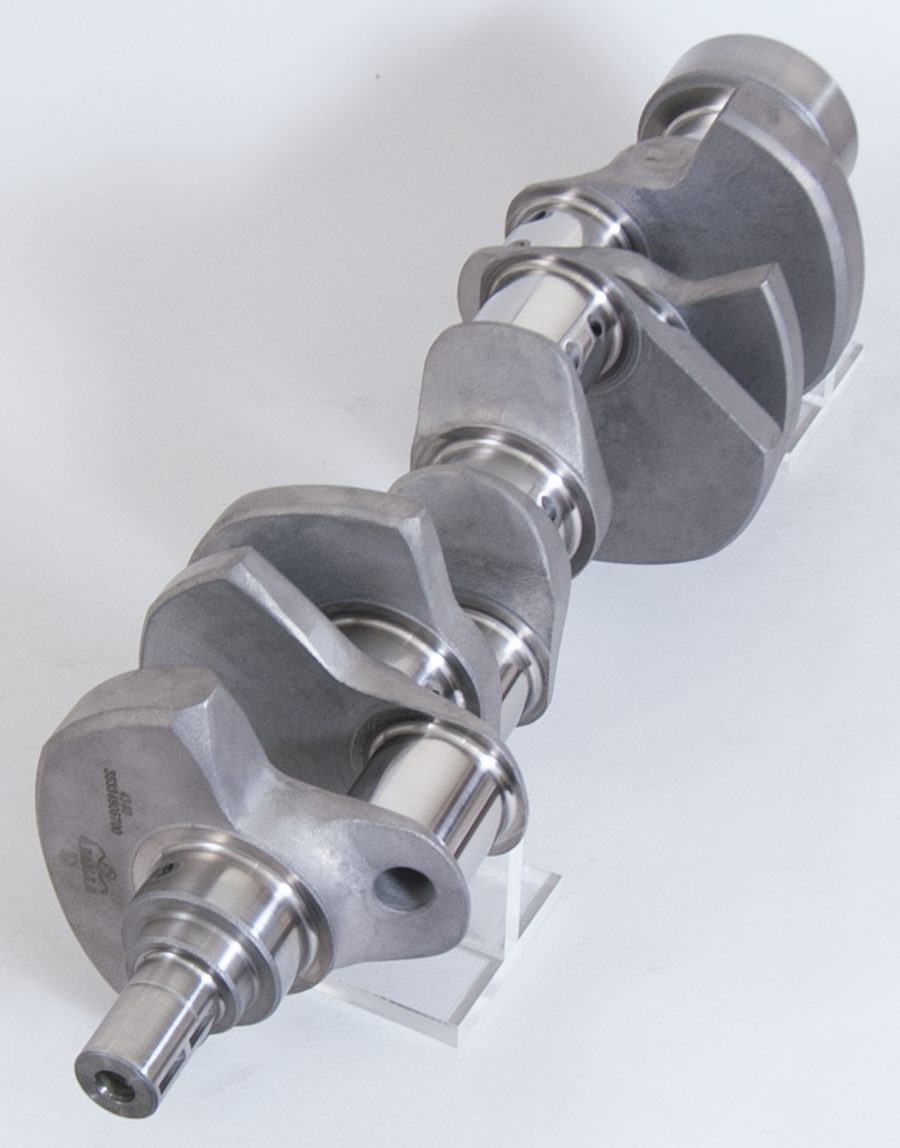

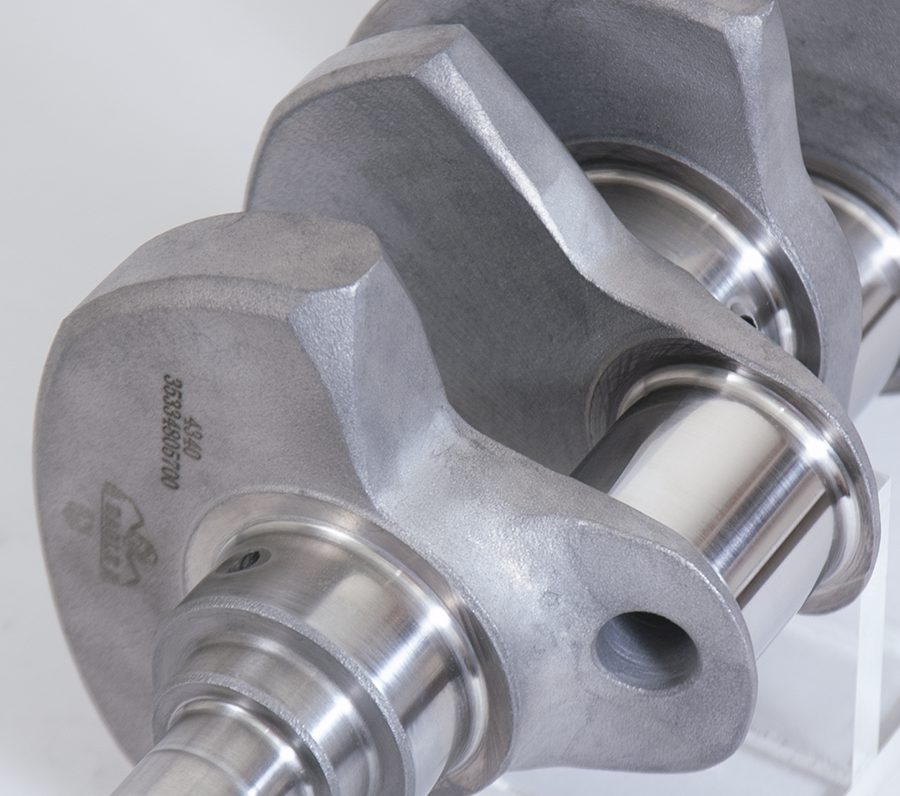

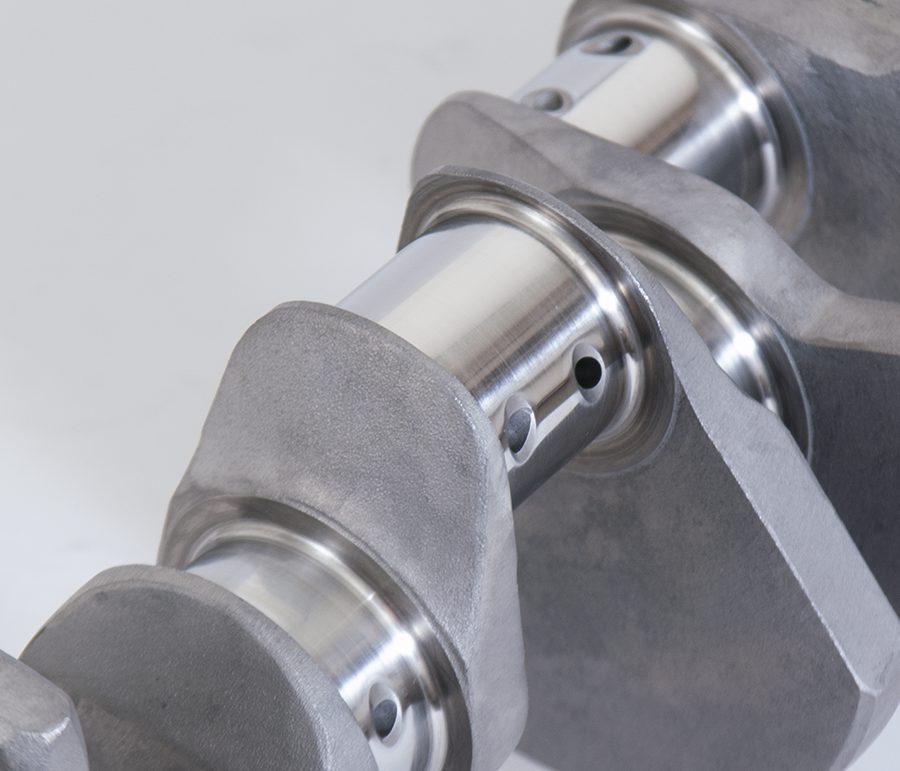

Eagle 435334805700 - Chevrolet 305/350 1pc Rear Seal 3.480in Stroke Forged 4340 Steel Crankshaft

Eagle 435334805700 - Chevrolet 305/350 1pc Rear Seal 3.480in Stroke Forged 4340 Steel Crankshaft

Eagle | 435334805700
SKU: CFQW-435334805700
$983.99 USD
$1,050.99 USD $983.99 USD
Sale Sold out
Shipping calculated at checkout.

8 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle 435334805700 - Chevrolet 305/350 1pc Rear Seal 3.480in Stroke Forged 4340 Steel Crankshaft

Crankshaft - 3.480 in Stroke - Internal Balance - Forged Steel - 1-Piece Seal - Small Block Chevy - Each

Forged 4340 Steel Crank - Chevrolet 305/350, 1PC REAR SEAL.

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Balance Type: Internal
Crankshaft Stroke: 3.480 in
Engine Stroke: 3.48
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.449 in
Material: Forged 4340 Steel
Minimum Rod Length: 5.700 in
Pilot Bore Diameter: 1.094 in
Rear Seal Diameter: call
Rod Journal Diameter: 2.1
Rod Journal Width: 1.900 in
Rod Journal: 2.1 in.
Snout Diameter: 1.245 in
Target Bobweight: 1855g
