Eagle - 435135006200
4340 CRANK Ford 351W 3.500"

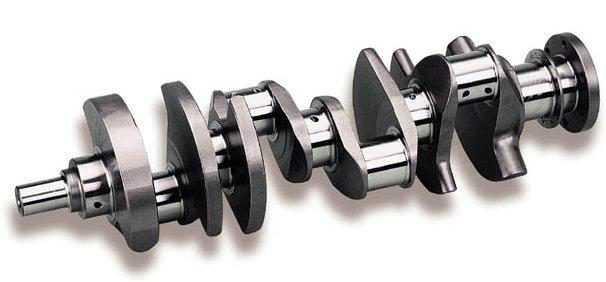

Forged 4340 Steel Crank - Ford 351W, 3.500" Stroke, 2.100" Rod JournalS, INTERNAL BALANCE.
Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Balance Type: Internal
Crankshaft Stroke: 3.500 in
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: Internal
Main Journal: 3.000 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.200 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Width: 1.900 in
Rod Journal: 2.1 in.
Snout Diameter: 1.375 in
Target Bobweight: 1900g
