Eagle - 4350350057FW
4340 CRANK CHEVY 350 3.500" STROKE

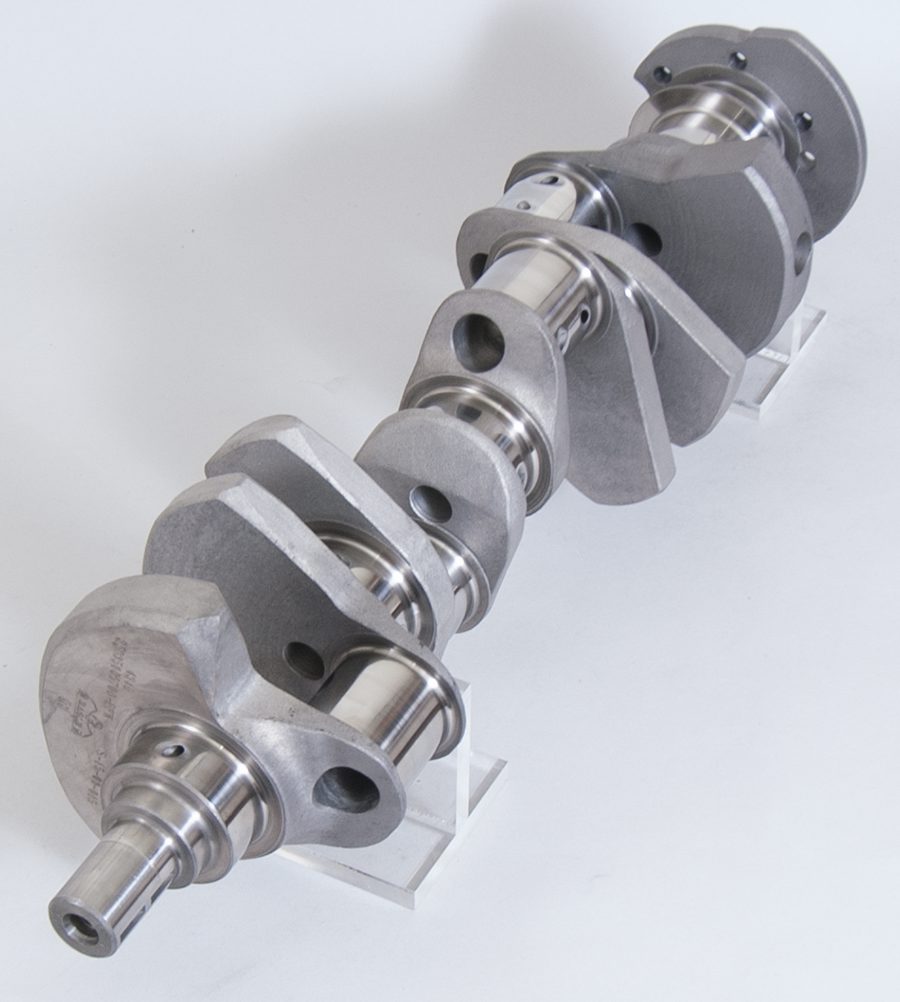

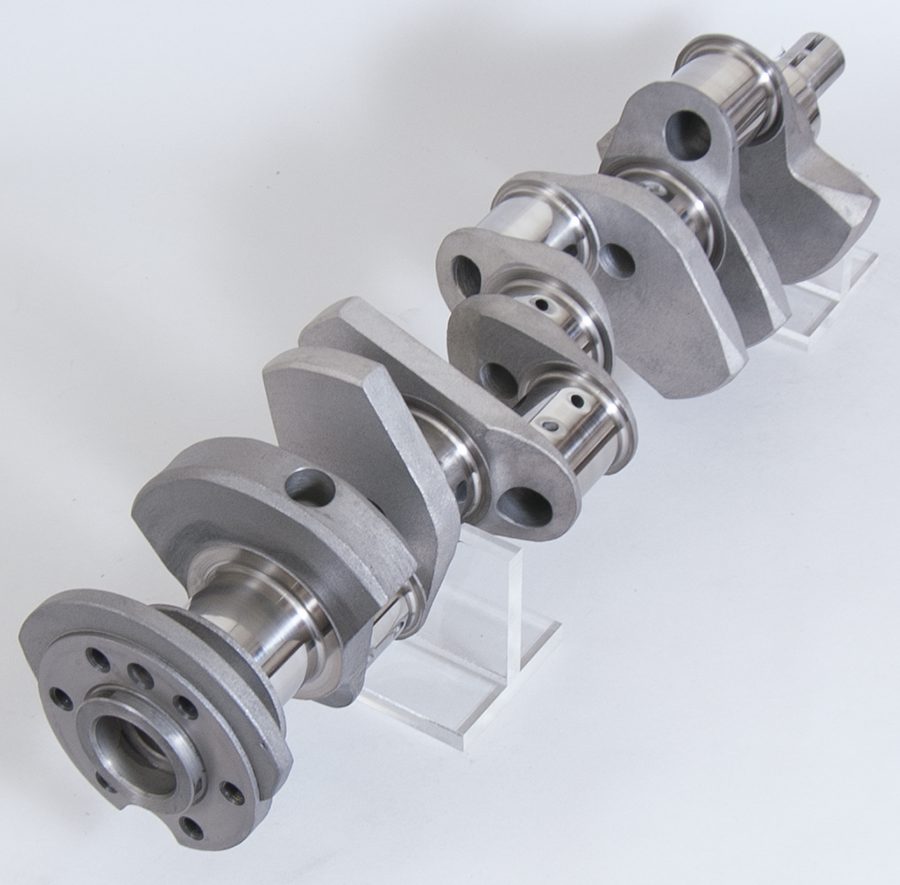

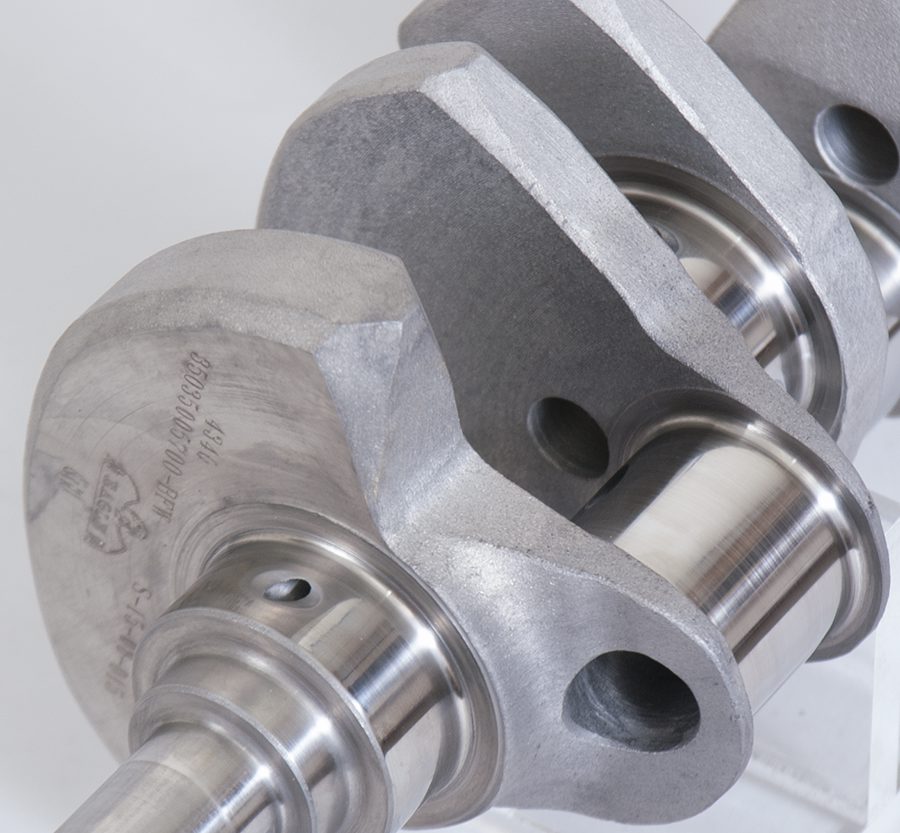

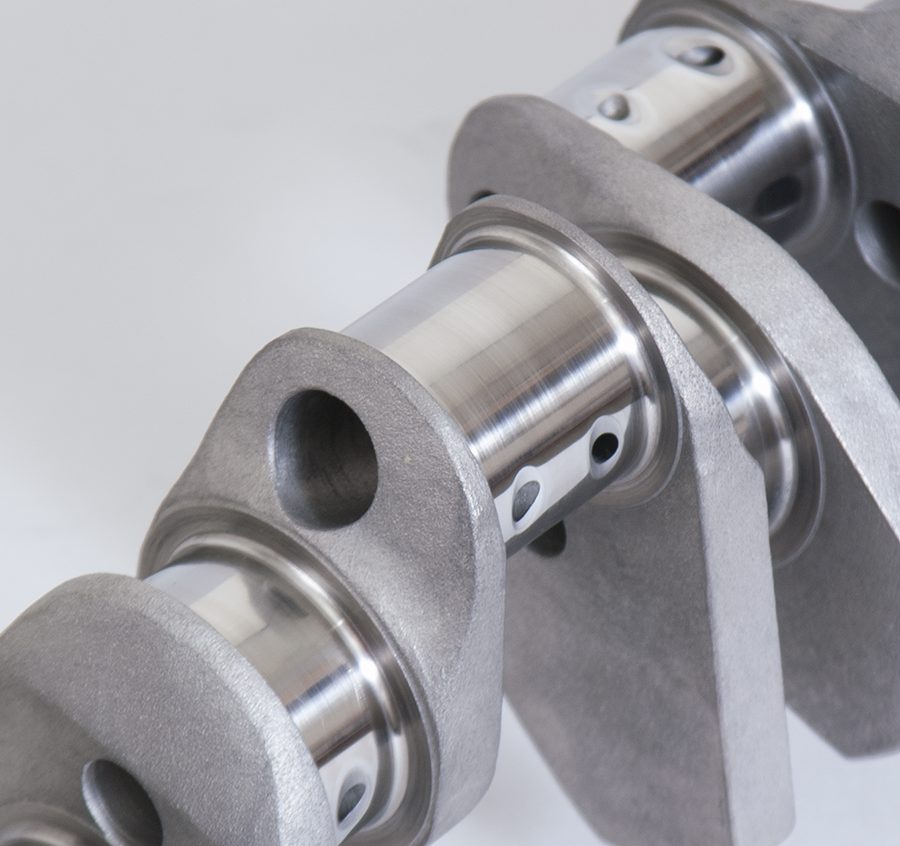

Forged 4340 FEATHERWEIGHT Steel Crank - CHEVROLET 305/350, 3.500" STROKE.
Eagle featherweight forged 4340 steel Cranks feature a non-twist forging, lightweight counterweight design to reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for restricted-class competition use. Lightweight rods and pistons required for ease in balancing.
Balance Type: Internal
Crankshaft Stroke: 3.500 in
Engine Stroke: 3.5
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.449 in
Material: Forged 4340 Steel
Minimum Rod Length: 5.700 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Diameter: 2.1
Rod Journal Width: 1.900 in
Rod Journal: 2.1 in.
Snout Diameter: 1.245 in
Target Bobweight: 1670g
