Eagle - 4350335057LA
CHEVY 305/350 LIGHTWEIGHT

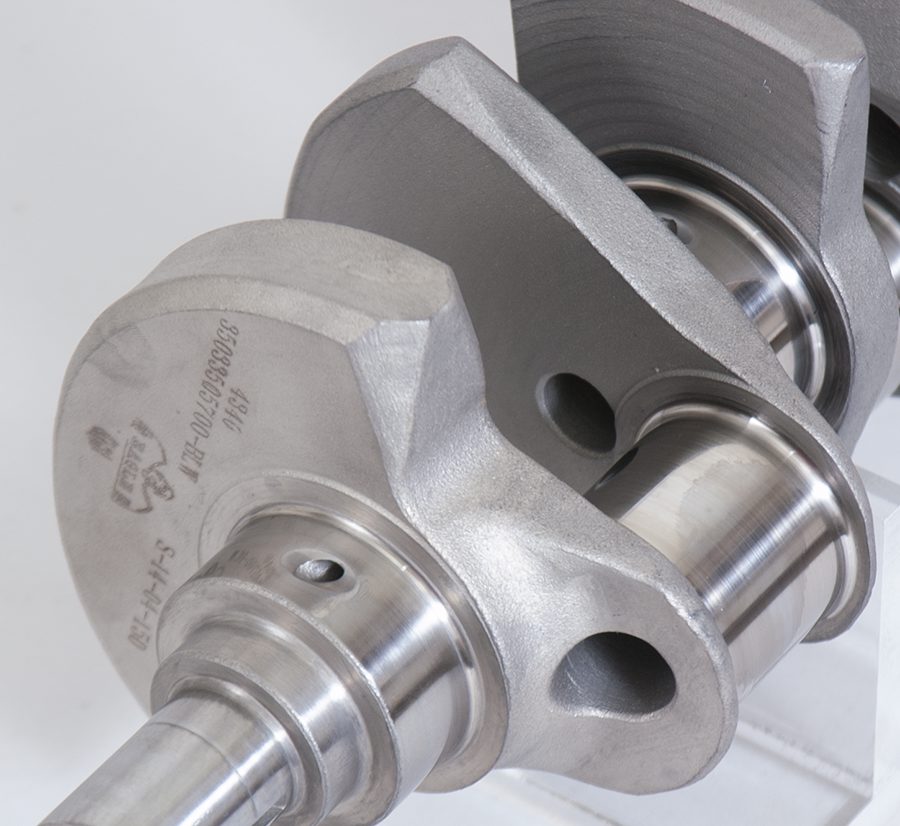

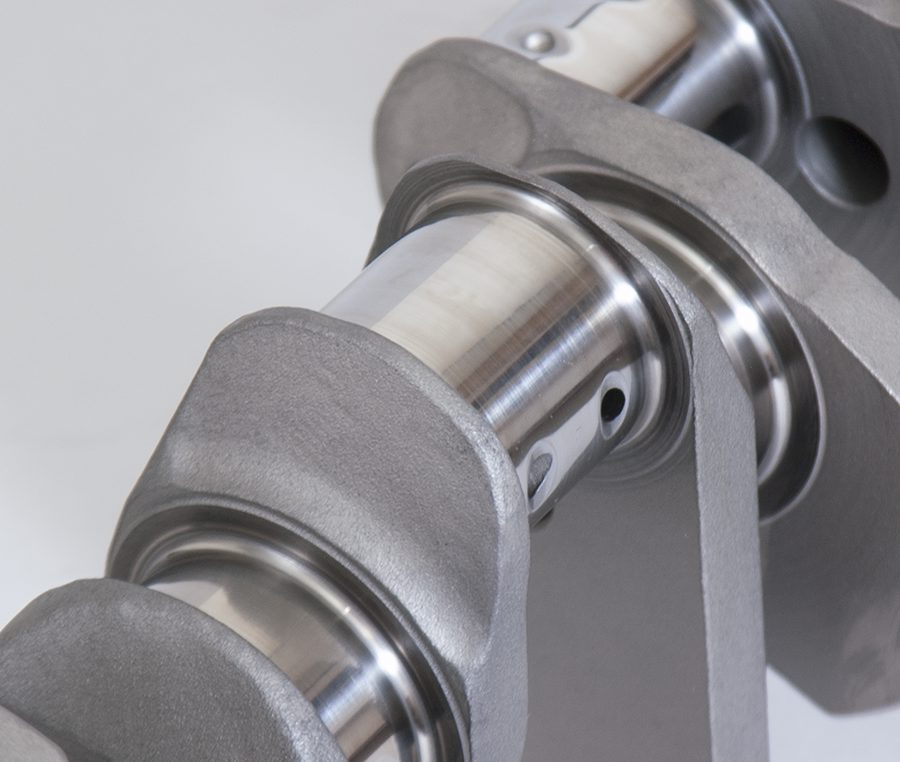

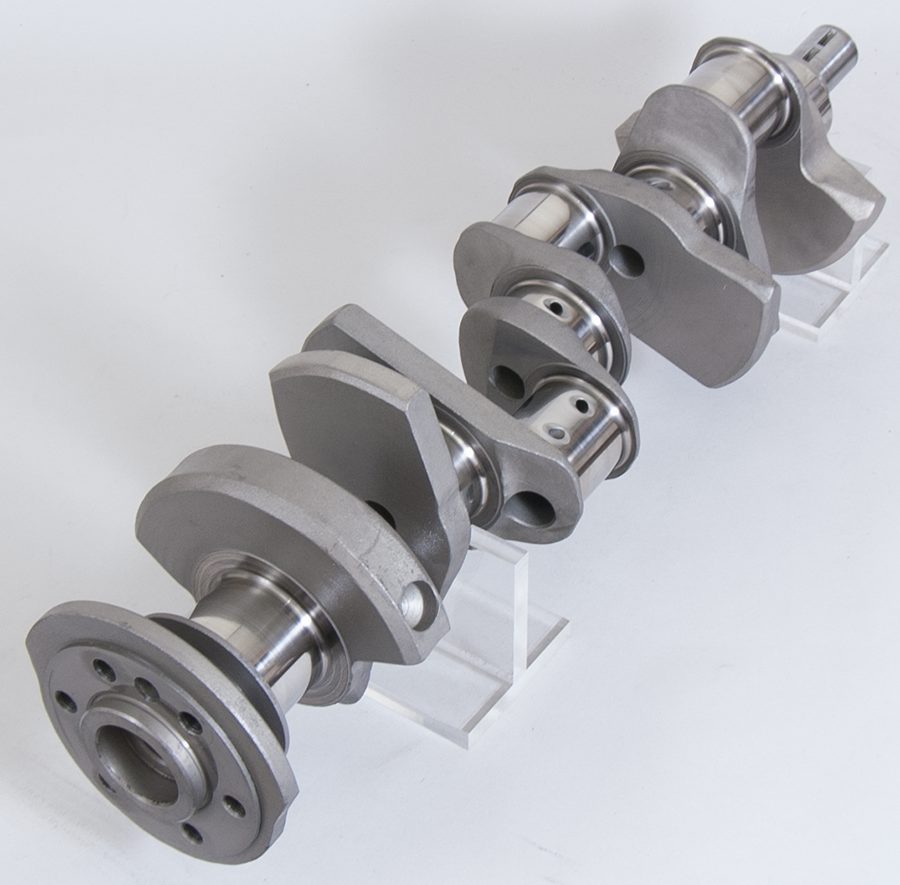

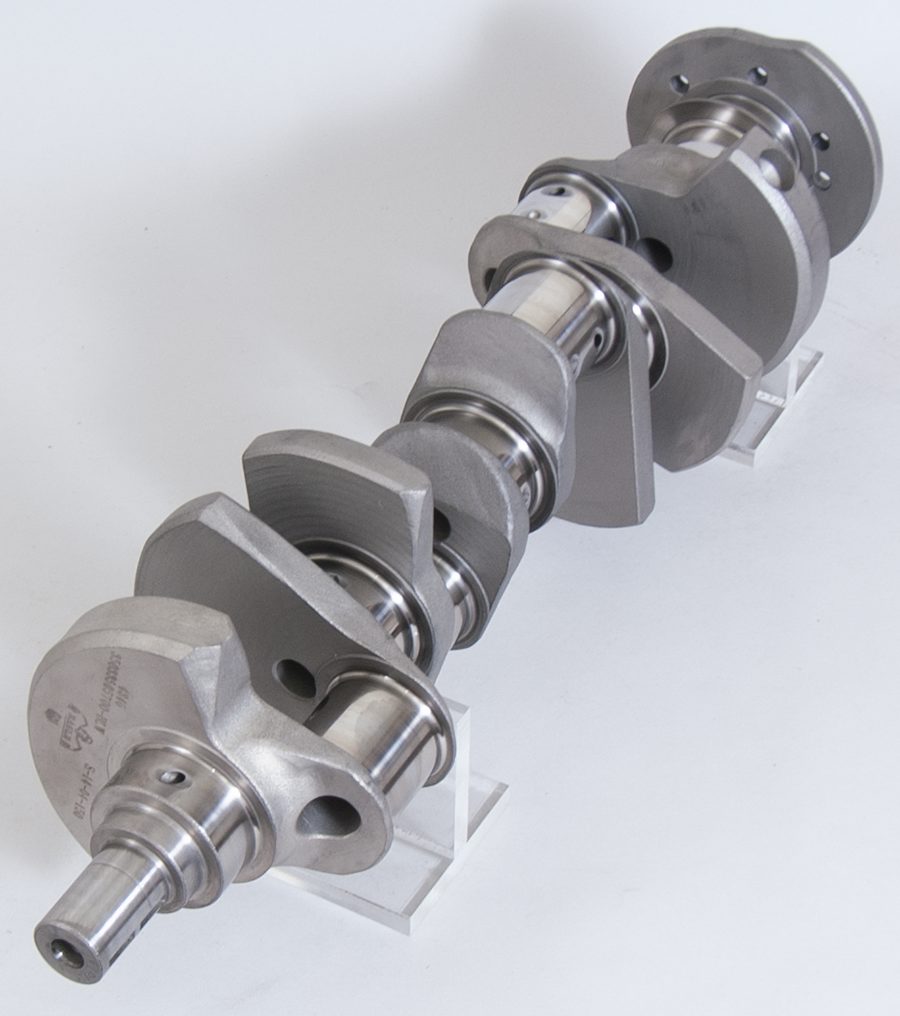

Forged 4340 LIGHTWEIGHT Steel Crank - CHEVROLET 305/350, 3.350" STROKE.
Eagle lightweight forged 4340 steel cranks feature a non-twist forging, lightweight counterweight design to reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for restricted-class competition use.
Balance Type: Internal
Crankshaft Stroke: 3.350 in
Engine Stroke: 3.35
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.449 in
Material: Forged 4340 Steel
Minimum Rod Length: 5.700 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Diameter: 2.1
Rod Journal Width: 1.900 in
Rod Journal: 2.1 in.
Snout Diameter: 1.245 in
Target Bobweight: 1820g
