Eagle - 4349400060LA
4340 CRANK SBC 50 LB 2.00 Rod PIN

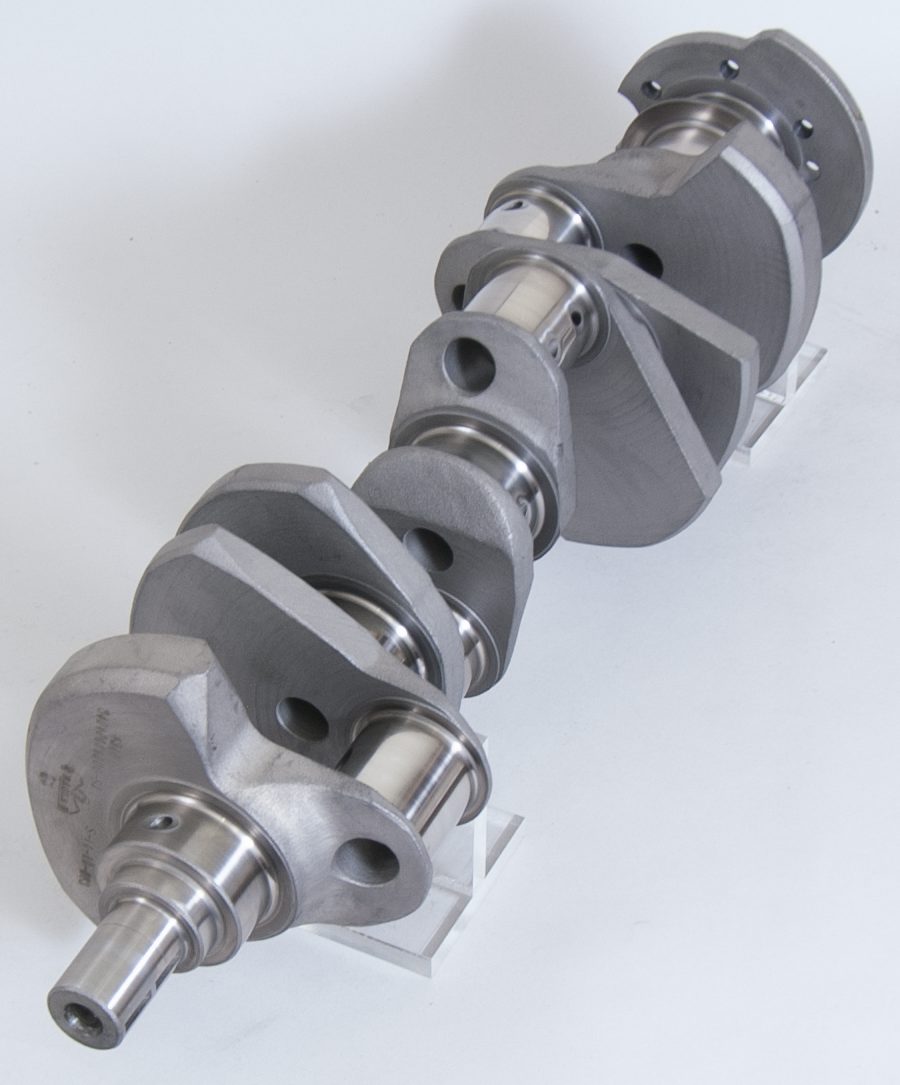

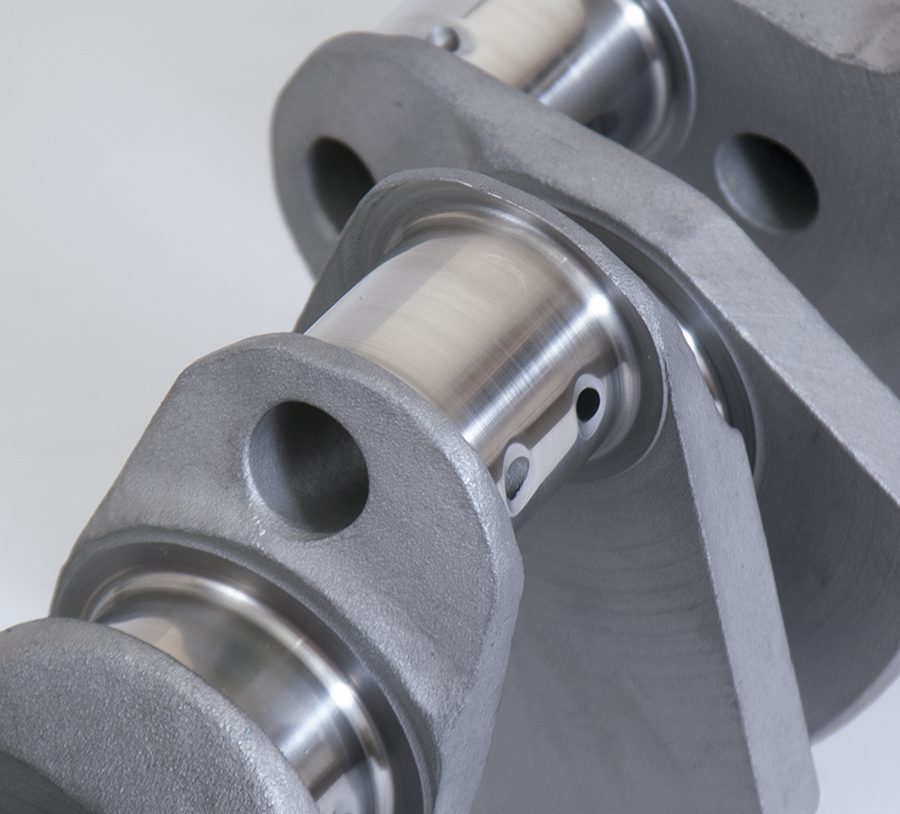

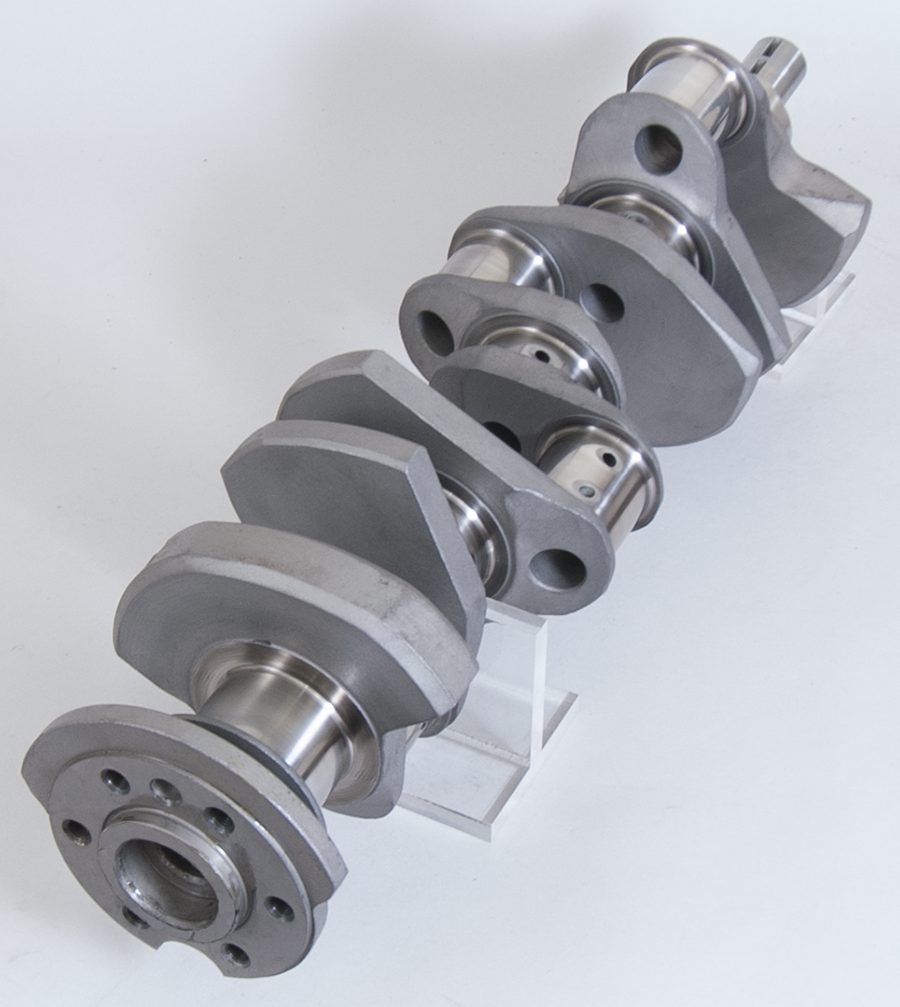

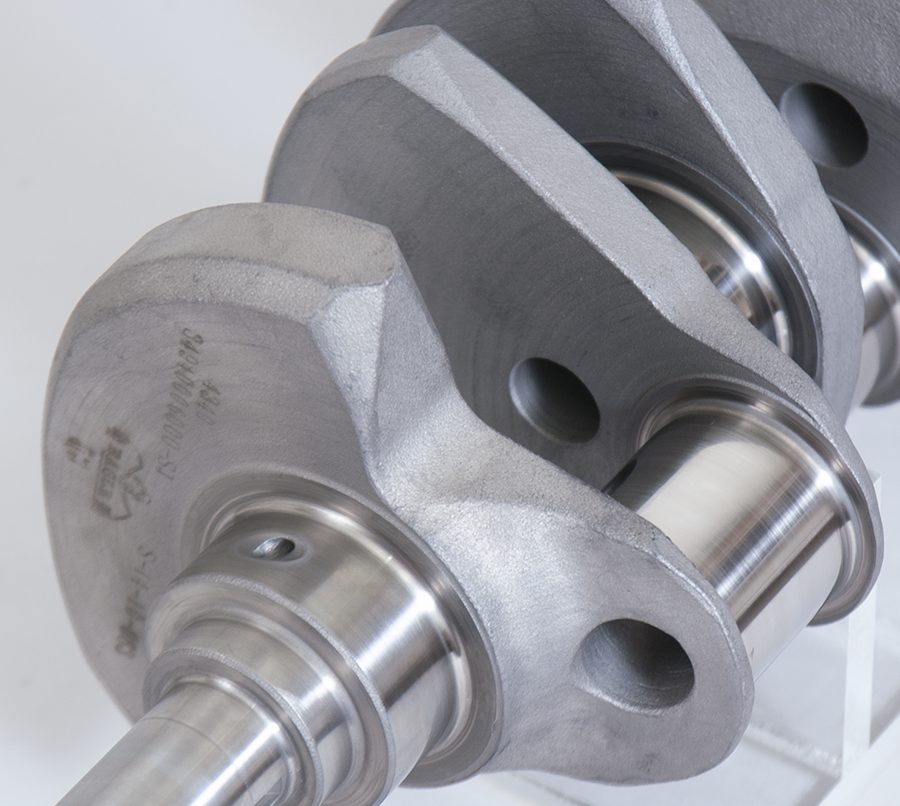

Forged 4340 LIGHTWEIGHT Steel Crank - CHEVROLET 305/350, 4.000" STROKE, 2.000" ROD JOURNALS.
Eagle lightweight forged 4340 steel Cranks feature a non-twist forging, lightweight counterweight design to reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for restricted-class competition use.
Balance Type: Internal
Crankshaft Stroke: 4.000 in
Engine Stroke: 4
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.449 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.000 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Diameter: 2
Rod Journal Width: 1.900 in
Rod Journal: 2 in
Snout Diameter: 1.245 in
Target Bobweight: 1850g
