Eagle - 434640006100
Crankshaft - 4.000 in Stroke - Internal Balance - Forged Steel - 1-Piece Seal - GM LS-Series - Each

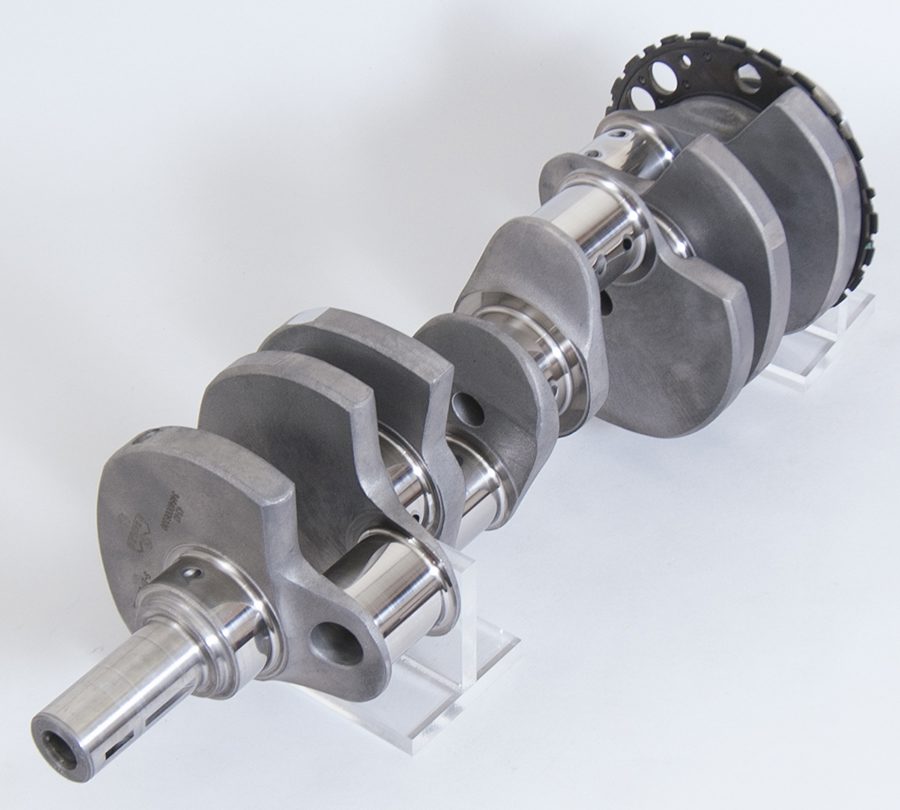

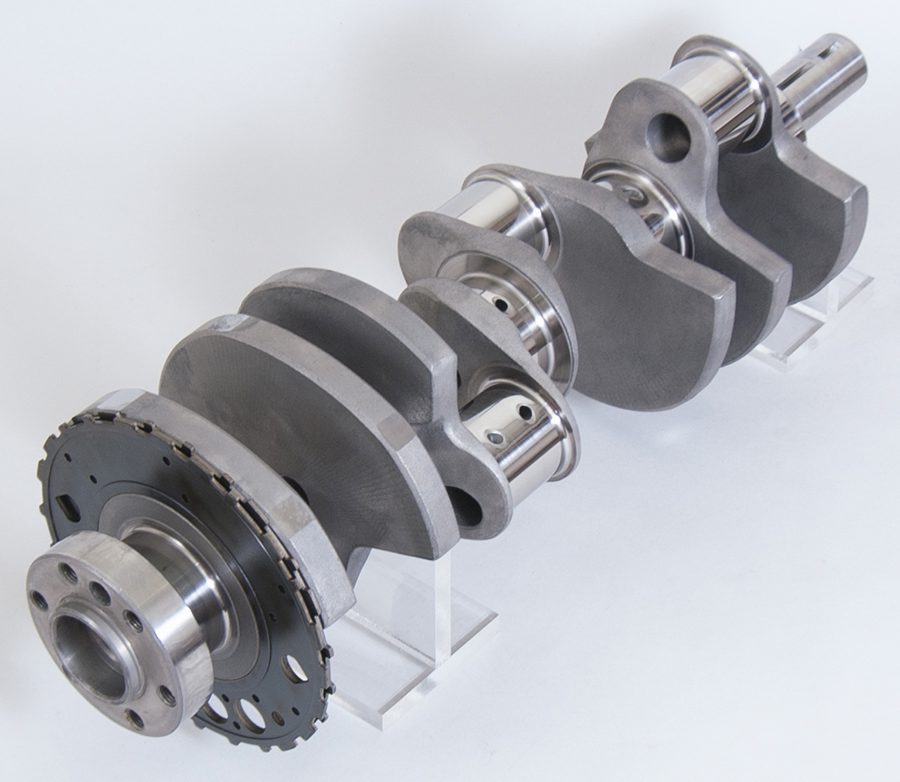

Forged 4340 Steel Crank - Chevrolet LS, 4.000" Stroke, 24 TOOTH RELUCTOR.
Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 24 tooth reluctor.
Balance Type: Internal
Crankshaft Stroke: 4.000 in
Engine Stroke: 4
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.559 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.125 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Diameter: 2.1
Rod Journal Width: 1.900 in
Rod Journal: 2.1 in.
Snout Diameter: 1.48 in
Target Bobweight: 1800g
