Eagle 428135435933 - Standard Forged Crankshaft 4340 Chromoly Steel
4340 CRANK 4.6L 281 3.543" STROKE

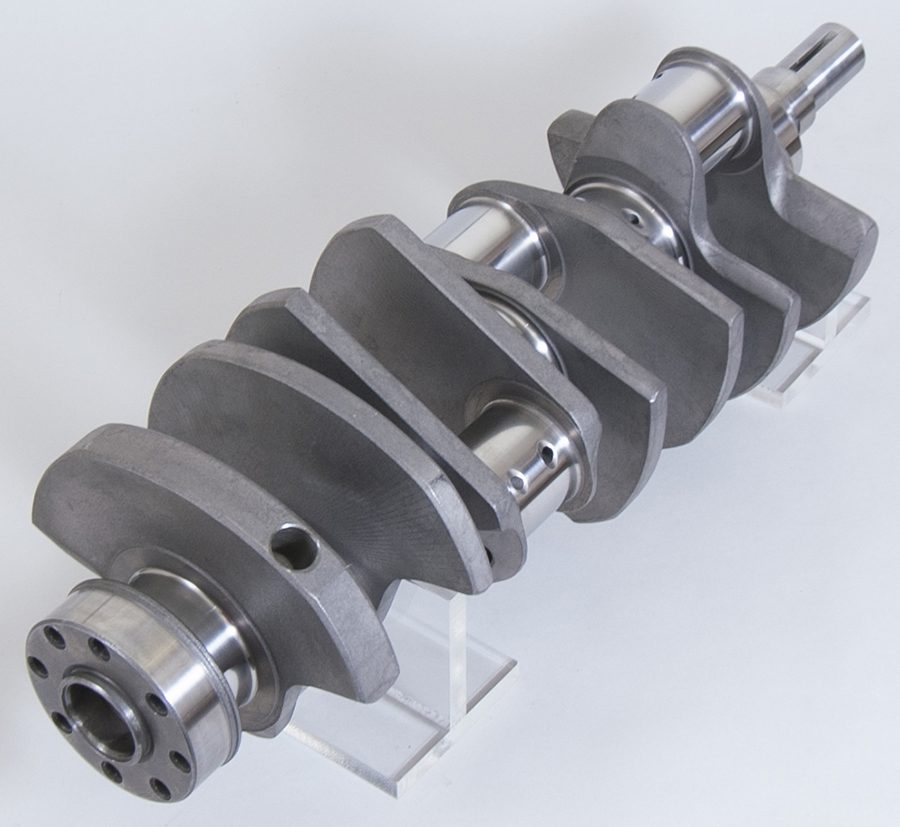

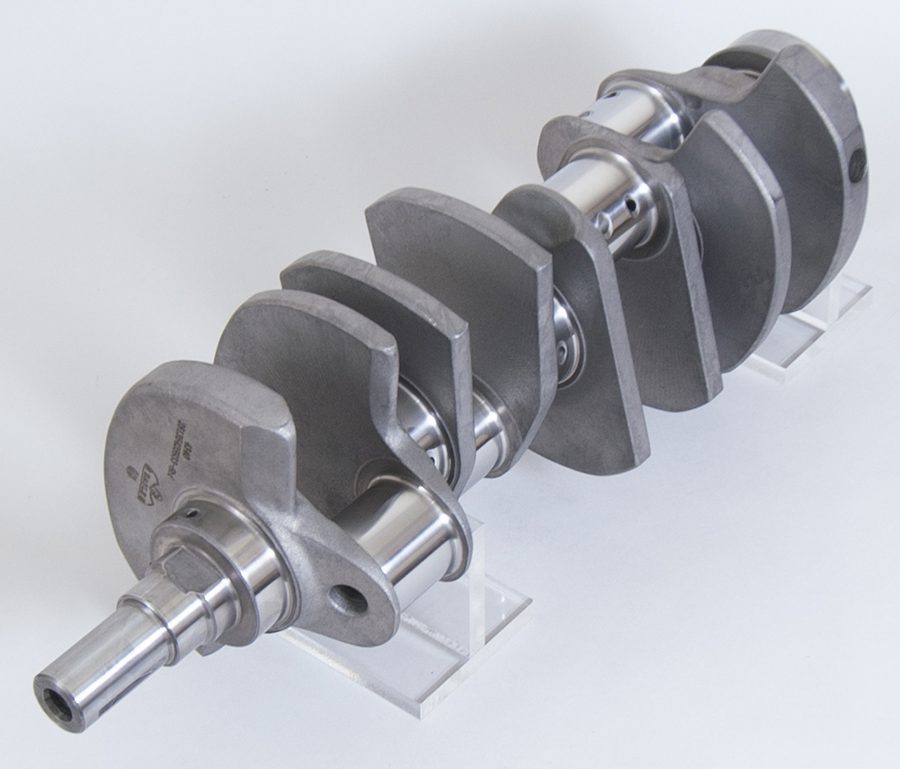

Forged 4340 Steel Crank - Ford 4.6L MODULAR V8.

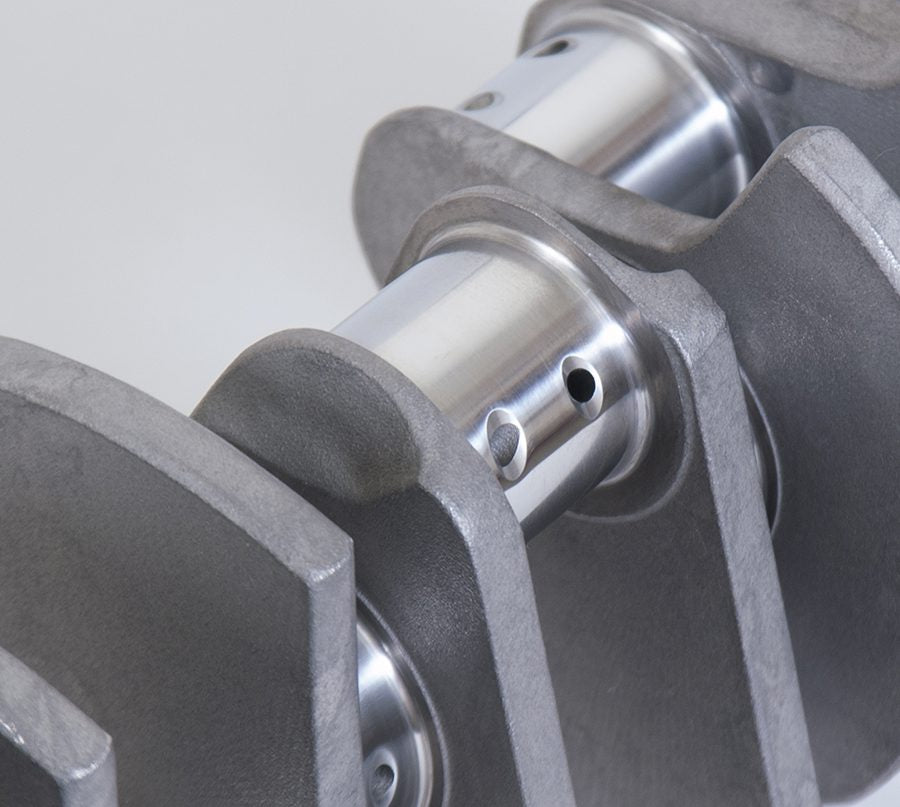

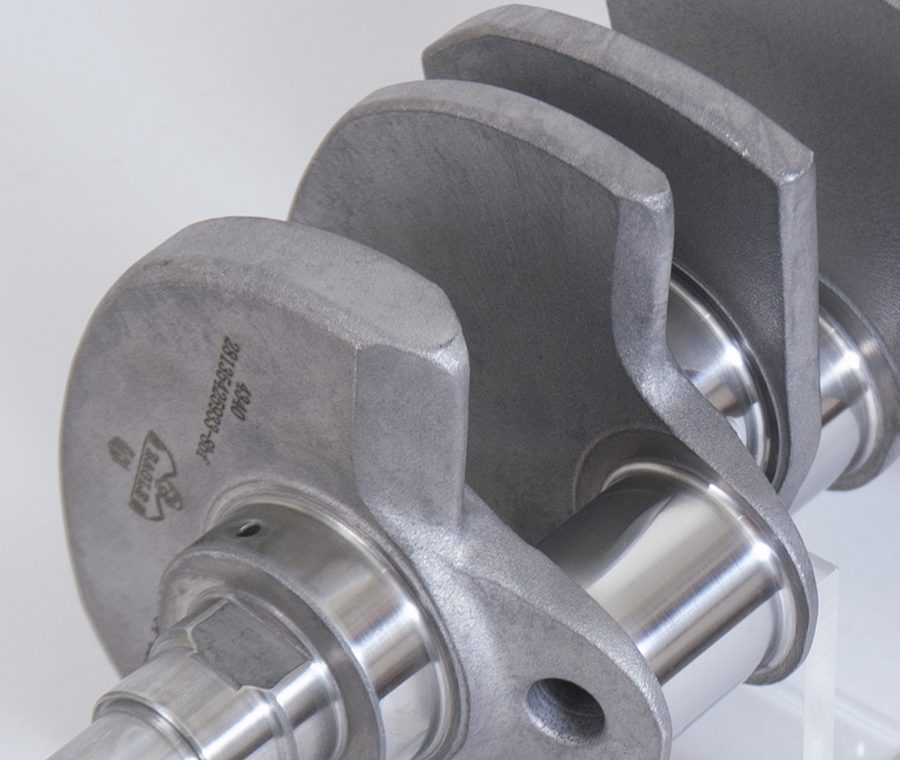

Eagle forged 4340 steel center-counterweighted Cranks feature a non-twist forging, center counterweights for added stability at high RPM and high-power applications. 125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Balance Type: Internal
Crankshaft Stroke: 3.543 in
Engine Stroke: 3.543
Flywheel Bolt Count: 8
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.657 in
Material: Forged 4340 Steel
Minimum Rod Length: 5.933 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Width: 1.900 in
Rod Journal: 2.086 in
Snout Diameter: call
Target Bobweight: 1600g
