Eagle 3K2036615470 - Honda K20/K24 4340 Billet Crankshaft
Eagle 3K2036615470 - Honda K20/K24 4340 Billet Crankshaft
SKU: CFQW-3K2036615470
Regular price
$1,652.99 USD
Regular price
$1,860.99 USD
Sale price
$1,652.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Eagle 3K2036615470 - Honda K20/K24 4340 Billet Crankshaft
4340 BILLET CRANK HONDA K20/24

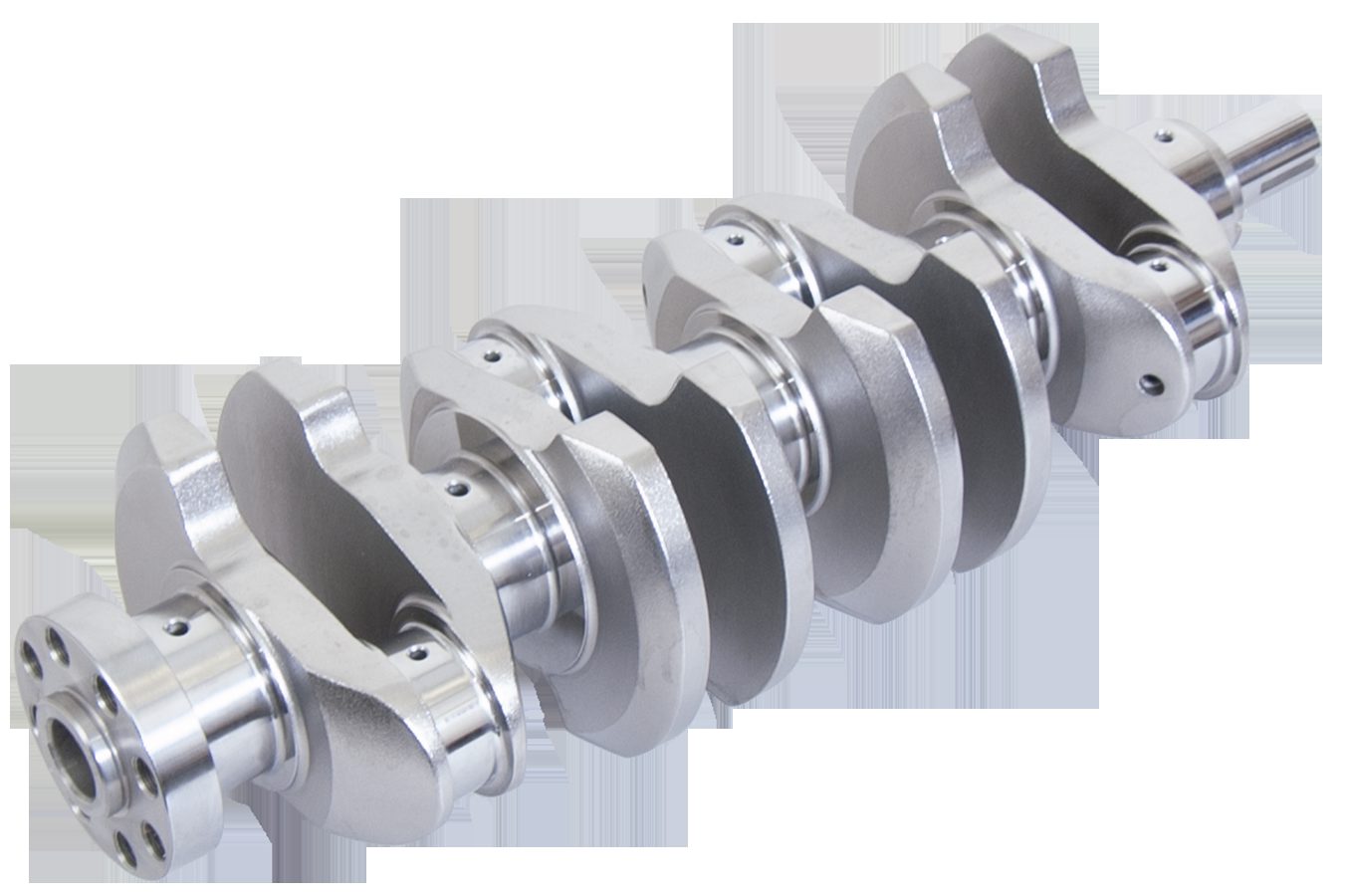

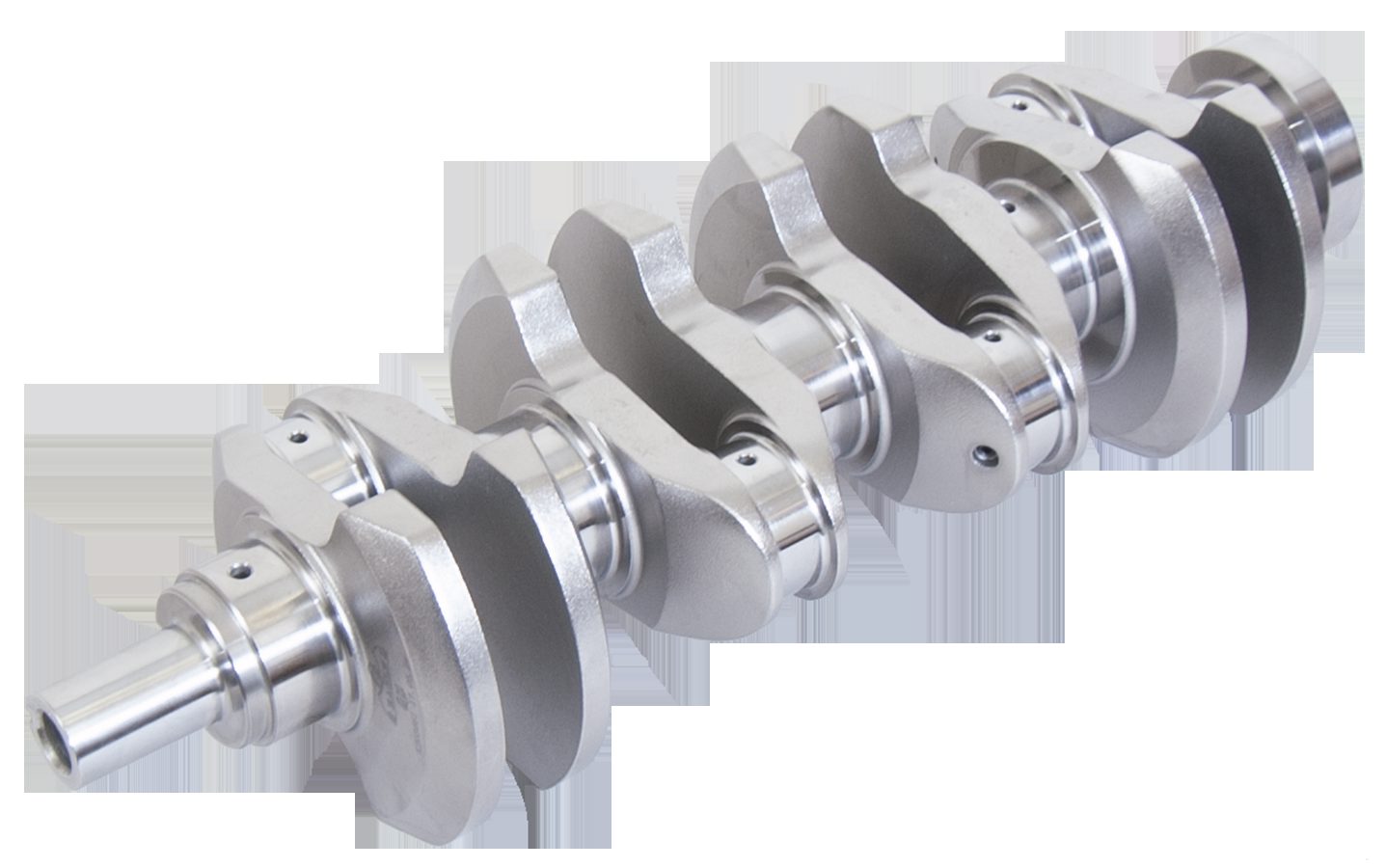

Billet 4340 Steel Crank - HONDA K20, 3.661" Stroke.

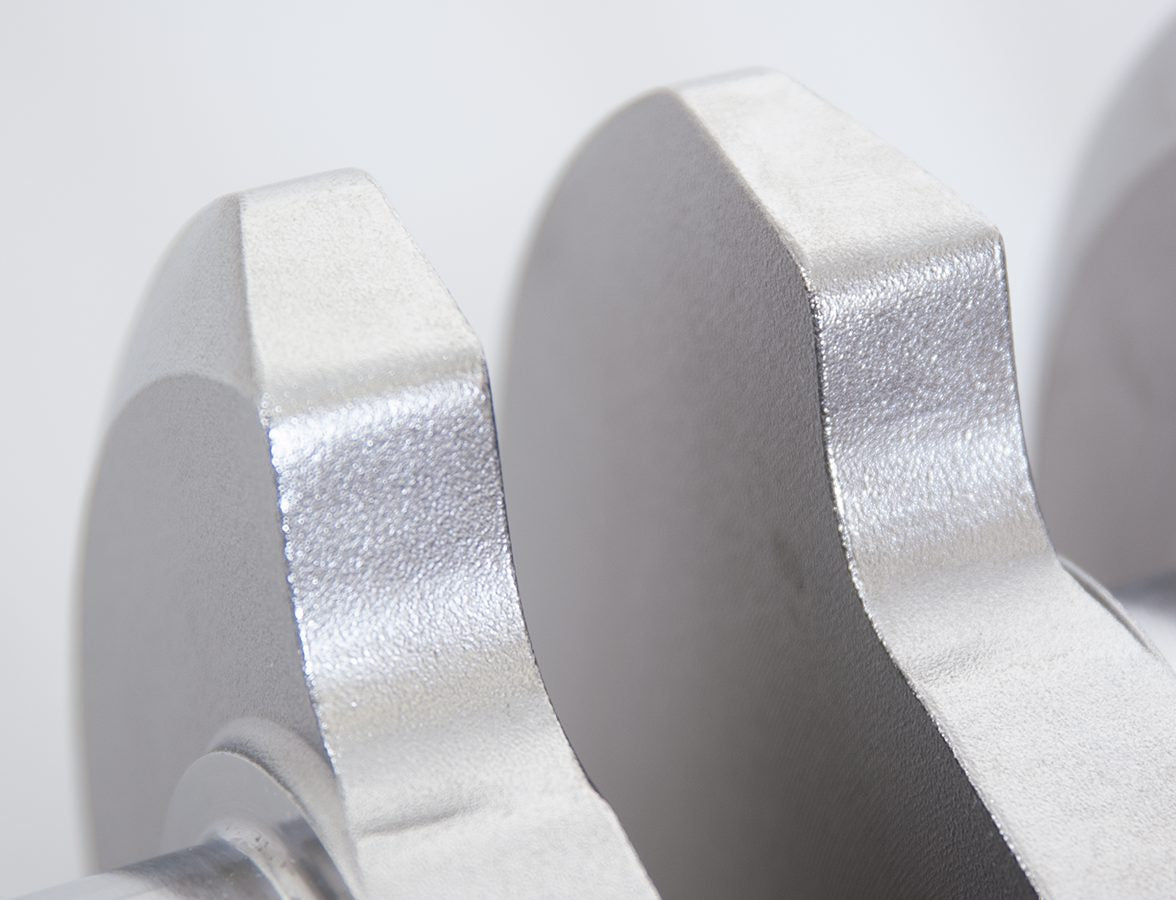

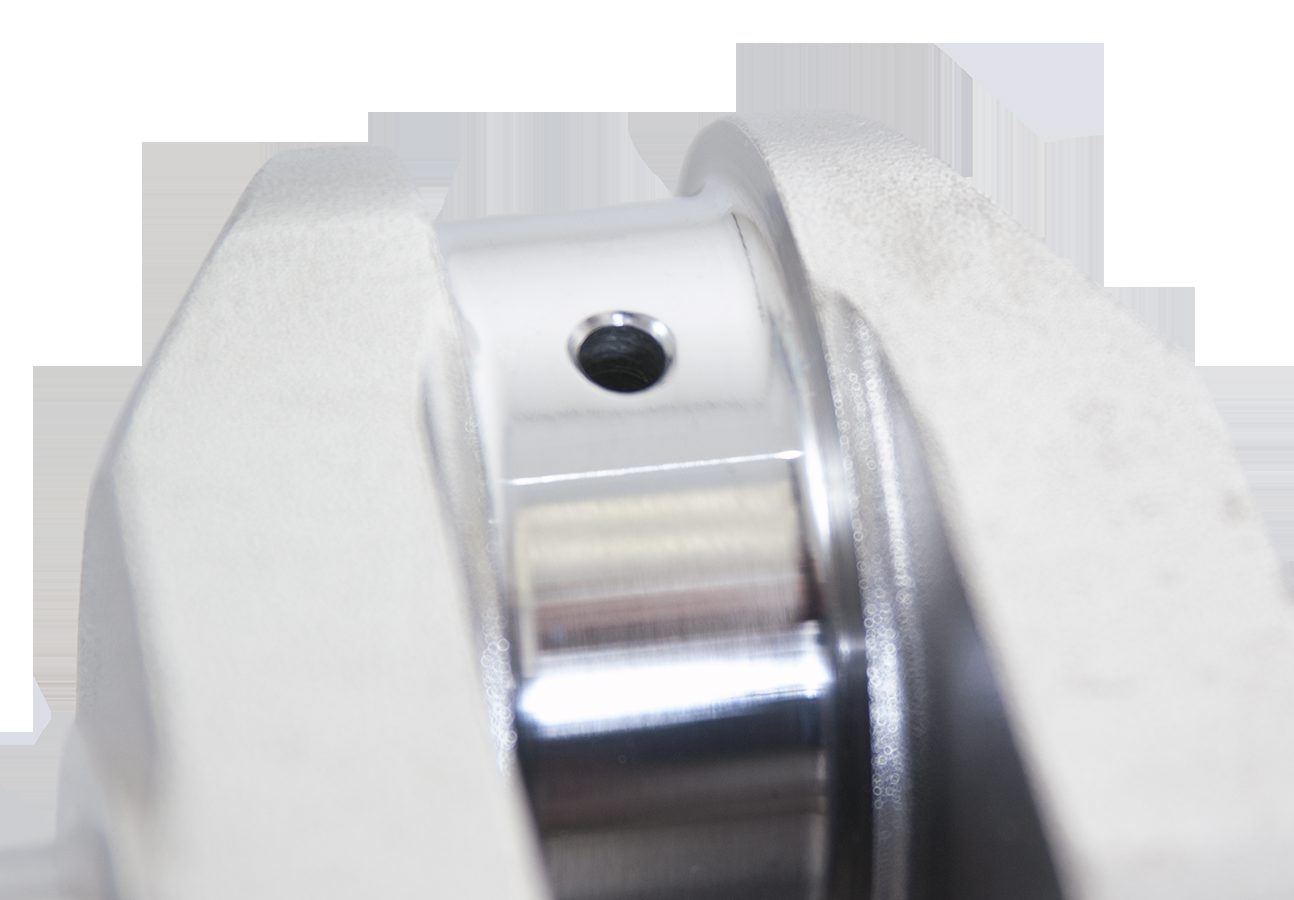

Eagle Billet 4340 steel crankshafts feature .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished.
Balance Type: Internal
Crankshaft Stroke: 3.661 in
Engine Stroke: 3.661
Flywheel Bolt Count: 8
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.165 in
Material: Billet 4340 Steel
Minimum Rod Length: 5.47 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Width: 0.794 in
Rod Journal: 1.889 in
Snout Diameter: call
