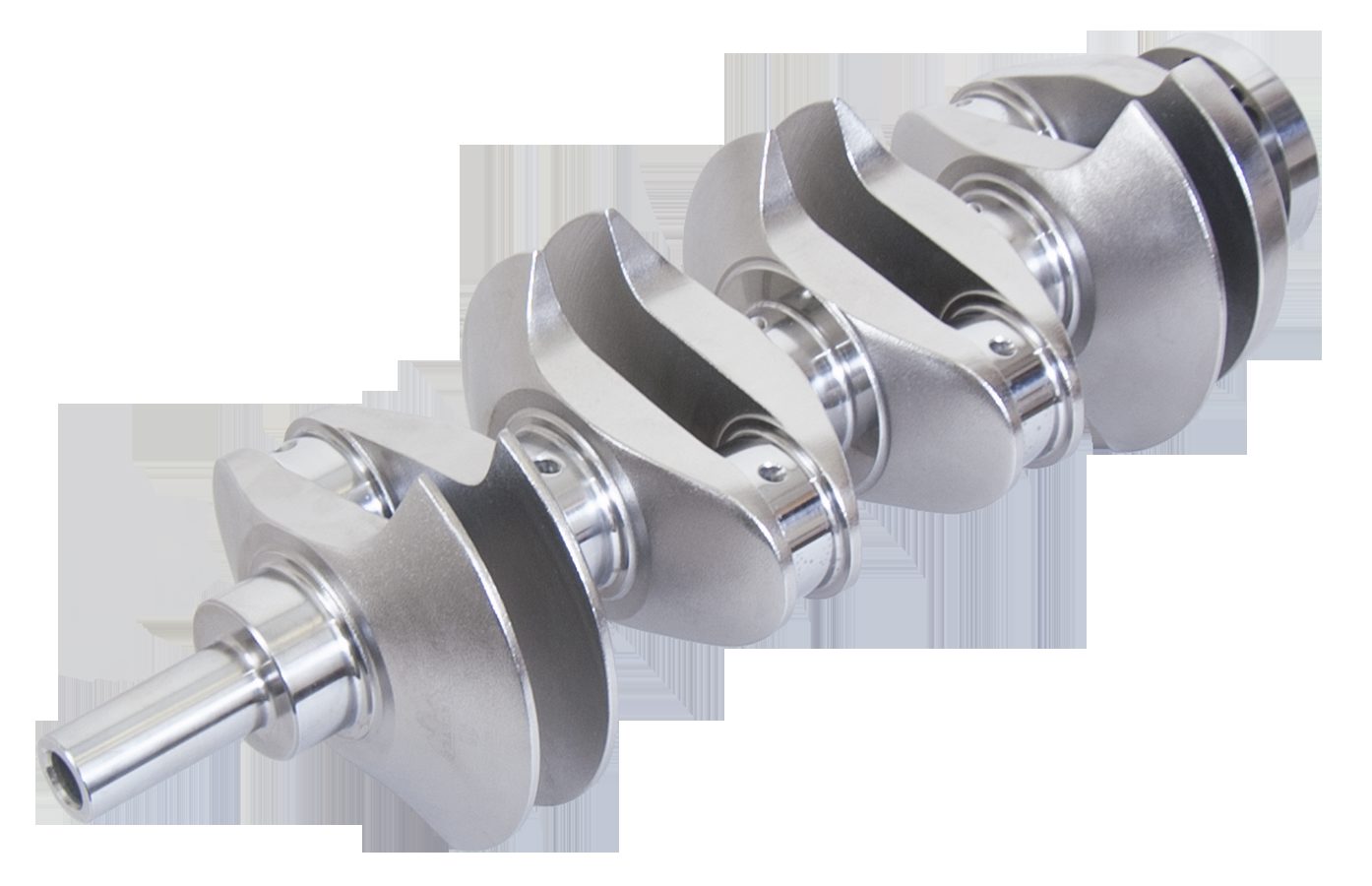

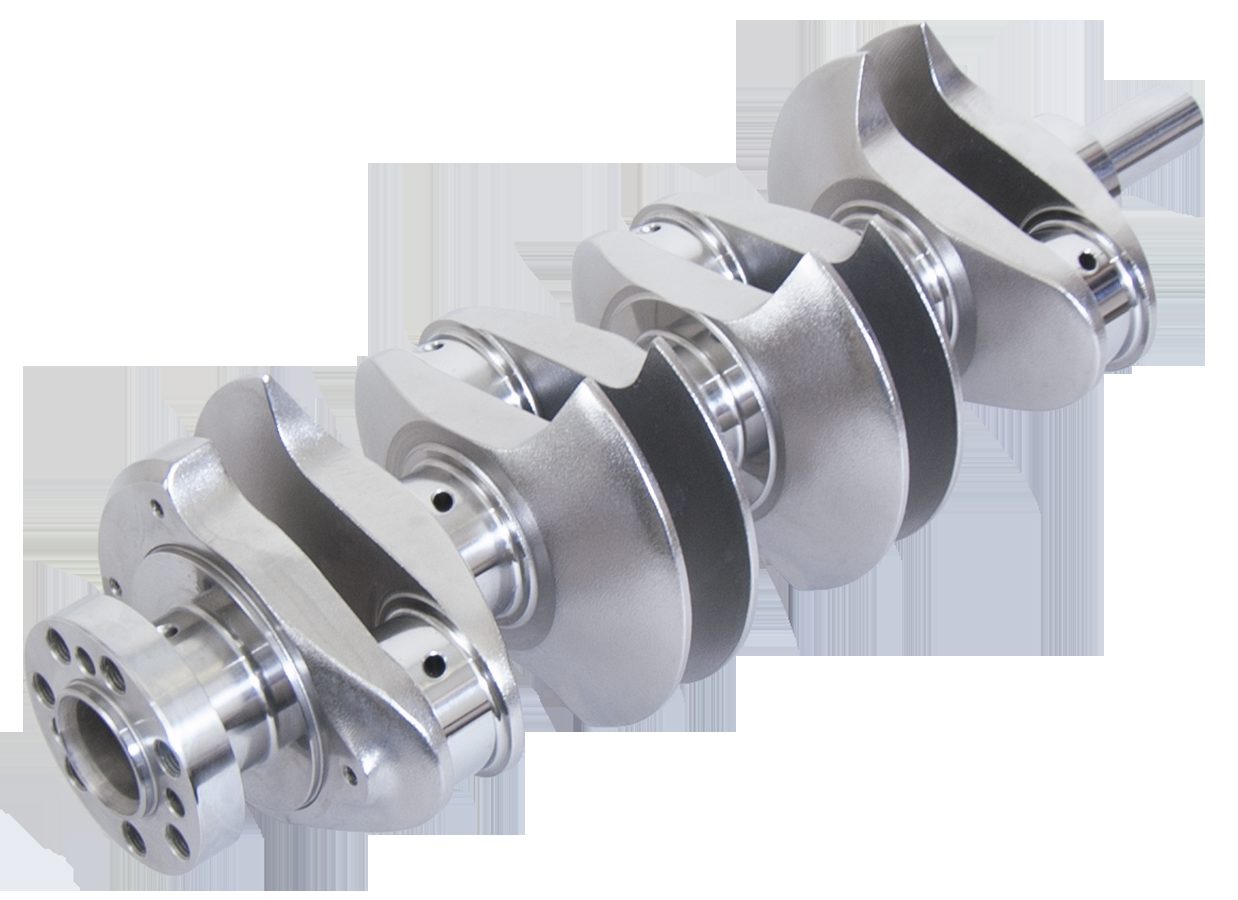

Eagle 34B137015659 - Mitsubishi 4B11T 4340 Billet Crankshaft

Eagle 34B137015659 - Mitsubishi 4B11T 4340 Billet Crankshaft

Eagle | 34B137015659
SKU: CFQW-34B137015659
$1,615.99 USD
$1,818.99 USD $1,615.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Eagle 34B137015659 - Mitsubishi 4B11T 4340 Billet Crankshaft

4340 BILLET CRANK MITSUBISHI 4B11T

Billet 4340 Steel Crank - MITSUBISHI 4B11, 3.701" Stroke.

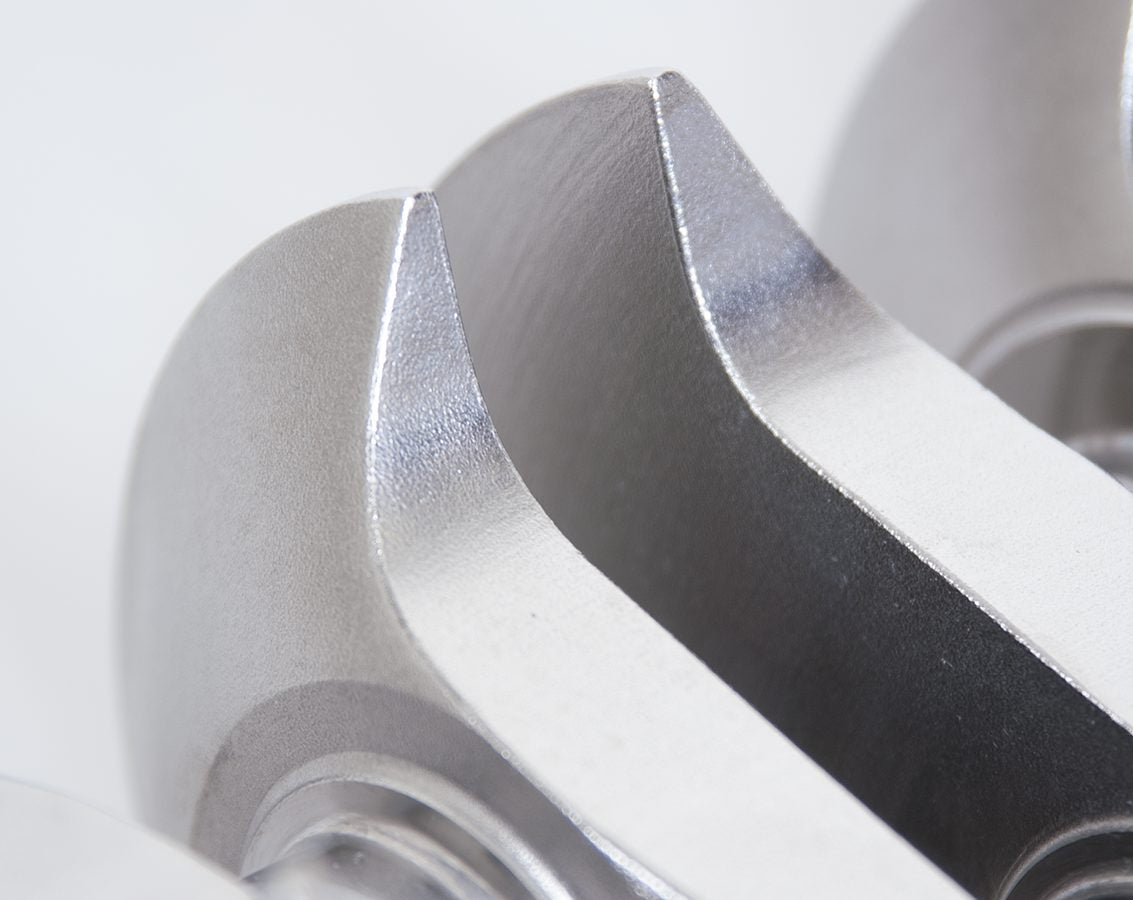

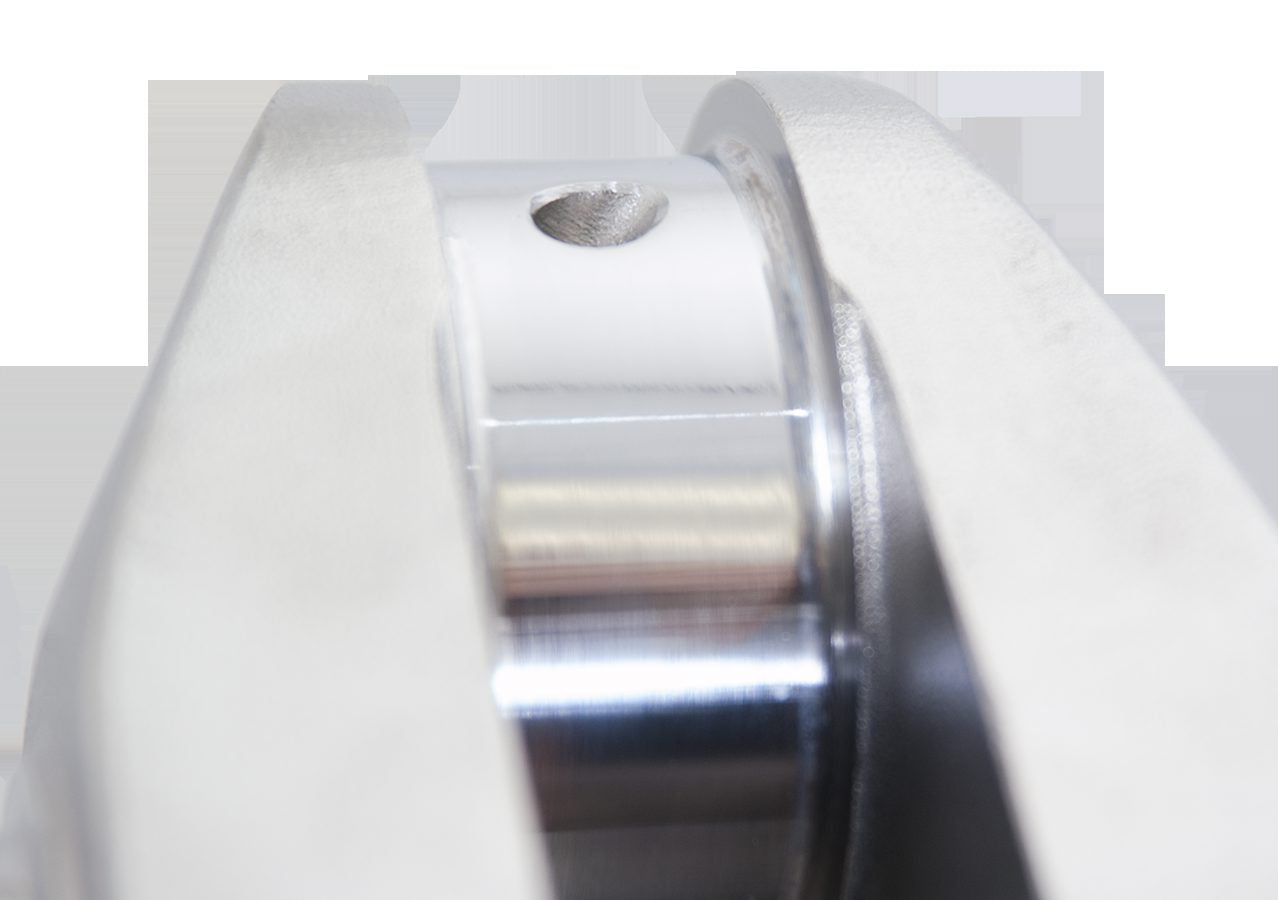

Eagle knife-edged Billet 4340 steel cranks feature knife-edged counterweights to dramatically reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Balance Type: Internal
Crankshaft Stroke: 3.700 in
Engine Stroke: 3.7
Flywheel Bolt Count: 8
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.0465 in
Material: Billet 4340 Steel
Minimum Rod Length: 5.659 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Width: 0.876 in
Rod Journal: 2.046 in
Snout Diameter: call
